Outer T-Connector D30 (Set)
Regular price:
€0.00
Part #:
099RV3090LS01
Pack Quantity:
10 sets
Product information "Outer T-Connector D30 (Set)"
Delivery Countries:
Worldwide
Description:

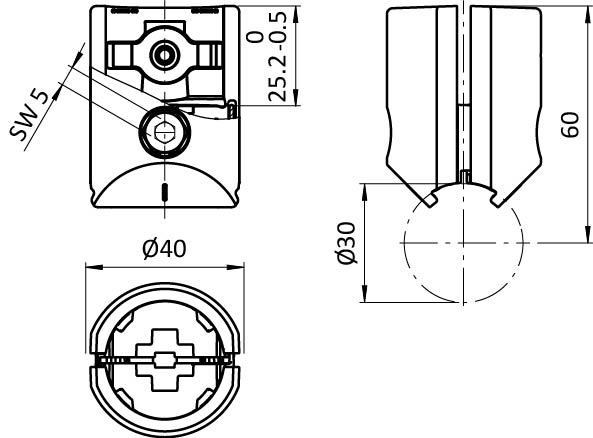

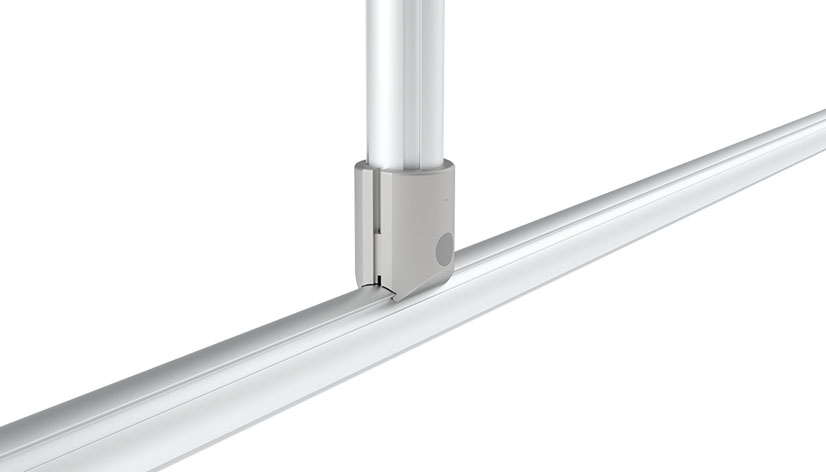

To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for outer T-connector D30,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28,
1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6
Surface:
Assembly set: Zinc plated
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Worldwide
Description:
To connect two tubular frame profiles with Ø 30 mm outer diameter at right angles
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for outer T-connector D30,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28,
1 self-locking nut DIN EN ISO 4032 (DIN 934) - M6
Surface:
Assembly set: Zinc plated
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
| Model: | For tubular frame profiles |
|---|---|
| Pack Quantity: | 10 sets |
| Customs Tariff Number Export: | 76169910 |
| Weight (g): | 94.6 |
| ECLASS 6.0: | 23360290 |
| ECLASS 7.0: | 23360290 |
| ECLASS 8.0: | 23360290 |
| ECLASS 9.0: | 23360290 |
| ECLASS 10.0: | 23360290 |
| ECLASS 11.0: | 23360290 |
| ECLASS 12.0: | 23360290 |
| ECLASS 13.0: | 23360290 |
| ERP Number: | 146441 |
| Zolltarifnummer: | 76169910990 |
