Outer Ball Connector D30 (Set)

Product information "Outer Ball Connector D30 (Set)"

Delivery Countries:
Worldwide

Description:

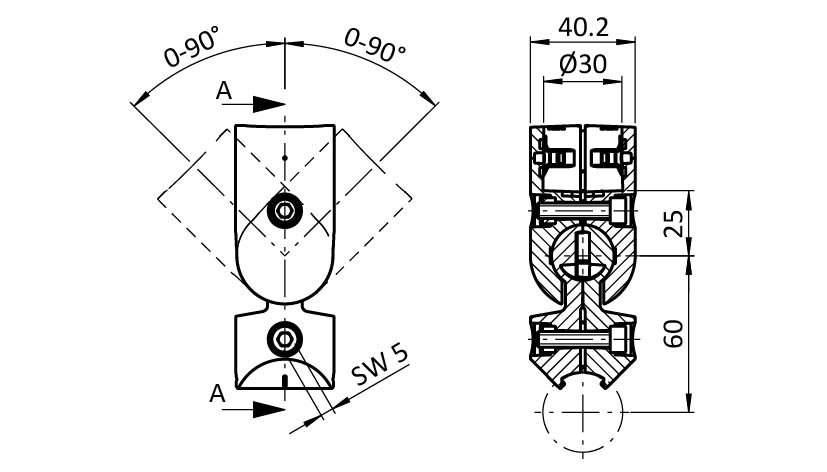

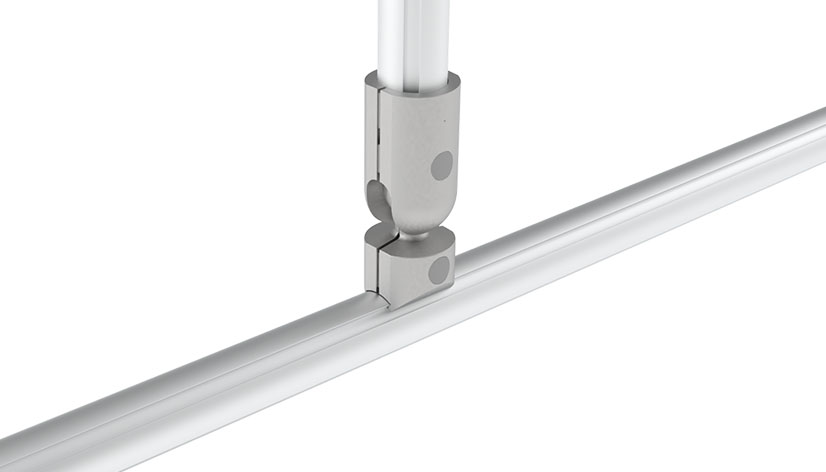

To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set

Material:
Connector: Aluminum die-cast
Assembly set: Steel

Set:
4 components for outer ball connector D30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6

Surface:
Assembly set: Zinc plated

Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
(ECLASS 6.0): 23360302
(ECLASS 7.0): 23360302
(ECLASS 8.0): 23360302
(ECLASS 9.0): 23360302
(ECLASS 10.0): 23360302
(ECLASS 11.0): 23360302
(ECLASS 12.0): 23360302
(ECLASS 13.0): 23360302
Customs Tariff Number Export: 76169910
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 205.0
Zolltarifnummer: 76169910990
pA Number: 146443

Variants

Product ID ESD
099RV30KS01 ESD electrostatical discharging
