Panel Clip D30

Product information "Panel Clip D30"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

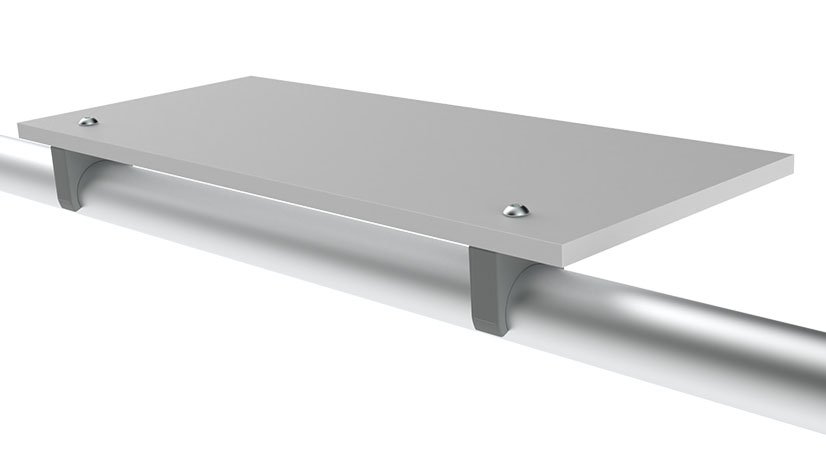

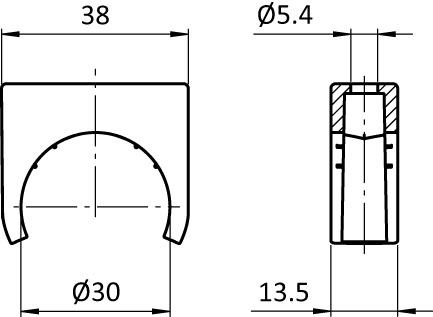

To temporarelly attach panels to tubes or tubular frame profiles with Ø 30 mm outer diameter;
For screwing the surface element a hexagon nut M5 can be inserted in the panel clip D30

Material:
Plastic PA, glass ball reinforced

Tip:
Compatible Hexagon Nuts see 4DIN934M5M
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 39269097
Model: For tubular frame profiles
Pack Quantity: 10 pieces
Weight (g): 8.0
Zolltarifnummer: 39269097900
pA Number: 146923

Variants

Product ID Profile
099RV30180S I
