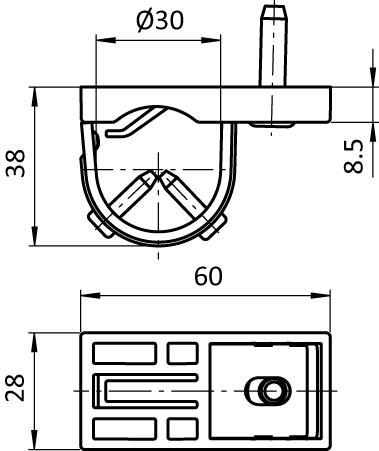

Top Clamp D30 (Set)

Product information "Top Clamp D30 (Set)"

Color:
Spacer: Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

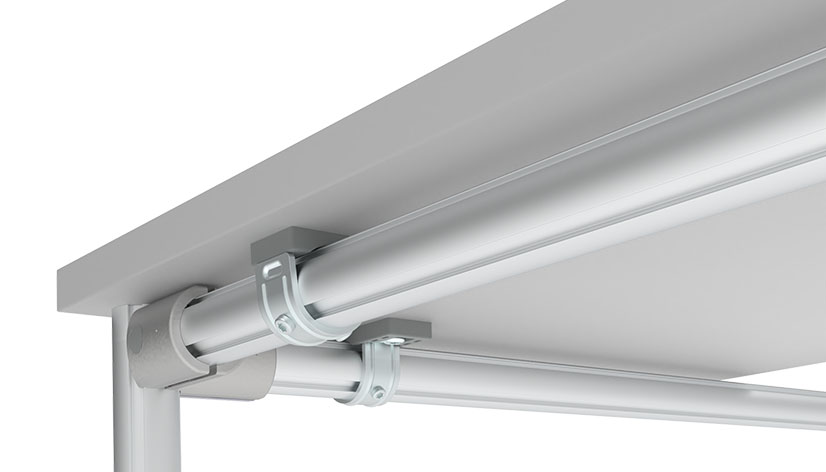

To mount wooden table tops or chipboards on a frame of tubular frame profiles with Ø 30 mm outer diameter

Material:
Clamp: Steel
Spacer: Plastic PA, glass fiber reinforced
Screws: Steel

Set:
1 clamp
1 spacer
1 wood screw 6 x 25
2 self-drilling screws DIN 7504 form N - 3.9 x 16

Surface:
Clamp: Zinc plated
Screws: Zinc plated
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 73269098
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 91.0
Zolltarifnummer: 73269098900
pA Number: 146541

Variants

Product ID Profile
099RV30H I
