Protection Cap D30

Product information "Protection Cap D30"

Color:
Gray ≈ RAL 7042

Delivery Countries:
Worldwide

Description:

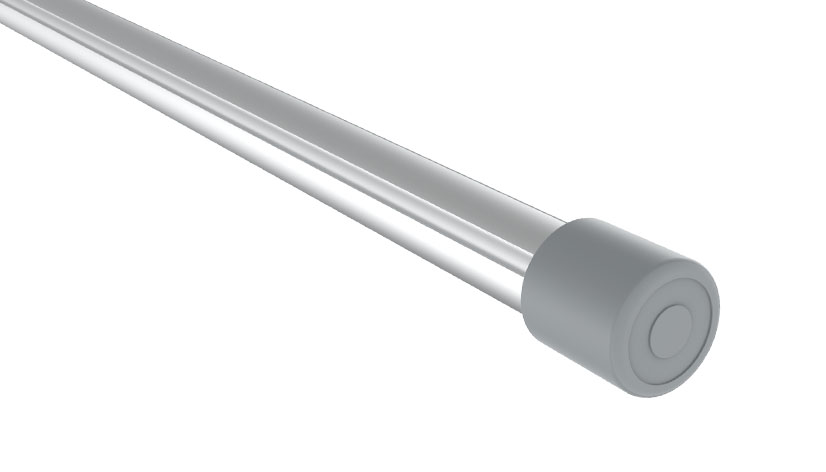

To prevent damages, scratches or injuries by the end of tubular frame profiles with Ø 30 mm outer diameter;
End-position damping in Karakuri/LCA applications;
Prevents movement of tubular frame profiles on slippery surfaces and absorbs some vibration;
Punch through safe due to added steel inlay, elastic and surrounding design

Material:
Protection cap: Plastic TPE
Inlay: Steel

Specials:
Other colors, other sizes on request

Surface:
Inlay: Zinc plated
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Customs Tariff Number Export: 39269097
Model: For tubular frame profiles
Pack Quantity: 10 pieces
Weight (g): 37.1
Zolltarifnummer: 39269097900
pA Number: 146464

Variants

Product ID Profile
099RV30CC03 I

CAD Downloads

Certificates
