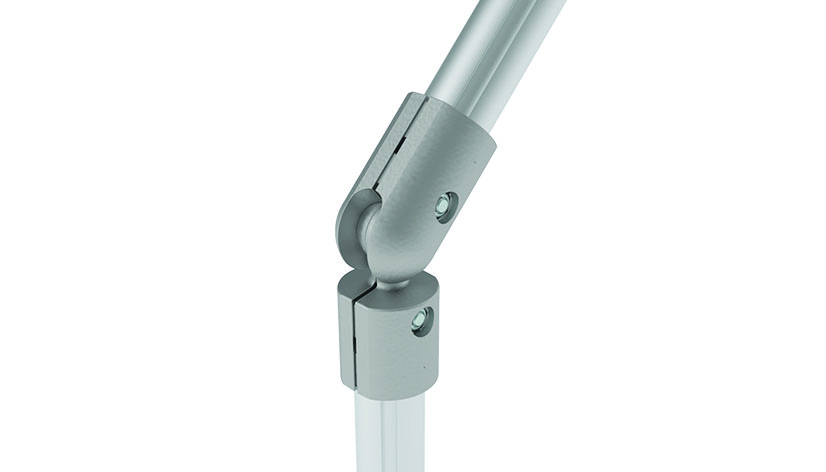

Outer Ball Butt Connector D30 (Set)
Regular price:
€0.00
Part #:
099RV30KS03
Pack Quantity:
10 pieces
Product information "Outer Ball Butt Connector D30 (Set)"
Delivery Countries:
Worldwide
Description:

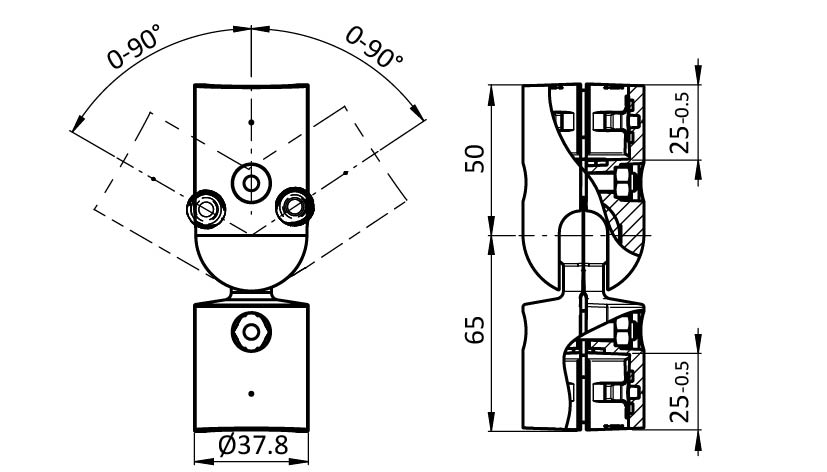

To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 components for outer ball butt connector D30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
Surface:
Assembly set: Zinc plated
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Worldwide
Description:
To connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 components for outer ball butt connector D30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 30,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
Surface:
Assembly set: Zinc plated
Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For tubular frame profiles |
| Weight (g): | 219.0 |
| ERP Number: | 147048 |
Product Portraits
Classifications
- ECLASS 6.0
- 23360302
- ECLASS 7.0
- 23360302
- ECLASS 8.0
- 23360302
- ECLASS 9.0
- 23360302
- ECLASS 10.0
- 23360302
- ECLASS 11.0
- 23360302
- ECLASS 12.0
- 23360302
- ECLASS 13.0
- 23360302
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
