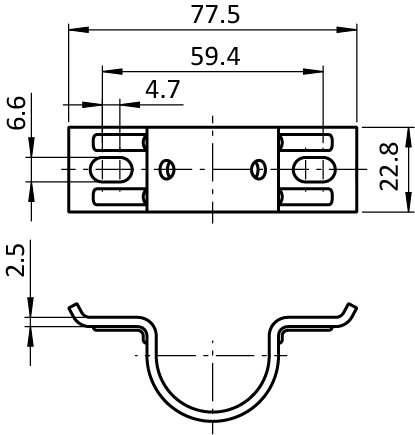

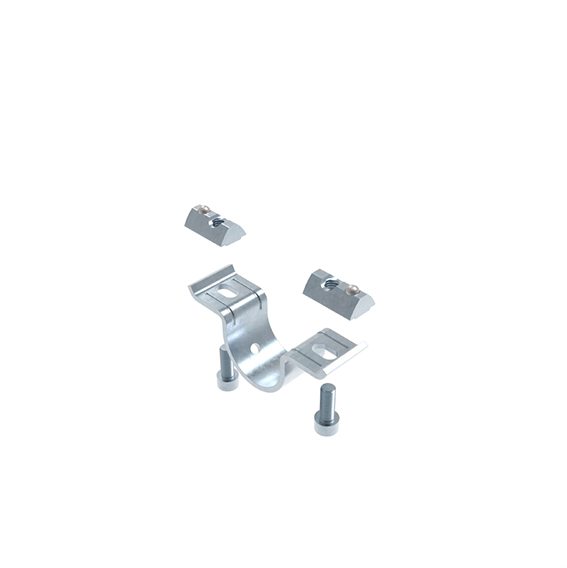

Mounting Bracket D30 (Set)

Product information "Mounting Bracket D30 (Set)"

Delivery Countries:
Worldwide

Description:

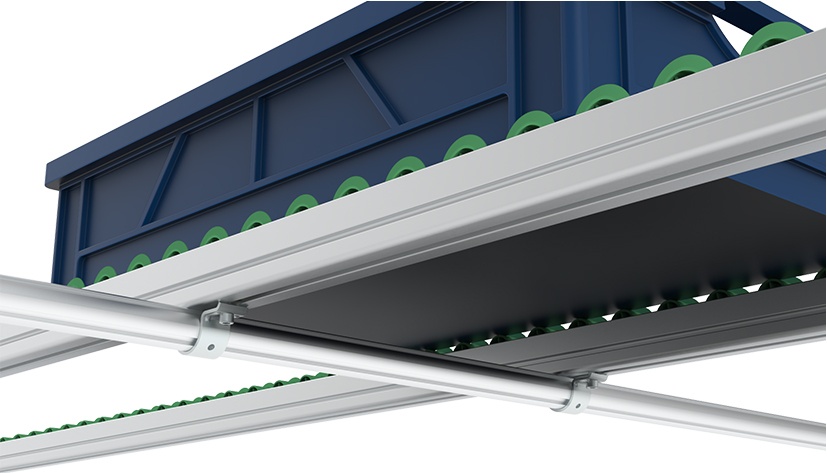

To support an roller track AL or a aluminum profile slot 8 on a crossing tubular frame profile with Ø 30 mm outer diameter

Material:
Steel

Set:
1 mounting bracket,
2 T-slot nuts - slot 8 - M6,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 16

Surface:
Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 73269098
Model: For tubular frame profiles
Pack Quantity: 20 set
Weight (g): 66.3
Zolltarifnummer: 73269098900
pA Number: 146938

Variants

Product ID Profile
099RV30HS01 I
