Slide Bearing D40/D30

Skip image gallery

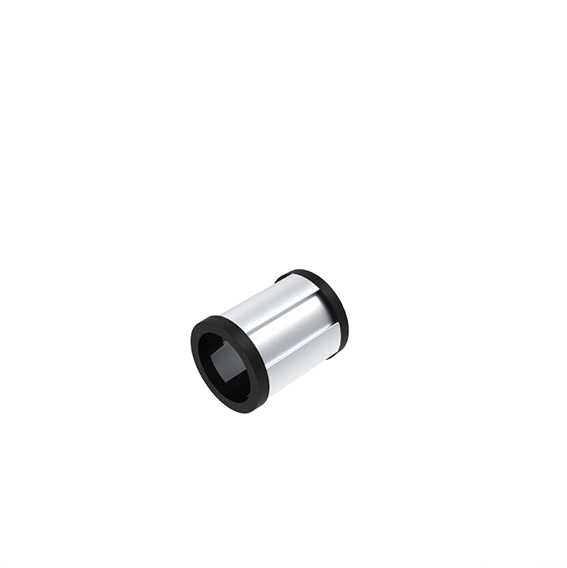

Slide Bearing D40/D30 093S30S02 – product image
Slide Bearing D40/D30 – product image

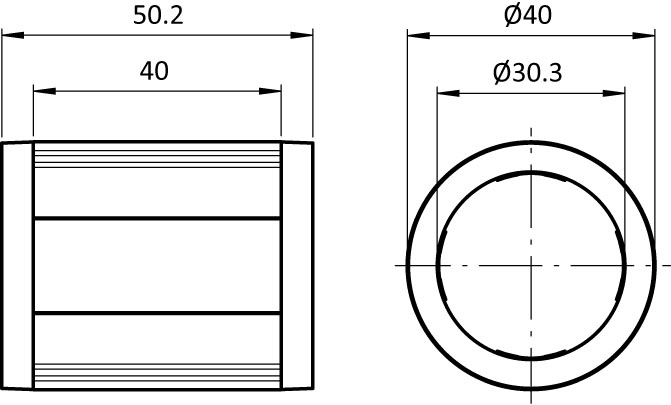

Slide Bearing D40/D30 – technical drawing

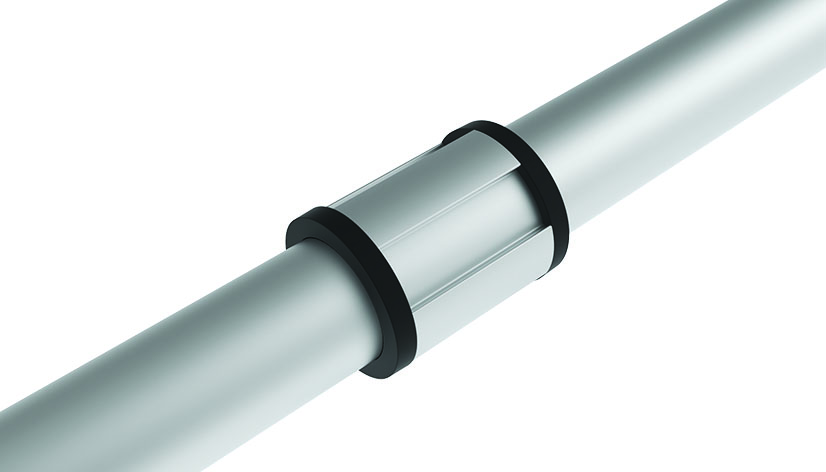

Slide Bearing D40/D30 – application example

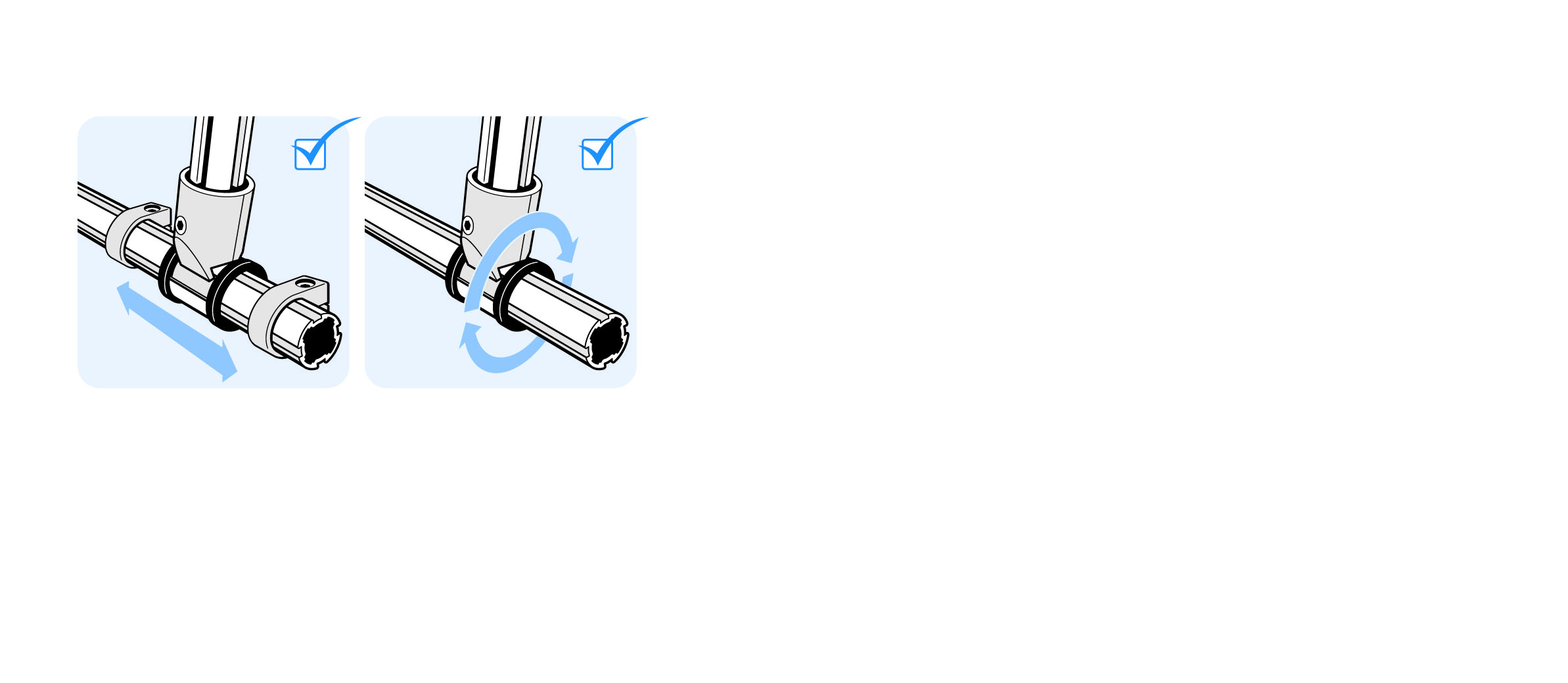

Slide Bearing D40/D30 – assembly graphic
Slide Bearing D40/D30 093S30S02 – product image
Slide Bearing D40/D30 – product image
Slide Bearing D40/D30 – technical drawing
Slide Bearing D40/D30 – application example
Slide Bearing D40/D30 – assembly graphic

€0.00

Profile
ESD
Part #: 093S30S02
Pack Quantity: 1 piece
Description:
For low-friction movement on tubular frame profiles, allows radial and linear movement
Material:
Plastic POM

Delivery Countries:
Worldwide
Pack Quantity: 1 piece
Model: For tubular frame profiles
Weight (g): 36.0
ERP Number: 146931

Variants

Part # Profile ESD CAD
093S30S02
I ESD electrostatical discharging

Product Portraits

Connectors for Aluminum Tubular Frame

Connectors for Aluminum Tubular Frame

After only a short period of time the aluminum round tube systems D28 and D30 has proved successful for the construction of custom structures for workplaces, material shuttles, shelves, and flow racks. Planning and assembly are easy, due to the need for only a few standard parts and the built-in implantation of the Poka-Yoke principle.

To Product Portrait

Classifications

ECLASS 6.0
23050101
ECLASS 7.0
23050101
ECLASS 8.0
23050101
ECLASS 9.0
23050101
ECLASS 10.0
23050101
ECLASS 11.0
23050101
ECLASS 12.0
23050101
ECLASS 13.0
23050101
Zolltarifnummer
39269097900
Customs Tariff Number Export
39269097

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate

Tags

Profile Type Profile Type I
Modular Dimension Modular Dimension D30
Product Feature ESD
Profile Form Round Tubular Profiles
