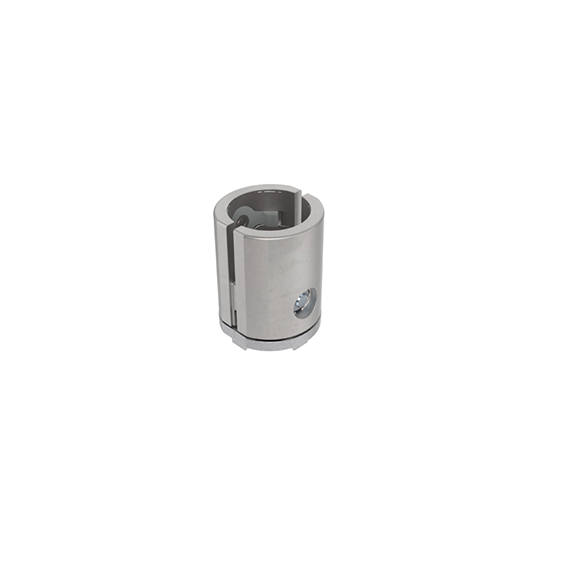

Outer T-connector D30 - Slot 8 (Set)

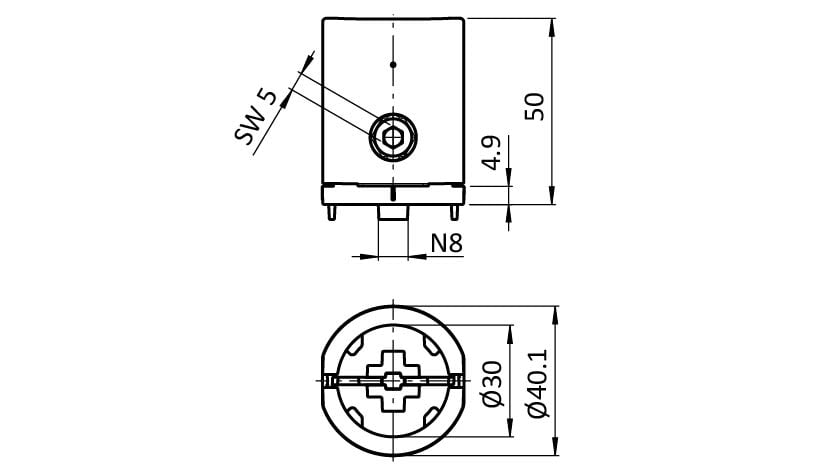

Outer T-connector D30 - Slot 8 (Set) – technical drawing

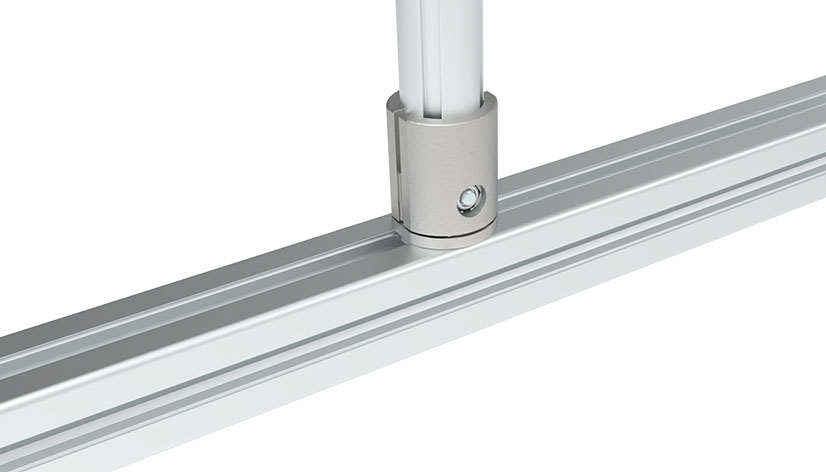

Outer T-connector D30 - Slot 8 (Set) – application example

€0.00

Profile

I

ESD

ESD electrostatical discharging

Part #: 099RV3090LS02

Pack Quantity: 10 pieces

Product information "Outer T-connector D30 - Slot 8 (Set)"

Delivery Countries:
Worldwide

Description:
To connect a tubular frame profile with Ø 30 mm outer diameter with a slot 8 aluminum profile

Fastening:
On profile I - slot 8 - using screw DIN EN ISO 7380 (DIN 34805) - M6 x 14

Material:
Connector: Aluminum die-cast
Adapter plate: Aluminum die-cast
Assembly set: Steel

Set:
2 components for outer T-connector D30 - slot 8
1 adapter plate
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28
1 self locking nut DIN EN ISO 4032 (DIN 934) - M6

Surface:
Assembly set: Zinc plated

Tip:
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06

Pack Quantity:	10 pieces
Model:	For tubular frame profiles
Weight (g):	140.5
ERP Number:	146465

Variants

Part #	Profile	ESD	CAD
099RV3090LS02	I	ESD electrostatical discharging

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 76169910990
Customs Tariff Number Export: 76169910

Certificates

Tags

Profile Type	Profile Type I
Slot Size	Slot 8
Modular Dimension	Modular Dimension D30
Product Feature	ESD
Profile Form	Round Tubular Profiles

Matching accessories

Cover Cap for Tubular Frame Connectors D30

Profile: I Fig.: ①

Color:Gray ≈ RAL 7042Delivery Countries:WorldwideDescription:To cover the screw hole of connectors for tubular frame profiles with Ø 30 mm outer diameterMaterial:Plastic PA, glass fiber reinforced
