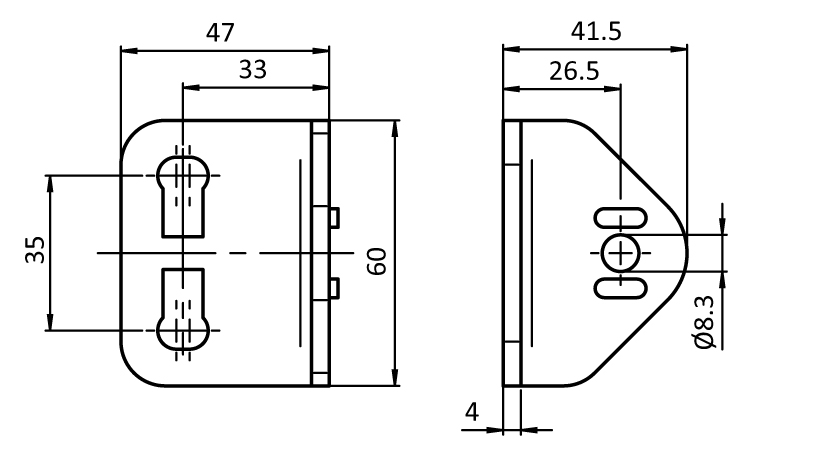

Mounting Bracket 60 x 47, D28 (Set)

Product information "Mounting Bracket 60 x 47, D28 (Set)"

Delivery Countries:
Worldwide

Description:

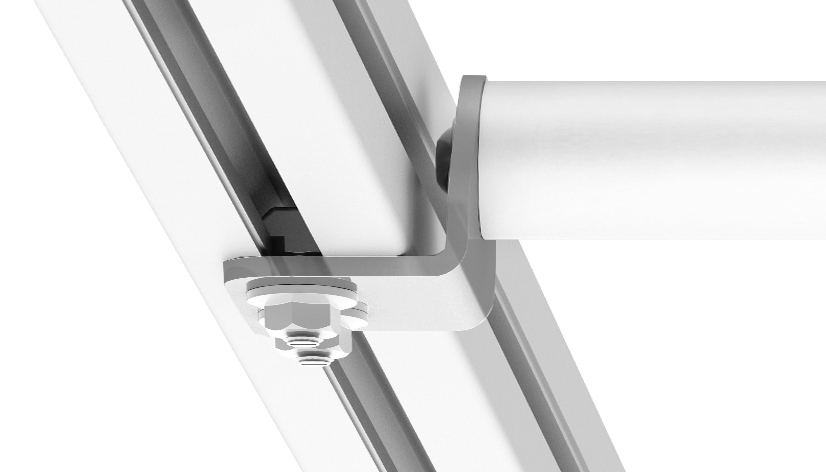

To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holes

Material:
Steel

Set:
1 mounting bracket,
1 self-tapping screw S8 x 25 - hexalobular Socket T40,
2 hammer head screws - Nut 10 - M8 x 20,
2 flange nuts M8

Surface:
Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 73269098
Model: For tubular frame profiles
Pack Quantity: 20 set
Weight (g): 176.0
Zolltarifnummer: 73269098900
pA Number: 126847

Variants

Product ID ESD Profile
099RV28TWS01 ESD electrostatical discharging B
