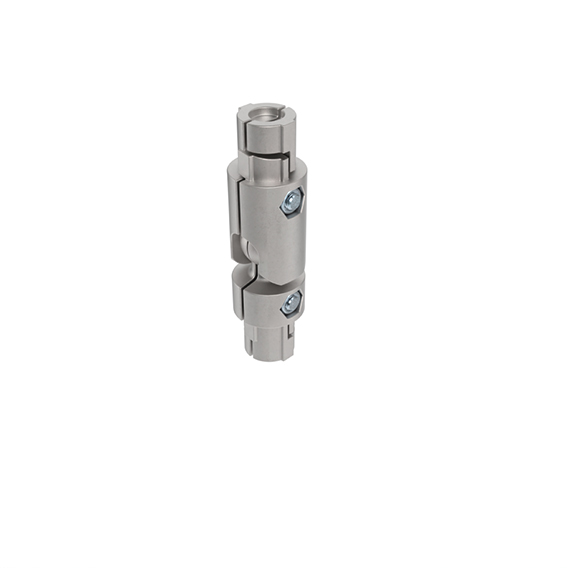

Inner Ball Butt Connector D28 (Set)

Product information "Inner Ball Butt Connector D28 (Set)"

Delivery Countries:
Worldwide

Description:

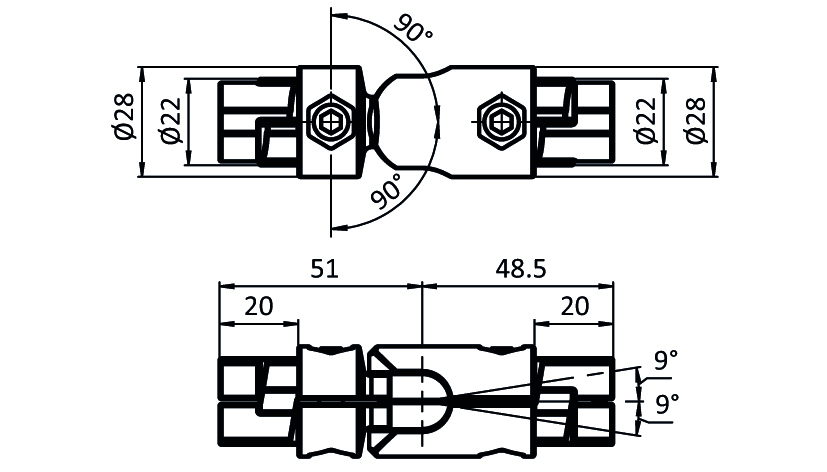

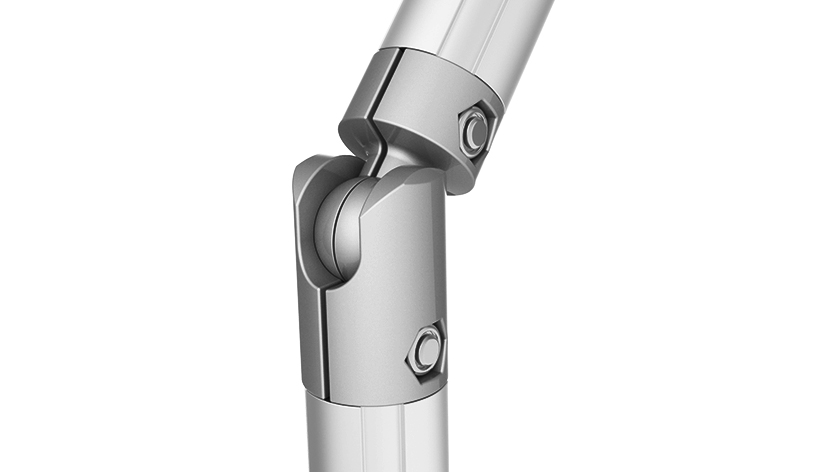

To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set

Material:
Connector: Aluminum die-cast
Assembly set: Steel

Set:
4 components for inner ball butt connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20,
2 self-locking nuts ISO 10511 - M6

Surface:
Connector: Plain
Assembly set: Zinc plated

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360302
(ECLASS 7.0): 23360302
(ECLASS 8.0): 23360302
(ECLASS 9.0): 23360302
(ECLASS 10.0): 23360302
(ECLASS 11.0): 23360302
(ECLASS 12.0): 23360302
(ECLASS 13.0): 23360302
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 122.0

Variants

Product ID ESD
099RV28KS04 ESD electrostatical discharging
