Cross Connector D28 (Set)

Product information "Cross Connector D28 (Set)"

Delivery Countries:
Worldwide

Description:

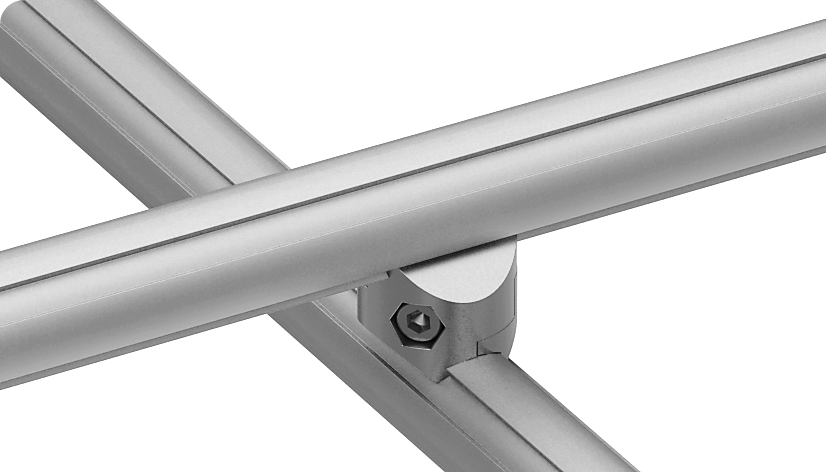

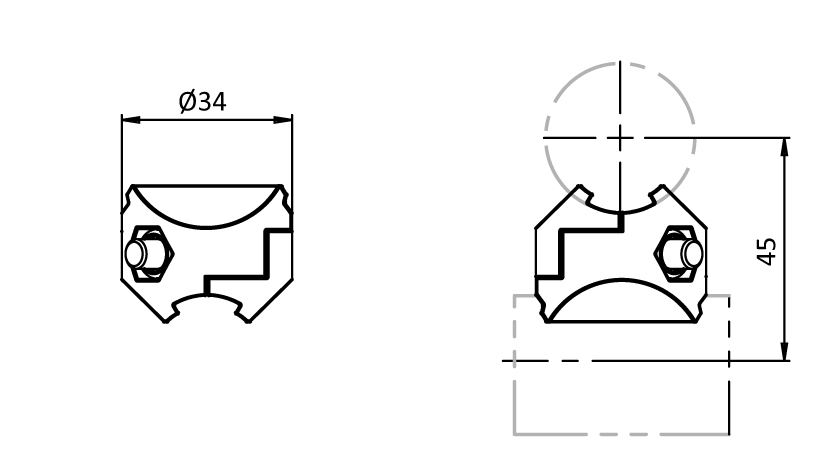

To cross connect two tubular frame profileswith Ø 28 mm outer diameter; completely pre-assembled set

Material:
Connector: Aluminum die-cast
Assembly set: Steel

Set:
2 components for cross connector D28,
1 screw ISO 4762 - M6 x 30,
1 self-locking nut ISO 10511 - M6

Surface:
Connector: Plain
Assembly set: Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 76169910
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 50.0
Zolltarifnummer: 76169910990
pA Number: 125726

Variants

Product ID ESD
099RV28XS01 ESD electrostatical discharging
