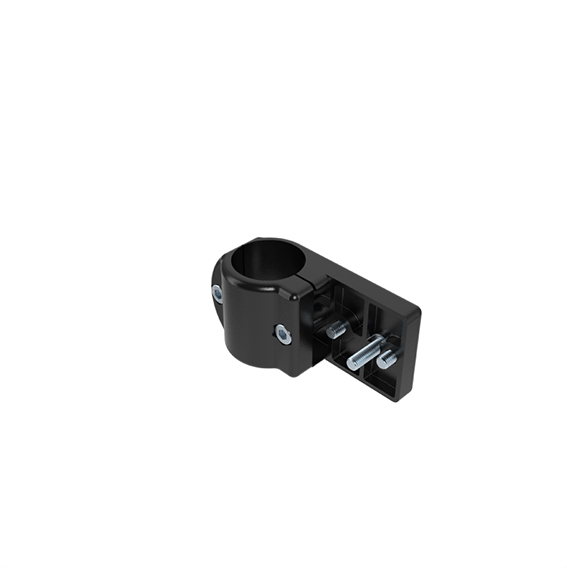

Mounting Clamp D28 (Set)
Part #:
099RV28H
Product information "Mounting Clamp D28 (Set)"
Color:
Mounting clamp: Black
Delivery Countries:
Worldwide
Description:

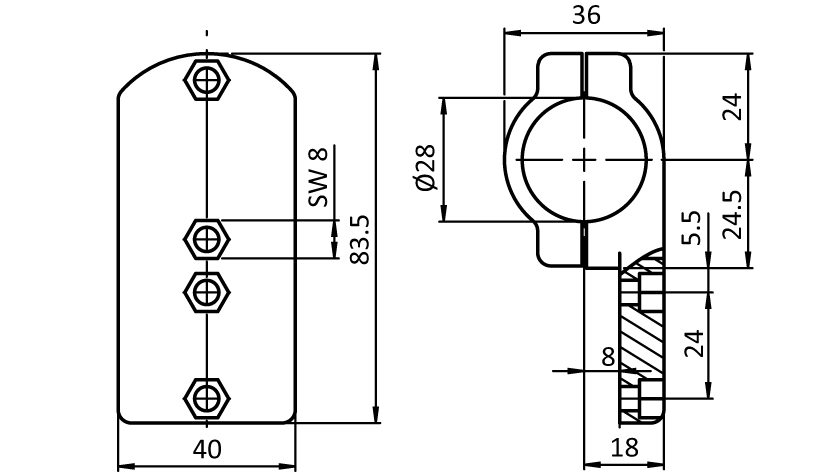

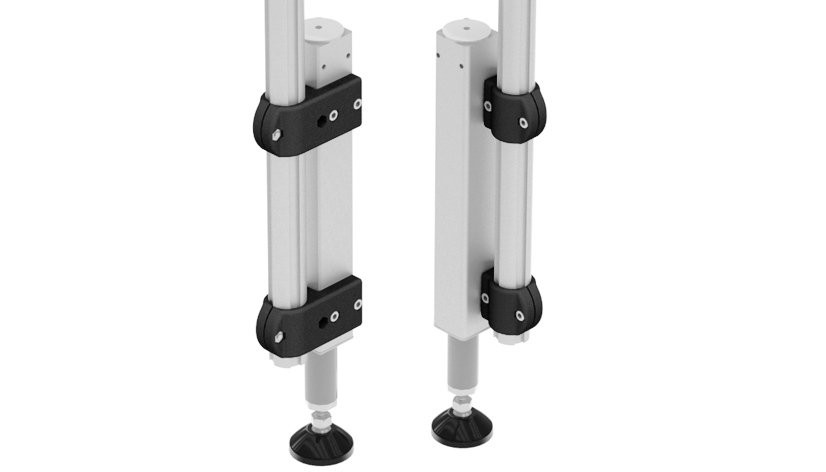

To laterally connect a tubular frame profilewith Ø 28 mm outer diameter to an aluminum profile, hole spacing compatible with Ergoswiss® lift cylinders
Material:
Connector: Zinc die-cast
Assembly set: Steel
Set:
2 components for mounting clamp D28,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 16,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 10,
2 nuts DIN EN ISO 4032 (DIN 934) - M5
Surface:
Mounting clamp: Powder coated
Assembly set: Zinc plated
Mounting clamp: Black
Delivery Countries:
Worldwide
Description:
To laterally connect a tubular frame profilewith Ø 28 mm outer diameter to an aluminum profile, hole spacing compatible with Ergoswiss® lift cylinders
Material:
Connector: Zinc die-cast
Assembly set: Steel
Set:
2 components for mounting clamp D28,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 16,
2 screws DIN EN ISO 4762 (DIN 912) - M5 x 10,
2 nuts DIN EN ISO 4032 (DIN 934) - M5
Surface:
Mounting clamp: Powder coated
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 79070000 |
| Model: | For tubular frame profiles |
| Pack Quantity: | 10 sets |
| Weight (g): | 212.0 |
| Zolltarifnummer: | 79070000900 |
| pA Number: | 126702 |
