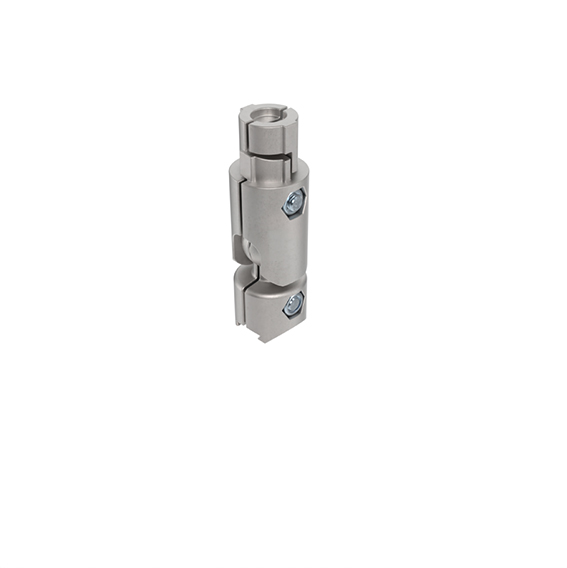

Inner Ball Connector D28 (Set)
Part #:
099RV28KS05
Product information "Inner Ball Connector D28 (Set)"
Delivery Countries:
Worldwide
Description:

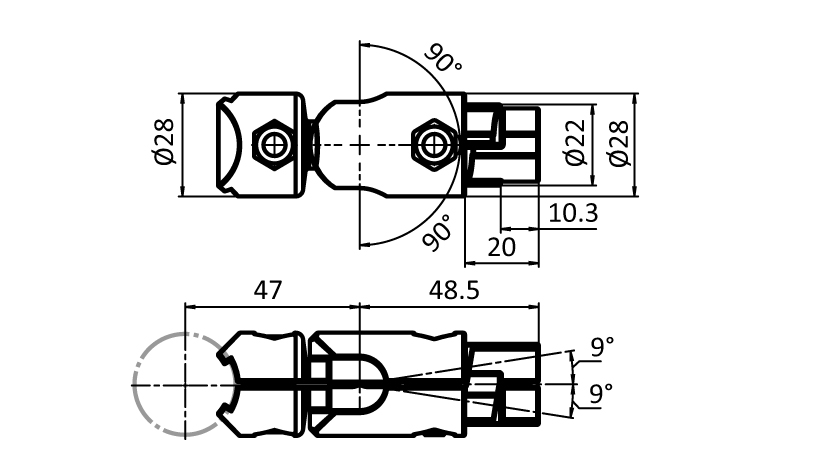

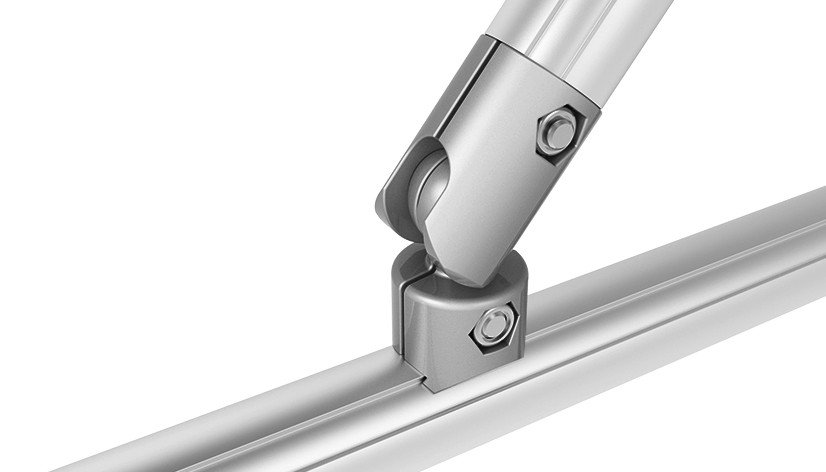

To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 components for inner ball butt T-connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20,
2 self-locking nuts ISO 10511 - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
Worldwide
Description:
To connect two tubular frame profiles with Ø 28 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
4 components for inner ball butt T-connector D28,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 20,
2 self-locking nuts ISO 10511 - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360302 |
|---|---|
| (ECLASS 7.0): | 23360302 |
| (ECLASS 8.0): | 23360302 |
| (ECLASS 9.0): | 23360302 |
| (ECLASS 10.0): | 23360302 |
| (ECLASS 11.0): | 23360302 |
| (ECLASS 12.0): | 23360302 |
| (ECLASS 13.0): | 23360302 |
| Customs Tariff Number Export: | 76169910 |
| Model: | For tubular frame profiles |
| Pack Quantity: | 10 sets |
| Weight (g): | 107.0 |
| Zolltarifnummer: | 76169910990 |
| pA Number: | 143986 |
