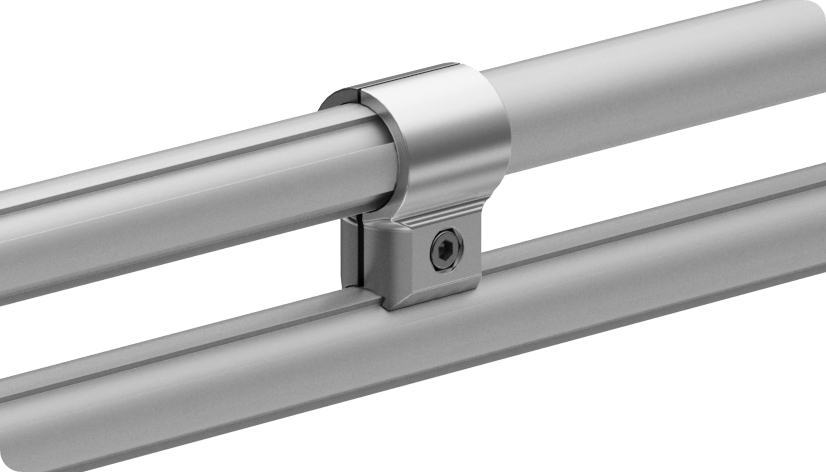

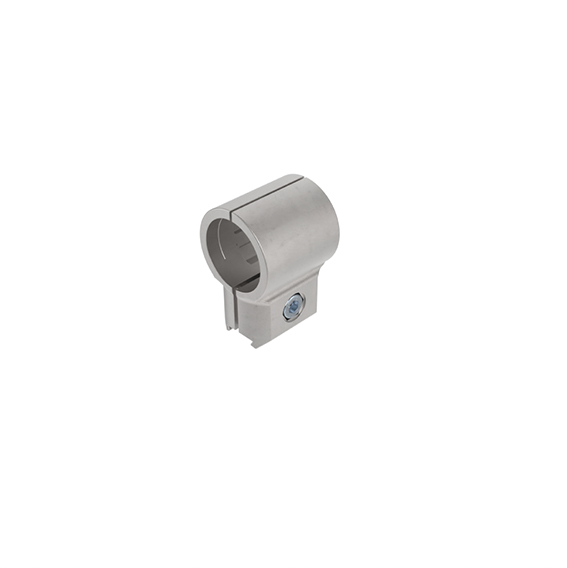

Parallel Clamp D28 (Set)
Regular price:
€0.00
Part #:
099RV28180S01
Pack Quantity:
10 sets
Product information "Parallel Clamp D28 (Set)"
Delivery Countries:
Worldwide
Description:
To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for parallel clamp D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
Worldwide
Description:
To parallelly connect a tube or a tubular frame profile to a tubular frame profile with Ø 28 mm outer diameter; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for parallel clamp D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut DIN EN ISO 10511 (DIN 985) - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
| Pack Quantity: | 10 sets |
|---|---|
| Model: | For tubular frame profiles |
| Weight (g): | 80.3 |
| ECLASS 6.0: | 23360290 |
| ECLASS 7.0: | 23360290 |
| ECLASS 8.0: | 23360290 |
| ECLASS 9.0: | 23360290 |
| ECLASS 10.0: | 23360290 |
| ECLASS 11.0: | 23360290 |
| ECLASS 12.0: | 23360290 |
| ECLASS 13.0: | 23360290 |
| Zolltarifnummer: | 76169910990 |
| Customs Tariff Number Export: | 76169910 |
| ERP Number: | 125772 |
