Adapter Piece D28 - 40 M8 (Set)
Regular price:
€0.00
Part #:
061FA40S01
Pack Quantity:
10 pieces
Description:

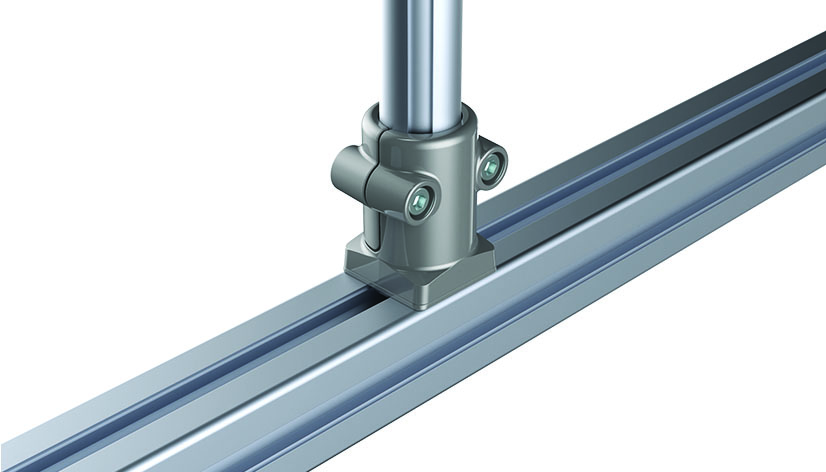

To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile;
Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile;
Adapter piece can be attached lateral or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 20 mm deep)
Material:
Adapter piece: Alu die-cast
Centering plate: Alu die-cast
Screws: Steel
Washer: Steel
T-slot nut: Steel
Surface:
Adapter piece: Laquered
Centering plate: Laquered
Screws: Zinc plated
Washer: Zinc plated
T-slot nut: Zinc plated
Color:
Adapter piece: Alu color
Centering plate: Alu color
Set:
1 adapter piece
1 centering plate
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut)
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole)
1 washer 8-FSt
1 T-slot nut - slot 10 - M8
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Delivery Countries:
Worldwide
Adapter piece: Alu die-cast
Centering plate: Alu die-cast
Screws: Steel
Washer: Steel
T-slot nut: Steel
Surface:
Adapter piece: Laquered
Centering plate: Laquered
Screws: Zinc plated
Washer: Zinc plated
T-slot nut: Zinc plated
Color:
Adapter piece: Alu color
Centering plate: Alu color
Set:
1 adapter piece
1 centering plate
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut)
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole)
1 washer 8-FSt
1 T-slot nut - slot 10 - M8
Tip:
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For tubular frame profiles |
| Weight (g): | 208.5 |
| ERP Number: | 149316 |
