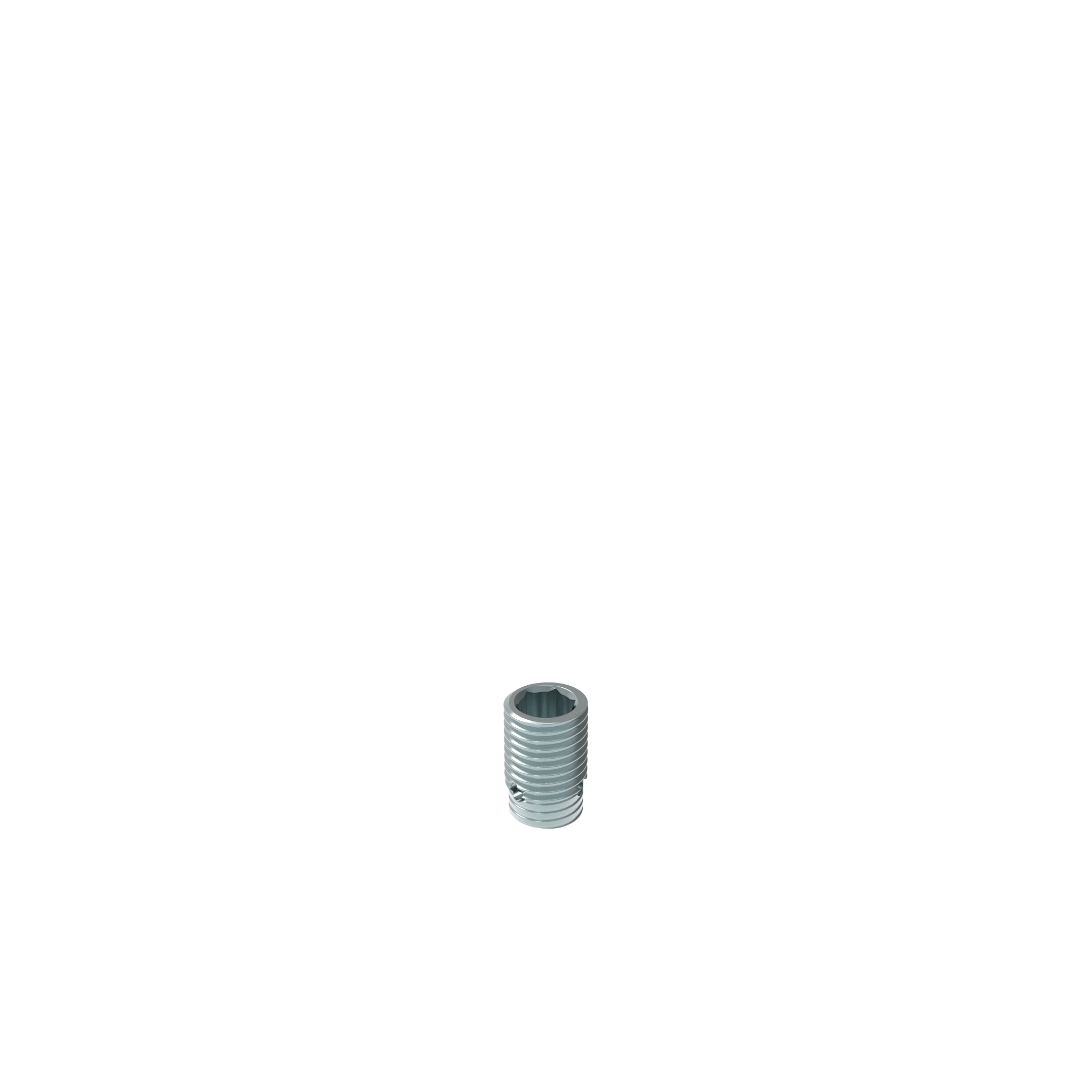

Cutting Bush with Shank

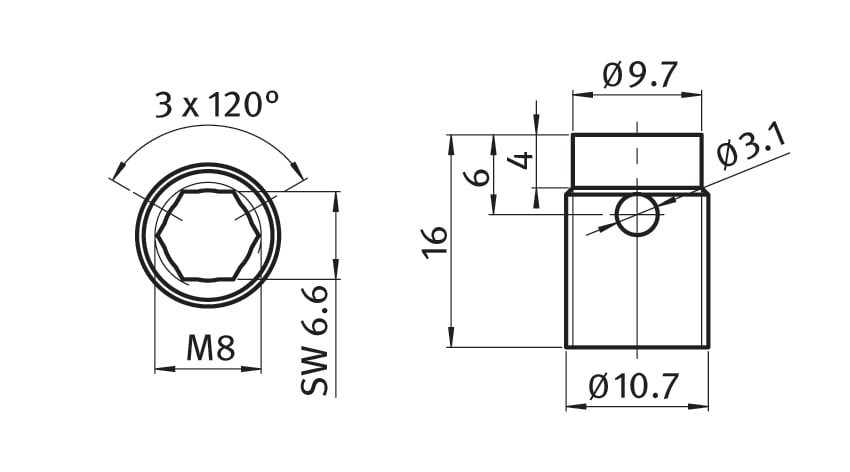

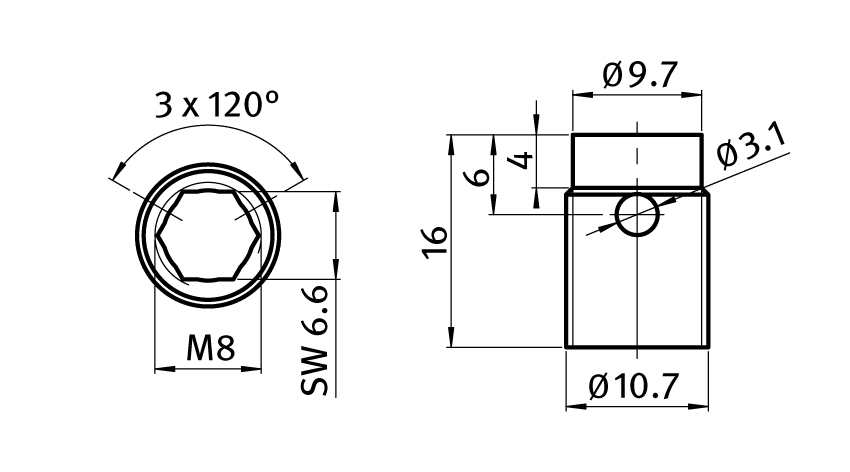

Cutting Bush with Shank – technical drawing

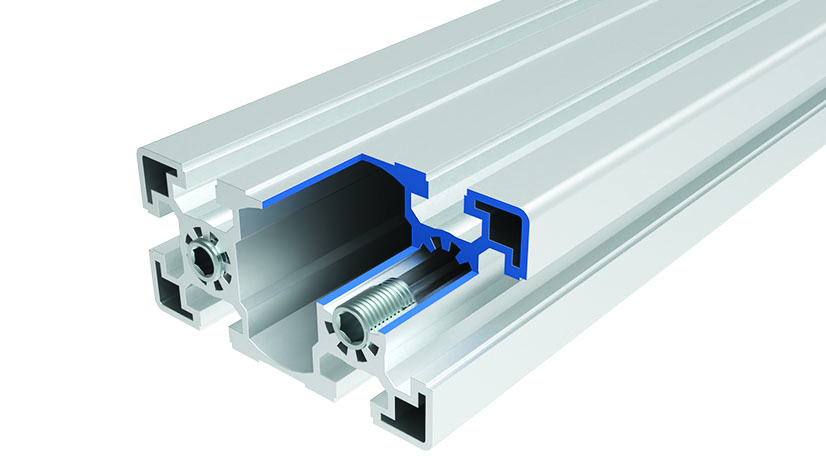

Cutting Bush with Shank – application example

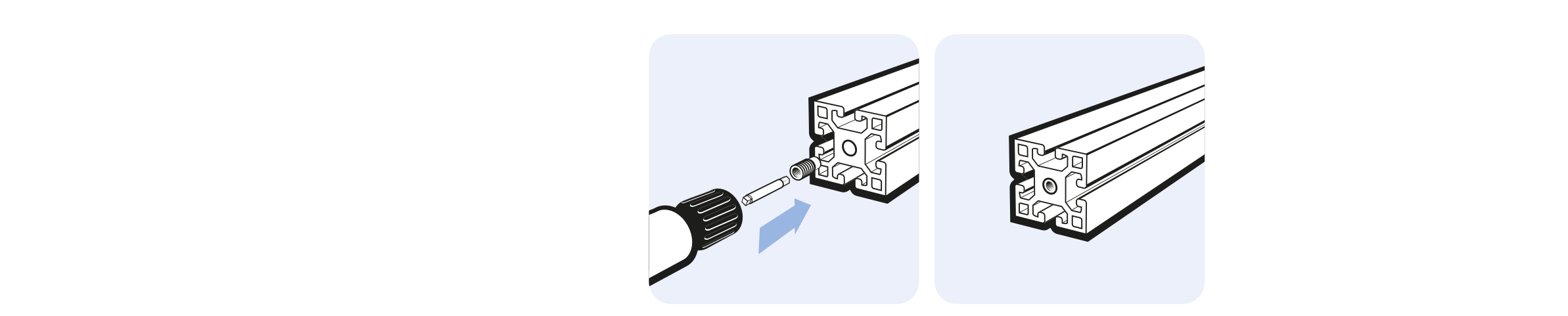

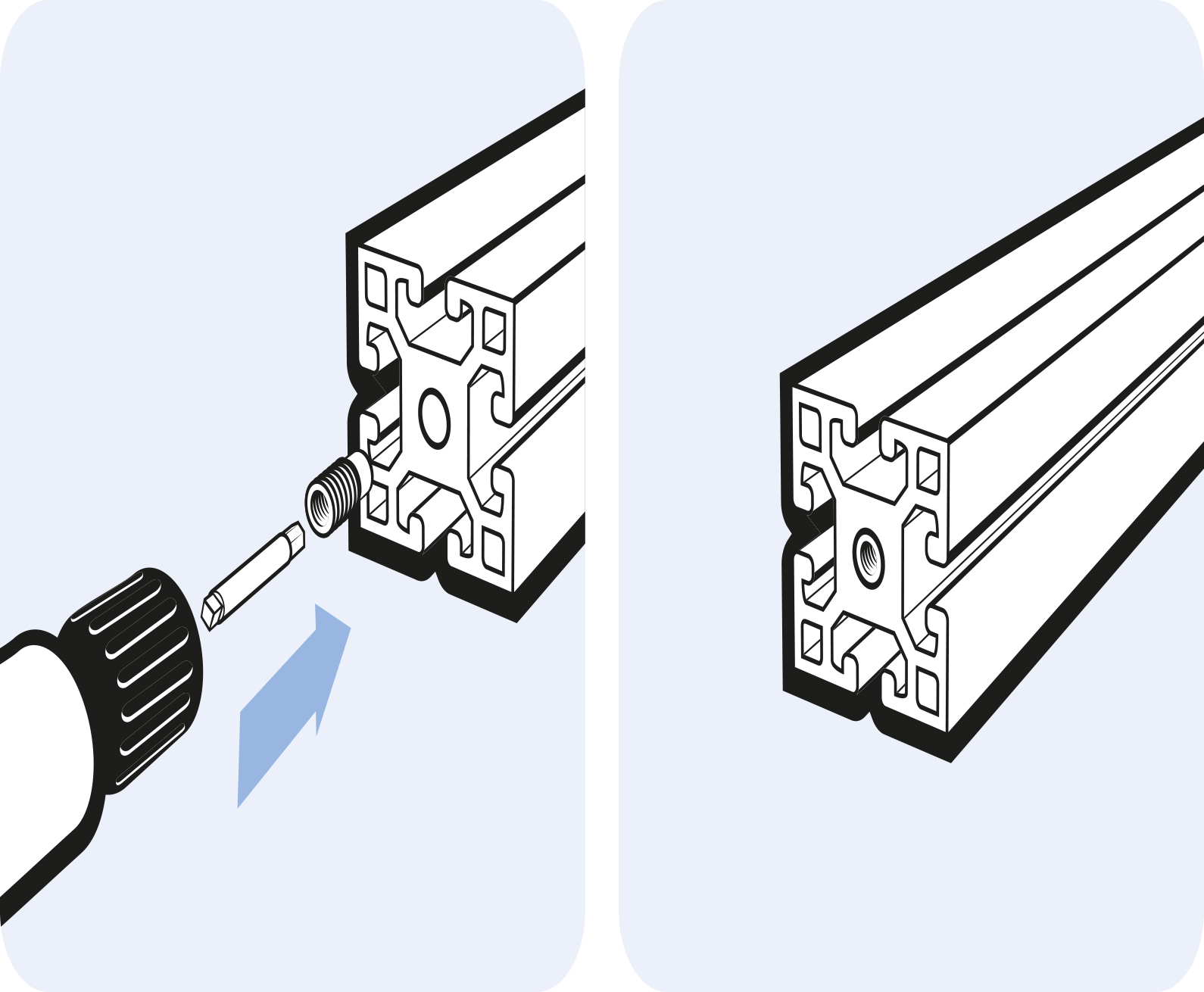

Cutting Bush with Shank – assembly graphic

€0.00

Material

Steel

Profile

I / B

Surface

Zinc plated

Part #: 09308801

Pack Quantity: 100 pieces

Description:
For reduction from core hole 10.2 mm to M8 thread

Material:
Steel

Surface:
Zinc plated

Tip:
Compatible Screw-in Tool for Cutting Bush with Shank see 09308802

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Steel
Weight (g):	3.8
ERP Number:	100430

Variants

Part #	Material	Profile	Surface	CAD
09308801	Steel	I / B	Zinc plated

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 73181900900
Customs Tariff Number Export: 73181900

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Product Feature	ESD
Profile Form	T-slot Profiles

Matching accessories

Tool for Cutting Bush with Shank

Material: Steel Profile: I / B Surface: Zinc plated

Description:For turning the Cutting Bush with Shank into a profile core hole 10.2 mmMaterial:SteelSurface:Zinc platedTip:Compatible Cutting Bush with Shank see 09308801Delivery Countries:Worldwide
