T-connector Plate D28

Skip image gallery
T-connector Plate D28 – product image

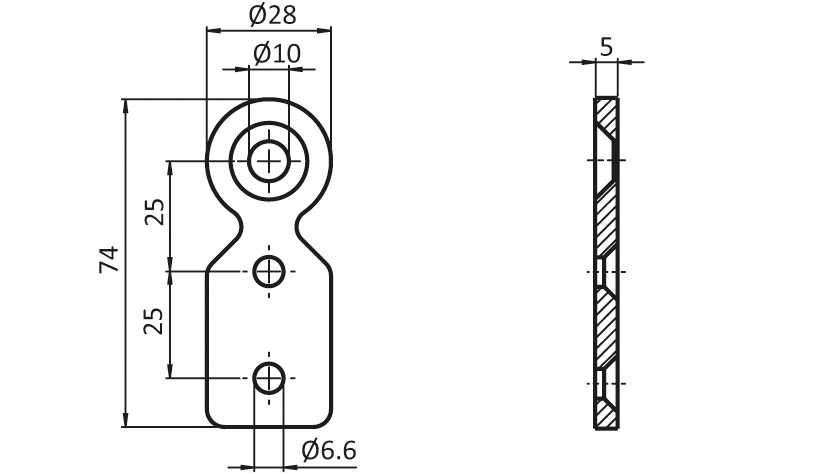

T-connector Plate D28 – technical drawing

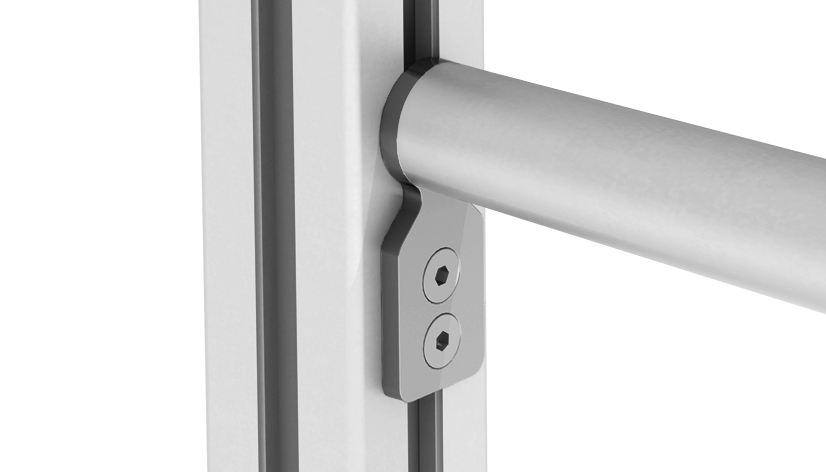

T-connector Plate D28 – application example
T-connector Plate D28 – product image
T-connector Plate D28 – technical drawing
T-connector Plate D28 – application example

€0.00

Part #: 093VAD28V
Pack Quantity: 10 pieces

Product information "T-connector Plate D28"

Delivery Countries:
Worldwide

Description:
To connect a tubular frame profile with Ø 28 mm outer diameter with an aluminum profile at right angles; screw connetion to the core hole of the Ø 28 mm profile or to the threaded sleeve for D28 M8 for Ø 28 mm tubular profiles

Fastening:
With countersunk screws 1x M8 and 2x M6

Material:
Steel

Surface:
Zinc plated

Tip:
Compatible Threaded Sleeve D28 M8 see 099RV28AS02
Pack Quantity: 10 pieces
Model: For tubular frame profiles
Weight (g): 52.3
ERP Number: 140880

Variants

Part # CAD
093VAD28V

CAD Downloads

Product Portraits

Connectors for Aluminum Tubular Frame

Connectors for Aluminum Tubular Frame

After only a short period of time the aluminum round tube systems D28 and D30 has proved successful for the construction of custom structures for workplaces, material shuttles, shelves, and flow racks. Planning and assembly are easy, due to the need for only a few standard parts and the built-in implantation of the Poka-Yoke principle.

To Product Portrait

Sign Frames

Sign Frames

The PVC-free FATH Message Frames are usable on both sides and can be attached without tools. The versatile attachment options make them a multifunctional tool for labeling in production, warehouse and logistics. For very high requirements, the stable and valuable variant - the FATH Sign Holders with aluminum base body - is the ideal solution.

To Product Portrait

Classifications

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
Zolltarifnummer
73269098900
Customs Tariff Number Export
73269098

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate

Tags

Profile Type Profile Type B
Modular Dimension Modular Dimension D28
Profile Form Round Tubular Profiles, T-slot Profiles
Application Area Industrial Work Stations, Shopfloor
Skip product gallery

Matching accessories

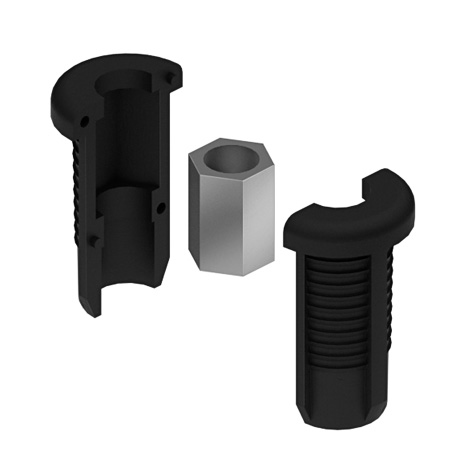

Threaded Sleeve D28L (Set) – product image of all versions
