Threaded Sleeve D28L (Set)

Product information "Threaded Sleeve D28L (Set)"

Color:
Sleeve: Black

Delivery Countries:
Worldwide

Description:

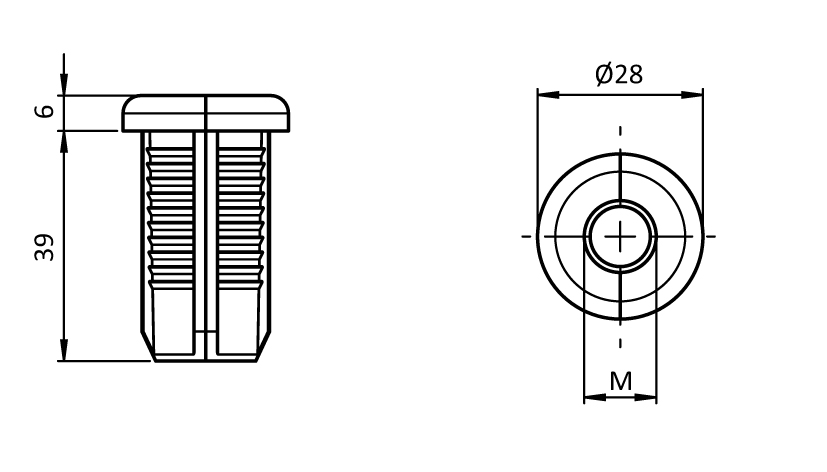

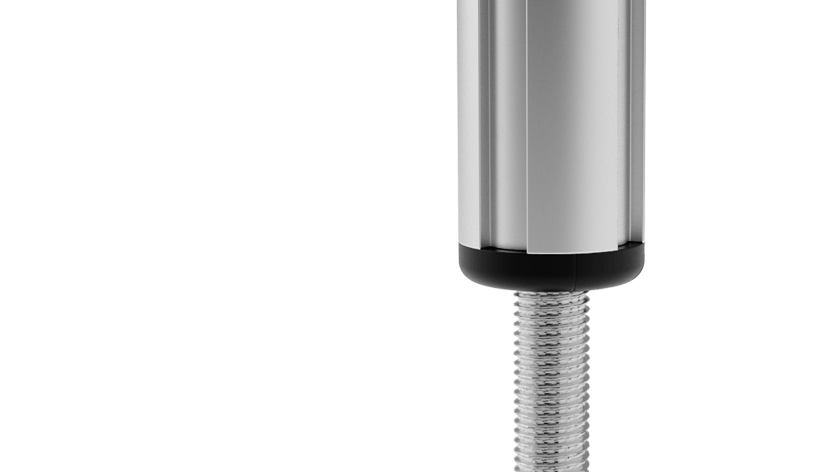

To fix leveling feet or swivel casters to the front of tubular frame profiles D28L with Ø 28 mm outer diameter

Material:
Sleeve: Plastic PA, carbon fibre reinforced
Long nut: Steel

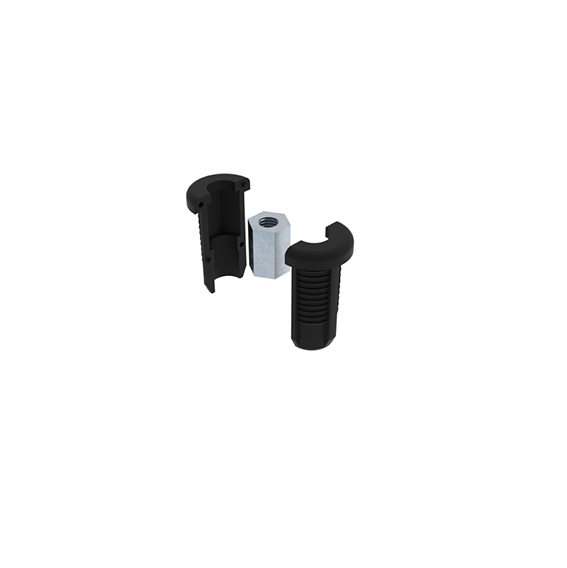

Set 1:
1 sleeve, two-part
1 long nut M8

Set 2:
1 sleeve, two-part
1 long nut M12

Surface:
Long nut: Zinc plated

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23111190
(ECLASS 7.0): 23111190
(ECLASS 8.0): 23111190
(ECLASS 9.0): 23111190
(ECLASS 10.0): 23111190
(ECLASS 11.0): 23111190
(ECLASS 12.0): 23111190
(ECLASS 13.0): 23111190
Model: For tubular frame profiles
Pack Quantity: 20 set
Weight (g): 29.0

Variants

Product ID M Set
099RV28AS01 M12 Set 2
099RV28AS02 M8 Set 1
