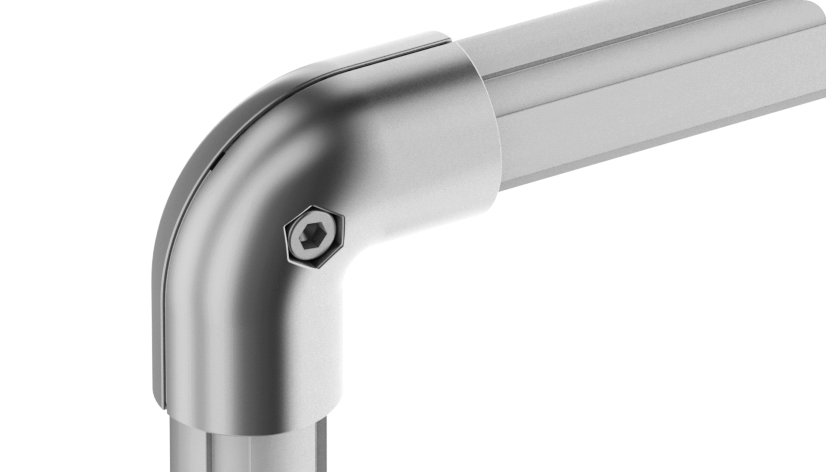

Corner Connector 2D28 (Set)
Part #:
099RV28ES01
Product information "Corner Connector 2D28 (Set)"
Delivery Countries:
Worldwide
Description:

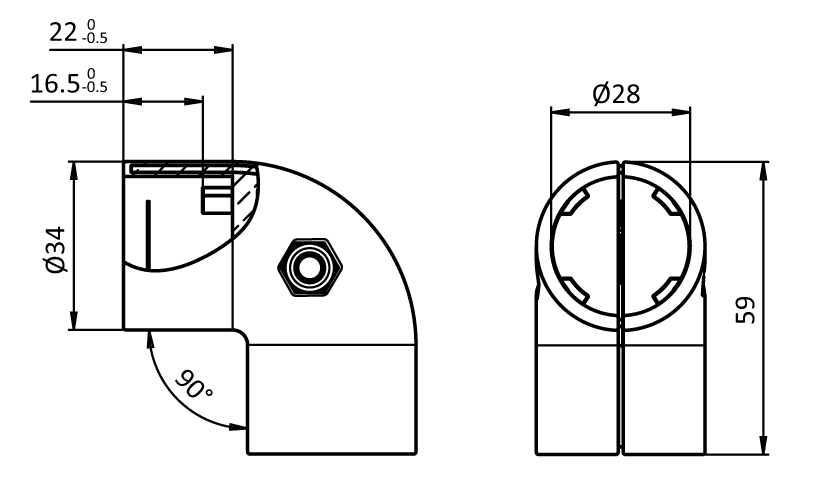

To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for corner connector 2D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut ISO 10511 - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
Worldwide
Description:
To connect two tubular frame profiles with Ø 28 mm outer diameterat right angles; with pre-centering; completely pre-assembled set
Material:
Connector: Aluminum die-cast
Assembly set: Steel
Set:
2 components for corner connector 2D28,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 self-locking nut ISO 10511 - M6
Surface:
Connector: Plain
Assembly set: Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 76169910 |
| Model: | For tubular frame profiles |
| Pack Quantity: | 10 sets |
| Weight (g): | 98.0 |
| Zolltarifnummer: | 76169910990 |
| pA Number: | 126782 |
