Adapter Plate D28 (Set)

Product information "Adapter Plate D28 (Set)"

Delivery Countries:
Worldwide

Description:

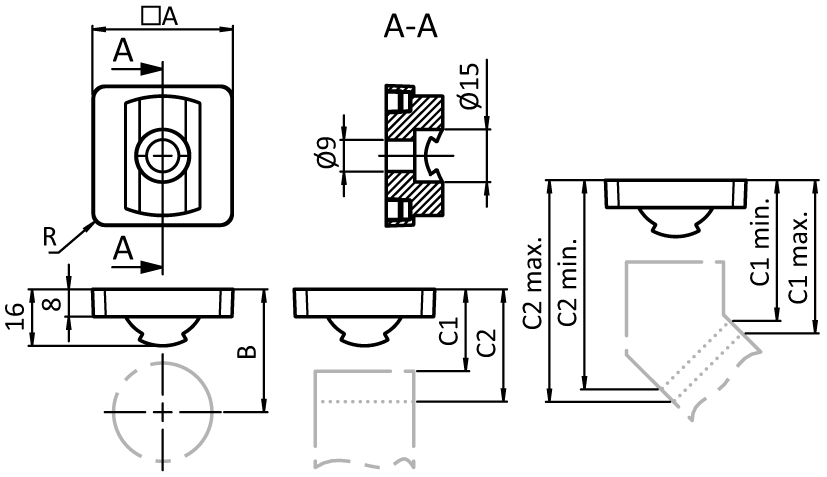

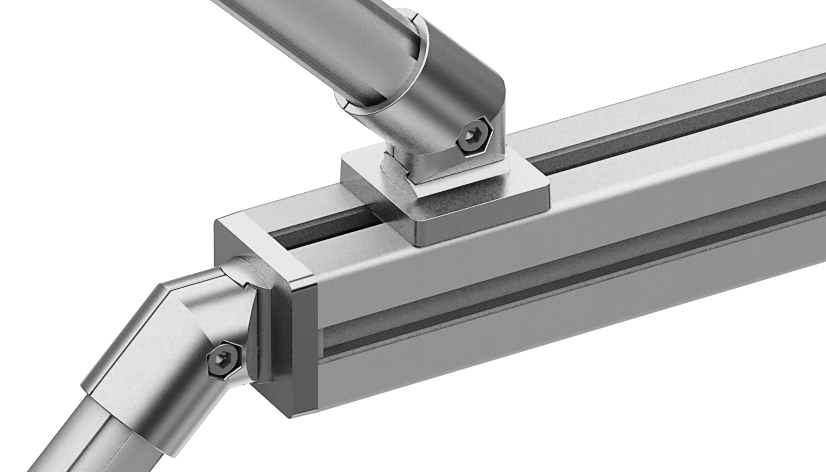

To connect tubular frame profiles with slot 8 or 10 aluminum profiles

Material:
Adapter plates: Aluminum die-cast
Centering piece: Zinc die-cast

Set:
1 adapter plate,
2 locating pins for slot 8 and 10

Surface:
Plain

Tip:
Compatible Connector see 099RV2890LS01, 099RV28KS01, 099RV2845S01 - 099RV2890QS01
* Compatible Cutting Bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Fastening: With pan-head-screw ISO 7380 - M8
Model: For tubular frame profiles
Pack Quantity: 10 sets
Weight (g): 33.0

Variants

Product ID ESD Slot N (mm) R (mm) A (mm)
099RVAP40S01 ESD electrostatical discharging 8 / 10 4.0 40.0
099RVAP45S01 ESD electrostatical discharging 8 / 10 3.0 45.0
