T-Connector D28 - Slot 10 (Set)
Regular price:
€0.00
Part #:
099RV28TS01
Pack Quantity:
10 pieces
Product information "T-Connector D28 - Slot 10 (Set)"
Delivery Countries:
Worldwide
Description:

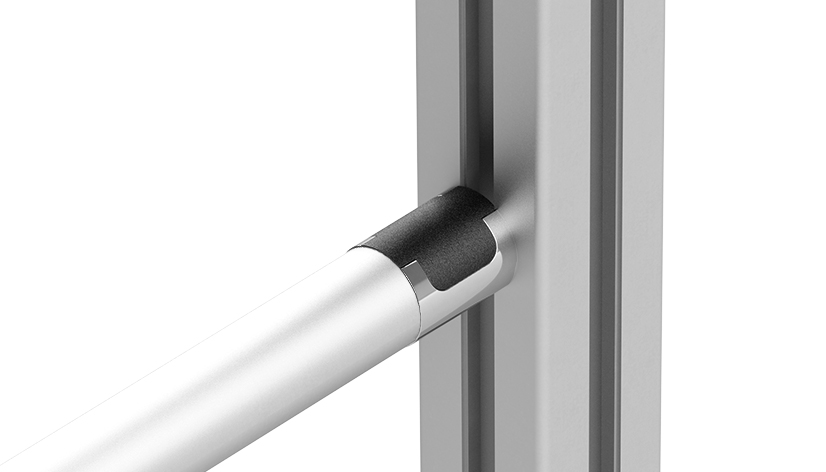

To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile
Material:
Connector: Aluminum die-cast
Cover cap: Plastic PA
Assembly set: Steel
Set:
1 T-connector D28 - slot 10,
1 cover cap,
1 self-tapping screw S8 x 25 - hexalobular socket T40,
1 flange nut M8,
1 hammer head screw - Nut 10 - M8 x 20
Surface:
Connector: Plain
Cover cap: Black
Assembly set: Zinc plated
Worldwide
Description:
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile
Material:
Connector: Aluminum die-cast
Cover cap: Plastic PA
Assembly set: Steel
Set:
1 T-connector D28 - slot 10,
1 cover cap,
1 self-tapping screw S8 x 25 - hexalobular socket T40,
1 flange nut M8,
1 hammer head screw - Nut 10 - M8 x 20
Surface:
Connector: Plain
Cover cap: Black
Assembly set: Zinc plated
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | For tubular frame profiles |
| Weight (g): | 62.0 |
| ERP Number: | 126826 |
Product Portraits
Classifications
- ECLASS 6.0
- 23360290
- ECLASS 7.0
- 23360290
- ECLASS 8.0
- 23360290
- ECLASS 9.0
- 23360290
- ECLASS 10.0
- 23360290
- ECLASS 11.0
- 23360290
- ECLASS 12.0
- 23360290
- ECLASS 13.0
- 23360290
- Zolltarifnummer
- 76169910990
- Customs Tariff Number Export
- 76169910
Certificates
