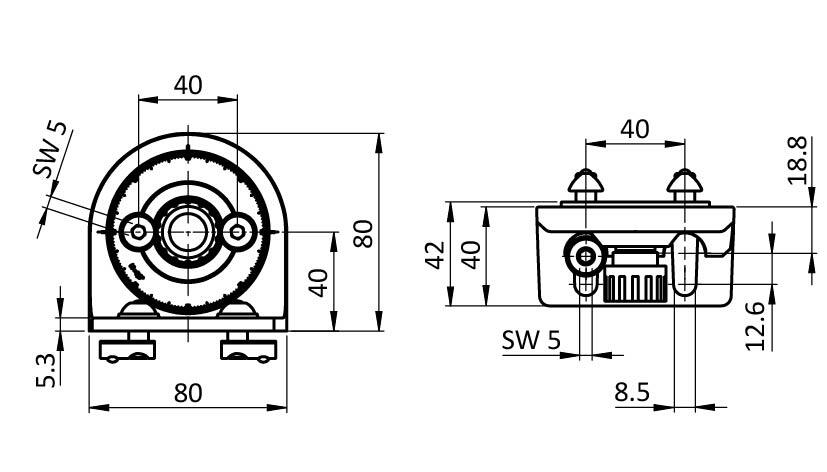

Angle Locking Bracket 40 x 80 (Set)

Product information "Angle Locking Bracket 40 x 80 (Set)"

Color:
Body: Alu color
Knurled screw: Black

Delivery Countries:
Worldwide

Description:
To connect aluminum profiles at an adjustable angle, can be fixed in 2.5° steps by means of a knurled screw

Material:
Body: Aluminum die-cast
Knurled screw: Plastic PA, glass fiber reinforced
Assembly material: Steel

Set:
1 angle locking bracket incl. knurled screw,
2 screws DIN 7984 - M8 x 18,
2 screws ISO 7380 - M8 x 18,
2 shims DIN EN ISO 7089 (DIN 125) - 8.4,
4 T-slot nuts - slot 8 - M8

Surface:
Body: Powder coated
Assembly material: Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 76169910
Model: Aluminum die-cast
Pack Quantity: 10 sets
Weight (g): 275.0
Zolltarifnummer: 76169910990
pA Number: 134568

Variants

Product ID
093WG403
