Ball Catch 30

Product information "Ball Catch 30"

Color:
Black, gray

Counter Screw:
M8 x 12, zinc plated steel / stainless steel SS 304

Delivery Countries:
Worldwide

Description:

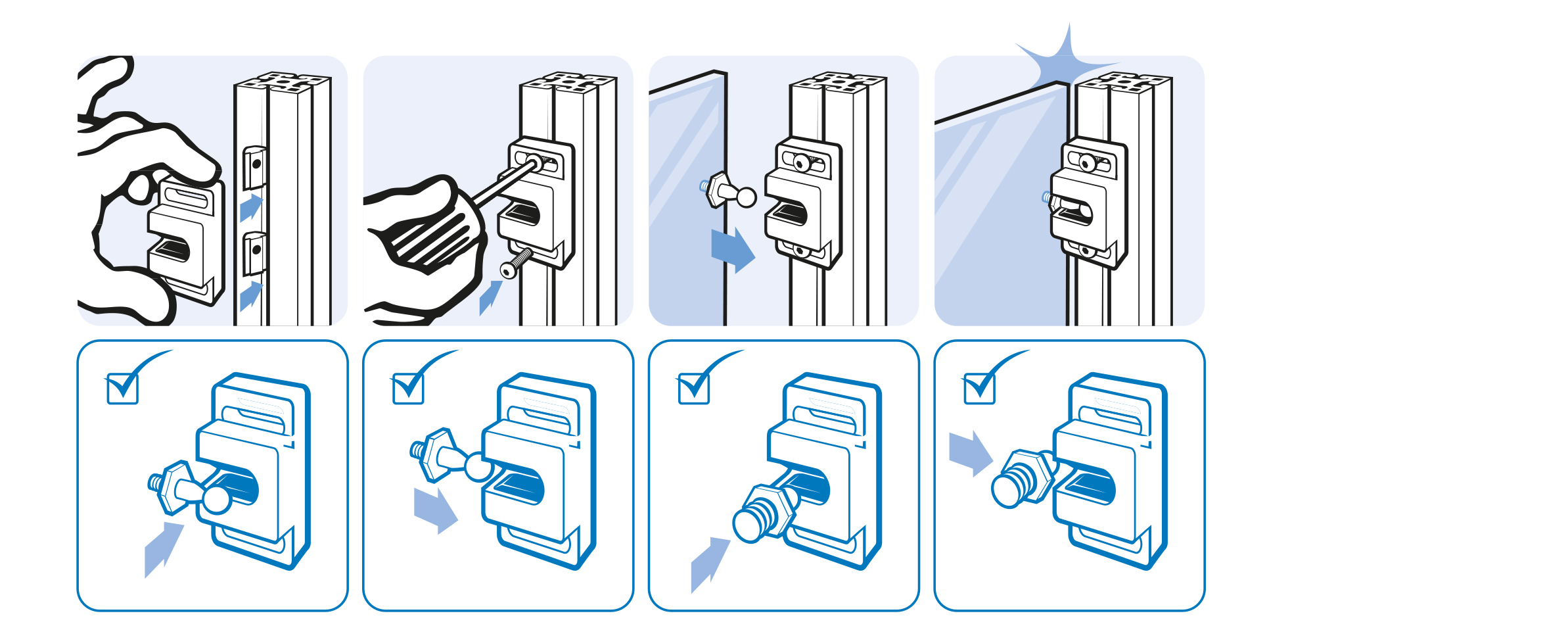

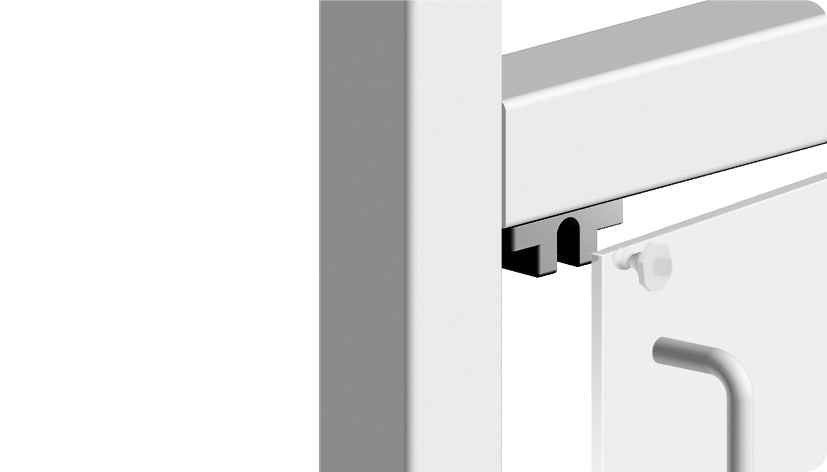

A quick locking device for doors, adaptable to the thickness of the panel units

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23250190
(ECLASS 7.0): 23250190
(ECLASS 8.0): 23250190
(ECLASS 9.0): 23250190
(ECLASS 10.0): 23250190
(ECLASS 11.0): 23250190
(ECLASS 12.0): 23250190
(ECLASS 13.0): 23250190
Fastening: Using screws
Model: Plastic PA
Pack Quantity: 10 pieces
Weight (g): 45.0

Variants

Product ID Color Version Locking Force Counter Screw
093043 Black Strong ~ 50 N Zinc plated steel
093043S02 Black Strong ~ 50 N Stainless steel
093043S03 Gray ≈ RAL 7042 Strong ~ 50 N Zinc plated steel
093043S04 Gray ≈ RAL 7042 Strong ~ 50 N Stainless steel
093045 Black Light ~ 40 N Zinc plated steel
093045S03 Black Light ~ 40 N Stainless steel
093045S06 Gray ≈ RAL 7042 Light ~ 40 N Zinc plated steel
093045S07 Gray ≈ RAL 7042 Light ~ 40 N Stainless steel
