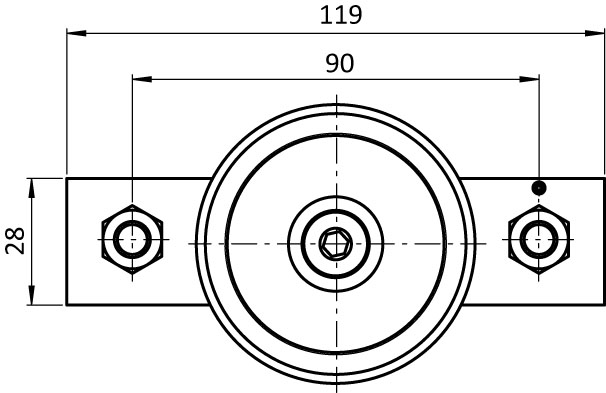

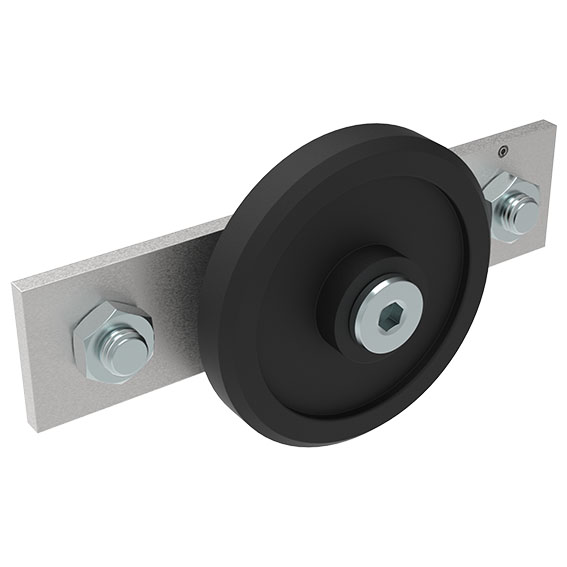

Bearing Kit PA 1 Roller Slot Ø 14 for C-slide Profile I (Set)

Product information "Bearing Kit PA 1 Roller Slot Ø 14 for C-slide Profile I (Set)"

Color:
Roller: Black

Delivery Countries:
Worldwide

Description:

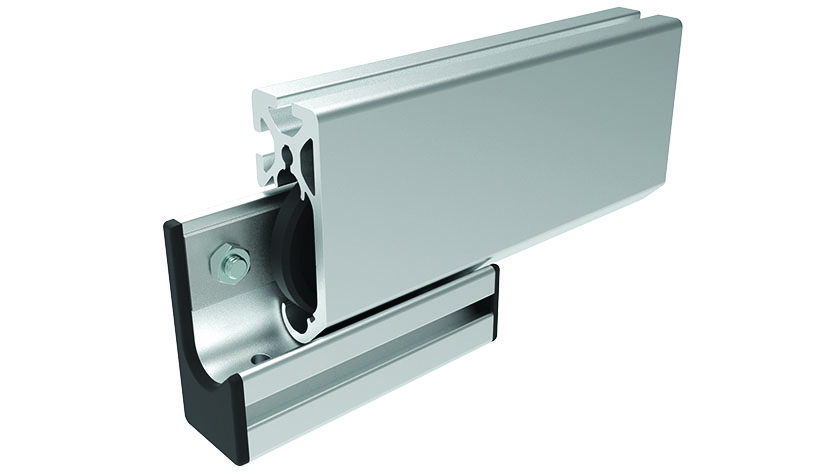

For the construction of bearing units, assembly with machining to C-slide profile I
To linearly guide small loads, plastic roller with slide bearings runs directly on the aluminum of the slot with Ø 14 mm

Material:
Roller: Plastic PA
Carrier plate: Steel
Screws: Steel
Threaded sleeve: Steel
Press nuts: Steel
Tension pin: Steel

Set:
1 roller
1 carrier plate
3 screws DIN EN ISO 10642 (DIN 7991) - M8 x 16
1 threaded sleeve - M8
2 press nuts - M8
1 tension pin

Surface:
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeve: Zinc plated
Press nuts: Zinc plated

Tip:
Compatible Cover Cap for C-slide Profile I (Set) see 091401S01
Ready Bearing Unit PA 1 Roller for C-Rail-Profile I Slot Ø 14 see 093CAU081A128S01

Zolltarifnummer:
84832000000
Model: Pre-assembled, plastic PA
Pack Quantity: 1 set
Weight (g): 171.7

Variants

Product ID Profile
093CA081119S01 I
