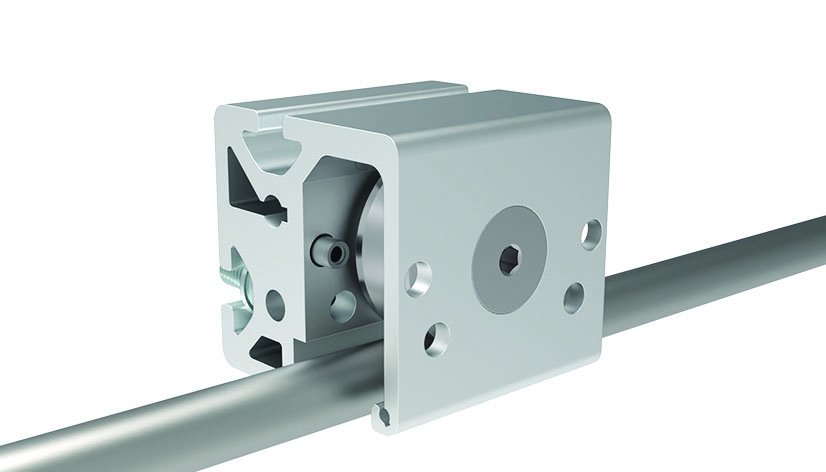

Bearing Unit 1 Roller Centric Shaft Ø 14
Product number:
093CIUD141060S02
Product information "Bearing Unit 1 Roller Centric Shaft Ø 14"
Delivery Countries:
Worldwide
Description:
To build sliding carriages
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm
Completely pre-assembled from roller profile I slot 8
Material:
Roller: Steel
Screws: Steel
Washers: Steel
Tension pins: Steel
Profile: Aluminum
Surface:
Roller: Zinc plated
Screws: Zinc plated
Washers: Zinc plated
Tension pins: Zinc plated
Profile: Anodized
Tip:
Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
Worldwide
Description:
To build sliding carriages
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm
Completely pre-assembled from roller profile I slot 8
Material:
Roller: Steel
Screws: Steel
Washers: Steel
Tension pins: Steel
Profile: Aluminum
Surface:
Roller: Zinc plated
Screws: Zinc plated
Washers: Zinc plated
Tension pins: Zinc plated
Profile: Anodized
Tip:
Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01
| Customs Tariff Number Export: | 84832000 |
|---|---|
| Model: | Pre-assembled, steel |
| Pack Quantity: | 1 piece |
| Weight (g): | 450.5 |
| Zolltarifnummer: | 84832000000 |
| pA Number: | 147278 |
