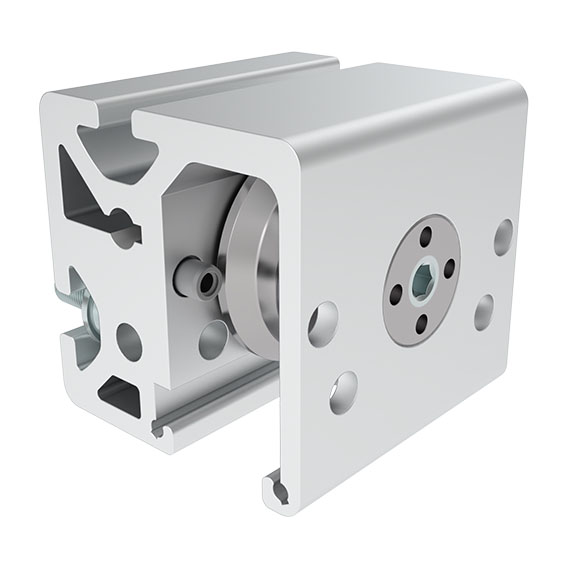

Bearing Unit 1 Roller Eccentric Shaft Ø 14

Product information "Bearing Unit 1 Roller Eccentric Shaft Ø 14"

Delivery Countries:
Worldwide

Description:
To build sliding carriages
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm
Completely pre-assembled from roller profile I slot 8
To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer

Material:
Roller: Steel
Screws: Steel
Excentric screw: Steel
Adjusting washer: Steel
Washers: Steel
Tension pins: Steel
Profile: Aluminum

Surface:
Roller: Zinc plated
Screws: Zinc plated
Excentric screw: Zinc plated
Adjusting washer: Zinc plated
Washers: Zinc plated
Tension pins: Zinc plated
Profile: Anodized

Tip:
Compatible Wiper and Lubricator Ø 14 for Roller Profile I Slot 8 (Set) see 091381S01

Zolltarifnummer:
84832000000
Model: Pre-assembled, steel
Pack Quantity: 1 piece
Weight (g): 450.2

Variants

Product ID Profile
093CIUD141060S01 I
