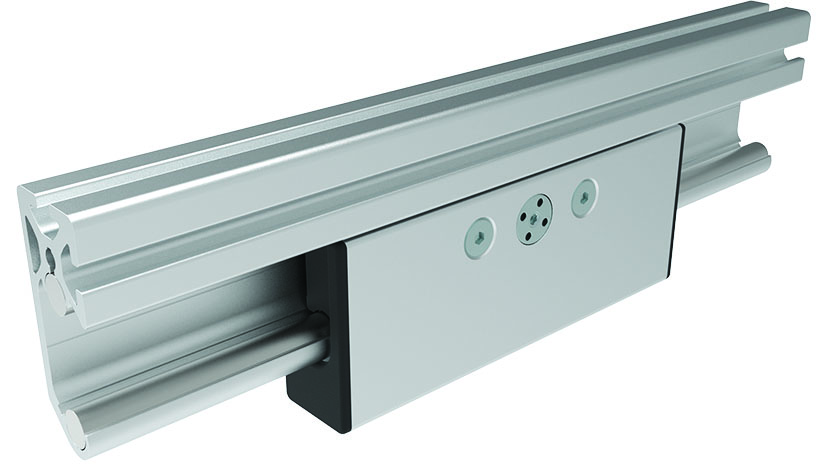

Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I

Product information "Bearing Unit 3 Rollers Shaft Ø 14 for C-Rail-Profile I"

Color:
Wiper and lubricators: Black
Cover caps: Black

Delivery Countries:
Worldwide

Description:
To build sliding doors
To linearly guide loads, steel roller with ball bearings runs directly on shaft Ø 14 mm

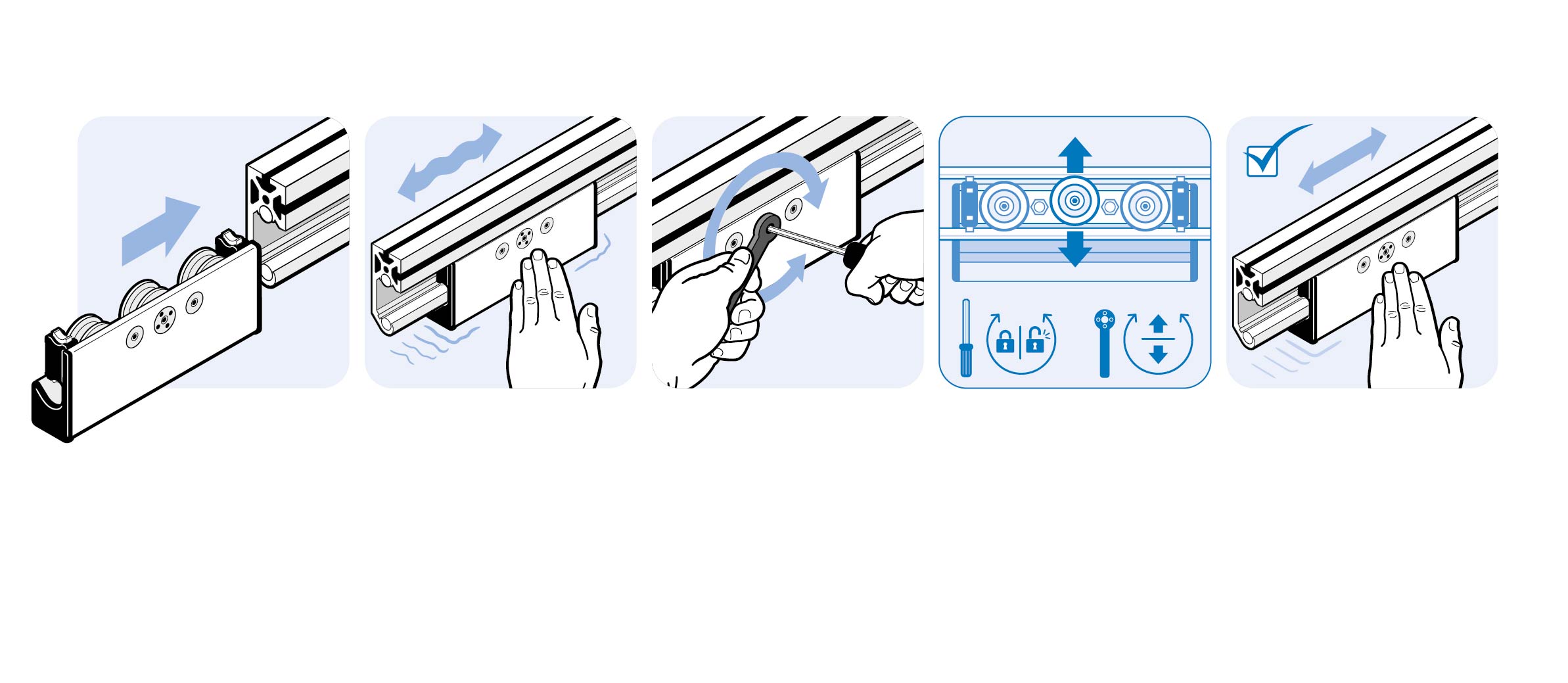

To tighten the eccentric screw, a pin spanner is needed for the four holes of the adjusting washer

Material:
Rollers: Steel
Carrier plate: Steel
Screws: Steel
Threaded sleeves: Steel
Press nuts: Steel
Excentric screw: Steel
Adjusting washer: Steel
Tension pin: Steel
Wiper and lubricators: Plastic PA / felt / spring steel
Wood screws: Steel
Profile: Aluminum
Cover caps: Plastic PA, glass fibre reinforced

Surface:
Rollers: Zinc plated
Carrier plate: Zinc plated
Screws: Zinc plated
Threaded sleeves: Zinc plated
Press nuts: Zinc plated
Excentric screw: Zinc plated
Adjusting washer: Zinc plated
Tension pin: Zinc plated
Wood screws: Zinc plated
Profile: Anodized

Zolltarifnummer:
84832000000
Model: Pre-assembled, steel
Pack Quantity: 1 piece
Weight (g): 801.0

Variants

Product ID Profile
093CIUD141SA208S01 I
