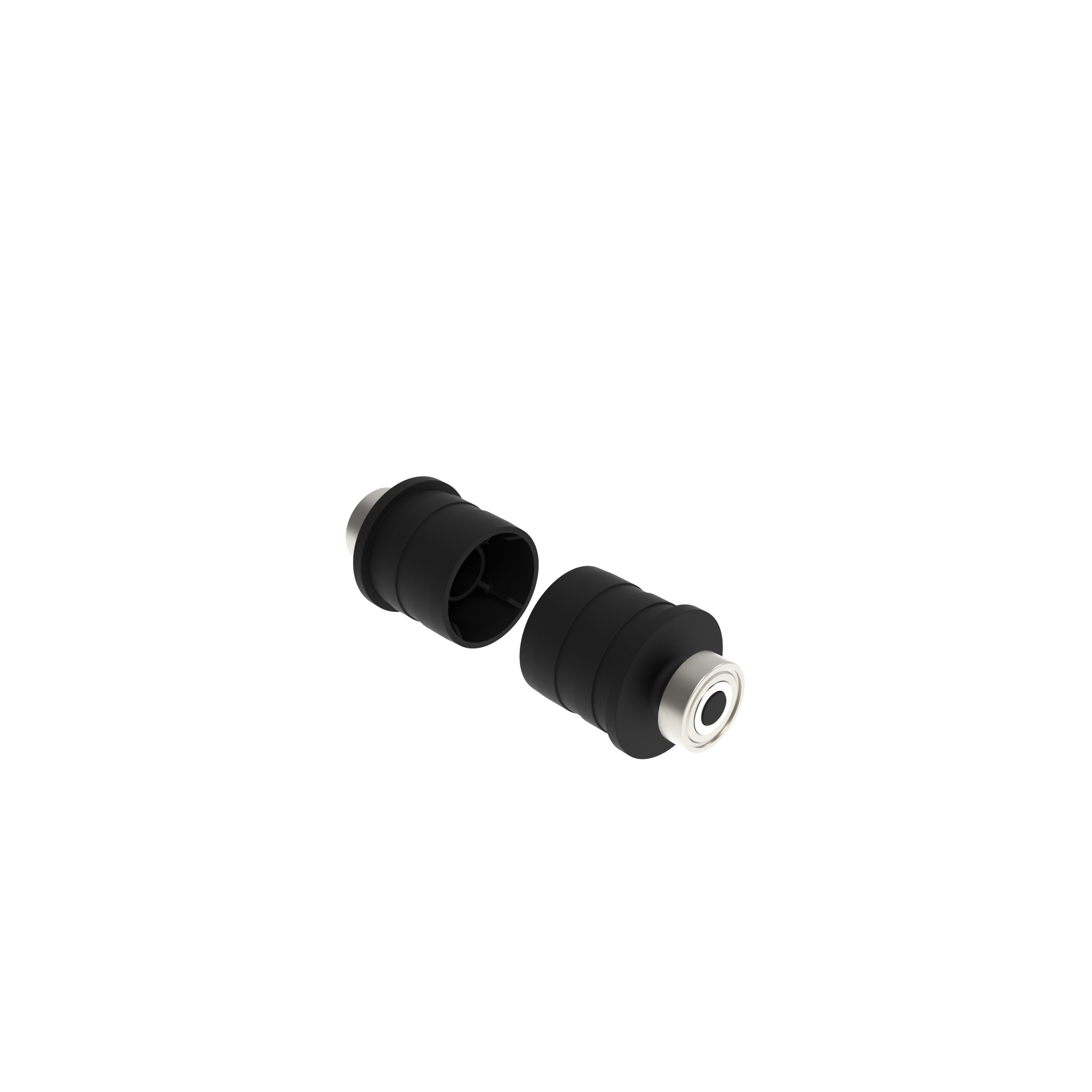

Bearing for Support Roller I D32

Product information "Bearing for Support Roller I D32"

Color:
Housing: Black

Delivery Countries:
Worldwide

Description:

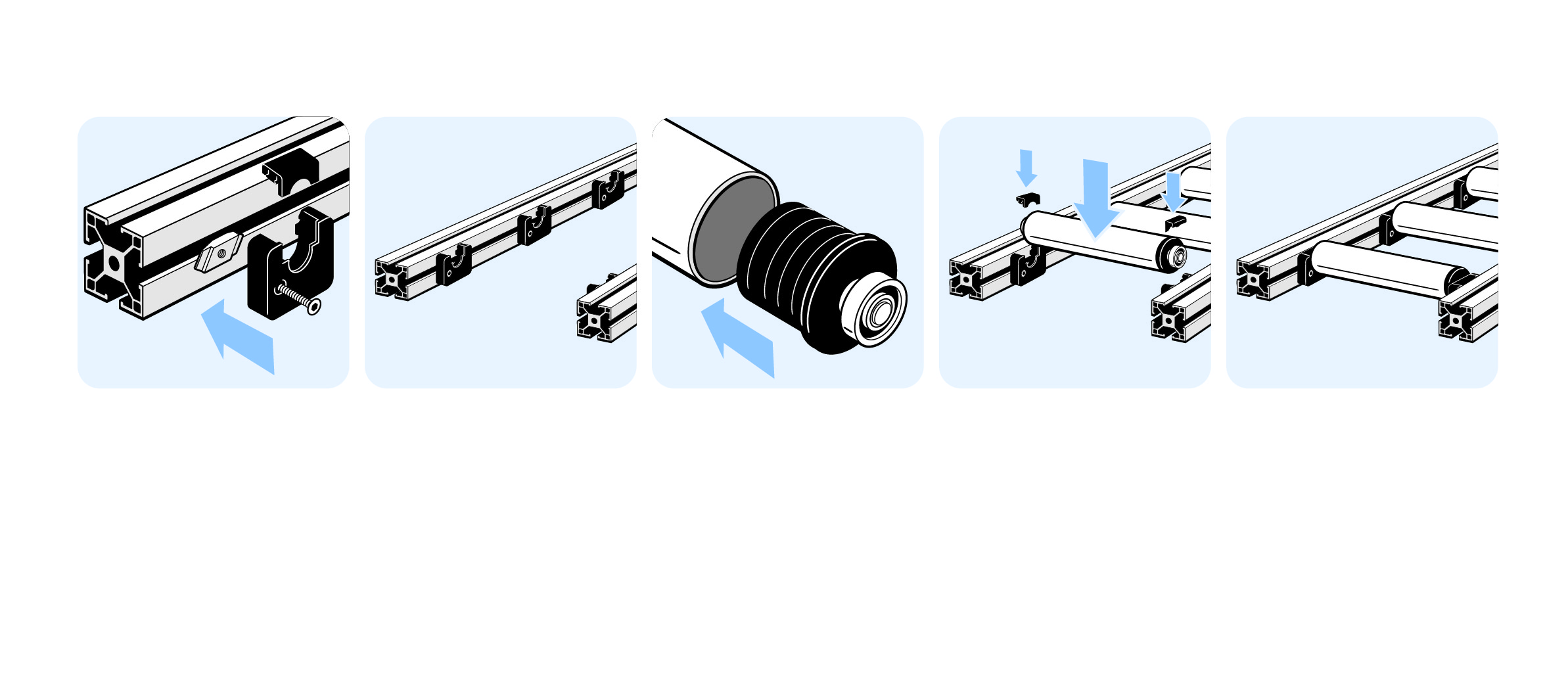

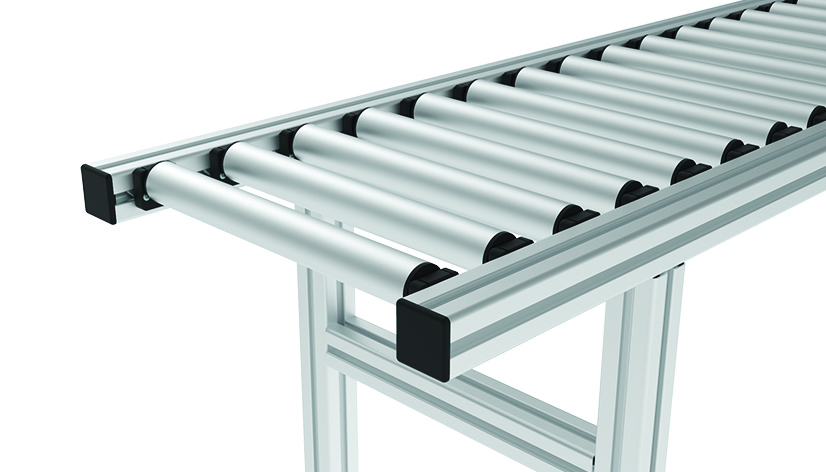

To build a support roller from one piece of tube D32 made of aluminum or plastic;
The lateral ball bearings are inserted in two bearing blocks on the aluminum profiles

Material:
Housing: Plastic PA, glass fiber reinforced
Ball bearings: Steel

Set:
2 Bearings for support roller I D32

Tip:
Compatible bearing block see 062CIAK

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23059090
(ECLASS 7.0): 23059090
(ECLASS 8.0): 23059090
(ECLASS 9.0): 23059090
(ECLASS 10.0): 23059090
(ECLASS 11.0): 23059090
(ECLASS 12.0): 23059090
(ECLASS 13.0): 23059090
Model: With ball bearings
Pack Quantity: 2 pieces
Weight (g): 20.4

Variants

Product ID Profile
062CIL11K I
