Bolt Connector I, Slot 8, Single Side

Product information "Bolt Connector I, Slot 8, Single Side"

Delivery Countries:
Worldwide

Description:

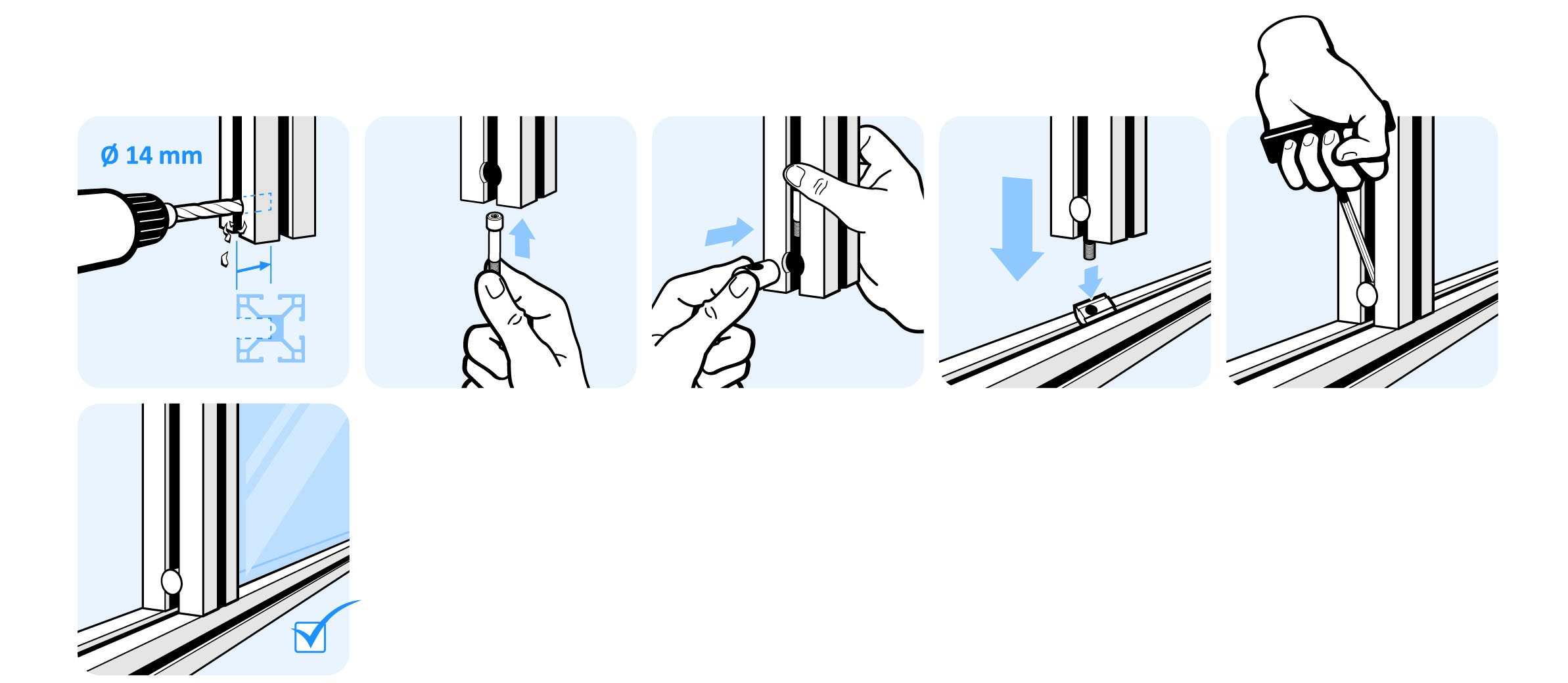

To connect two aluminum profiles at right angles; a hole with Ø 14 mmmust be drilled lateral through one of the profiles

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Slot 8, single side
Pack Quantity: 10 pieces
Weight (g): 39.5

Variants

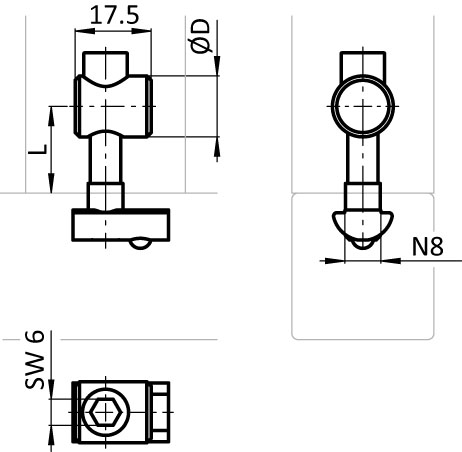

Product ID Screw Profile SW (mm) L (mm) ØD (mm)
099C404 M8 x 35 I 6.0 20.0 14.0

CAD Downloads

Certificates
