Bolt Connector I, Slot 8

Product information "Bolt Connector I, Slot 8"

Delivery Countries:
Worldwide

Description:

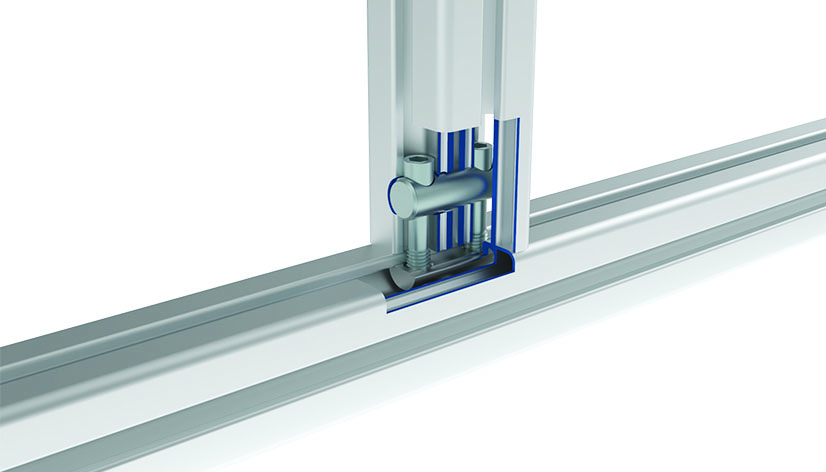

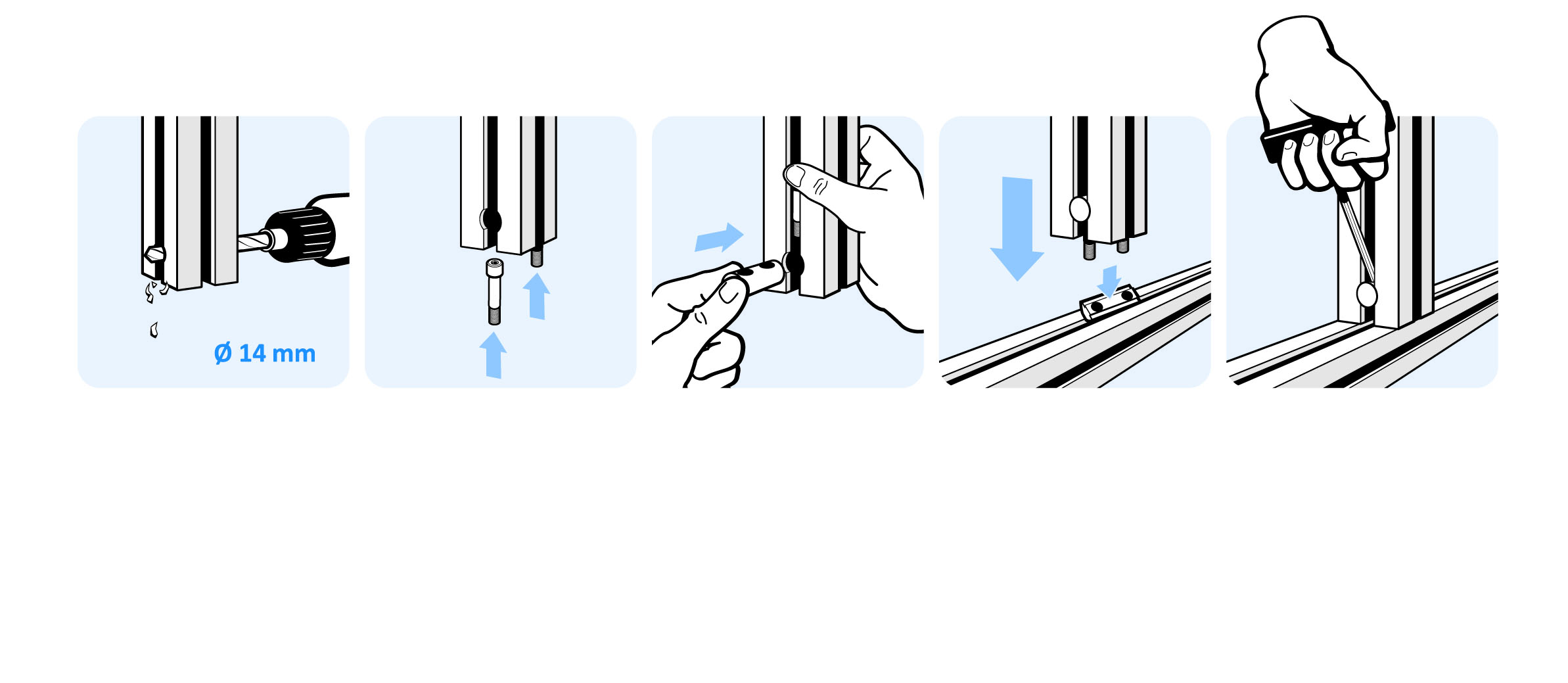

To connect two aluminum profiles at right angles; a hole with Ø 14 mmmust be drilled lateral through one of the profiles

Material:
Steel

Surface:
Zinc plated

Zolltarifnummer:
73269098900
Model: Slot 8
Pack Quantity: 10 pieces
Weight (g): 79.5

Variants

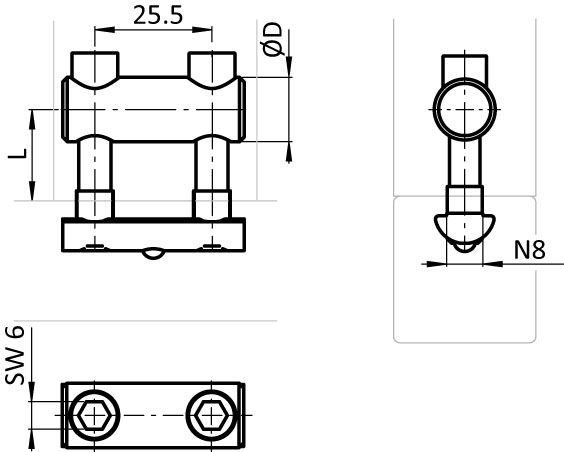

Product ID Screw Profile SW (mm) B (mm) A (mm) ØD (mm)
099C403 M8 x 35 I 6.0 25.5 39.5 14.0
099C802 M8 x 35 I 6.0 65.5 79.5 14.0
