Bolt Connector, Slot 10
Product number:
099C501
Product information "Bolt Connector, Slot 10"
Delivery Countries:
Worldwide
Description:

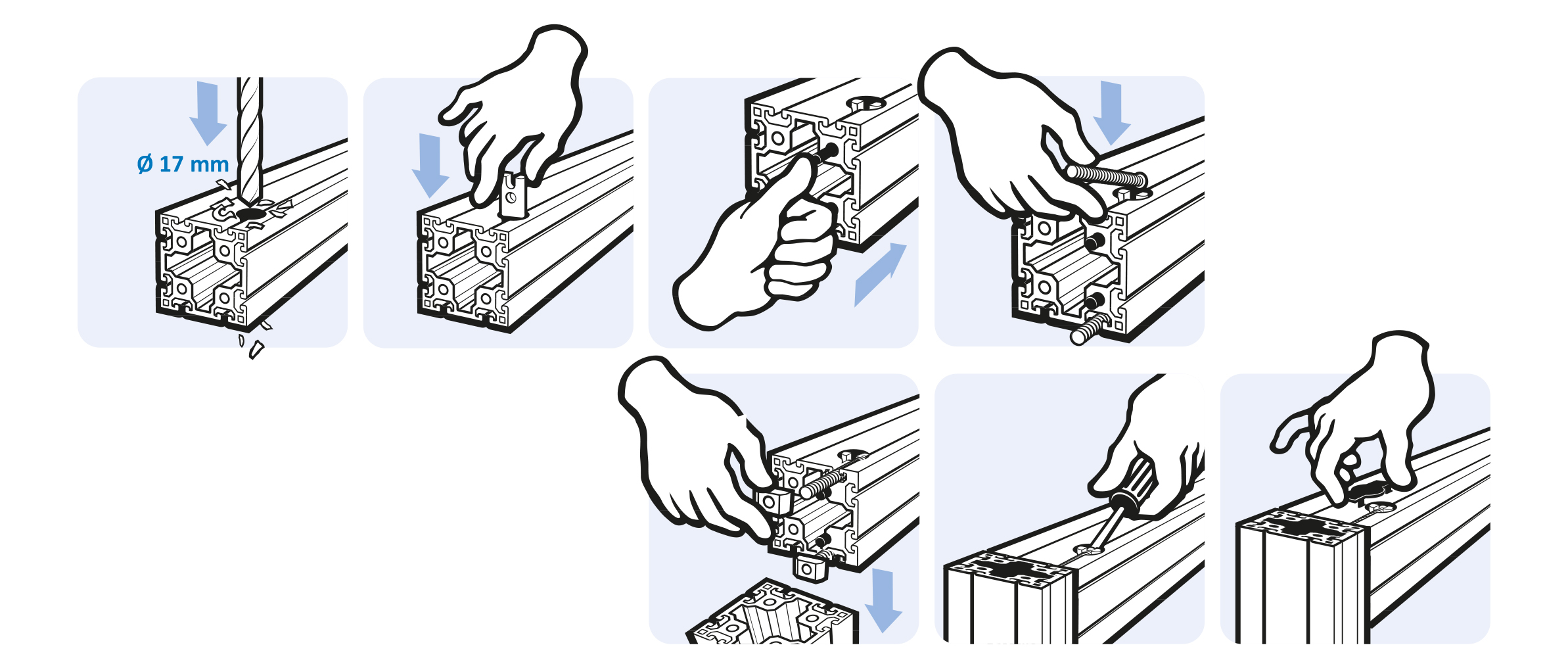

To connect two aluminum profiles at right angles; a 17 mm through-hole must be drilled through the side of one profile
Material:
Base element: Steel
Screws: Steel
Fixing bolts: Plastic PA, glass fiber reinforced
Screw cover: Plastic PA, glass fiber reinforced
Surface:
Zinc plated
Worldwide
Description:
To connect two aluminum profiles at right angles; a 17 mm through-hole must be drilled through the side of one profile
Material:
Base element: Steel
Screws: Steel
Fixing bolts: Plastic PA, glass fiber reinforced
Screw cover: Plastic PA, glass fiber reinforced
Surface:
Zinc plated
| (ECLASS 6.0): | 23360290 |
|---|---|
| (ECLASS 7.0): | 23360290 |
| (ECLASS 8.0): | 23360290 |
| (ECLASS 9.0): | 23360290 |
| (ECLASS 10.0): | 23360290 |
| (ECLASS 11.0): | 23360290 |
| (ECLASS 12.0): | 23360290 |
| (ECLASS 13.0): | 23360290 |
| Customs Tariff Number Export: | 73269098 |
| Model: | Slot 10 |
| Pack Quantity: | 10 pieces |
| Weight (g): | 81.0 |
| Zolltarifnummer: | 73269098900 |
| pA Number: | 132062 |
