Bolt Connector, Slot 8 / D=8.2

Product information "Bolt Connector, Slot 8 / D=8.2"

Color:
Fixing bolts: Black
Screw cover: Black

Delivery Countries:
Worldwide

Description:

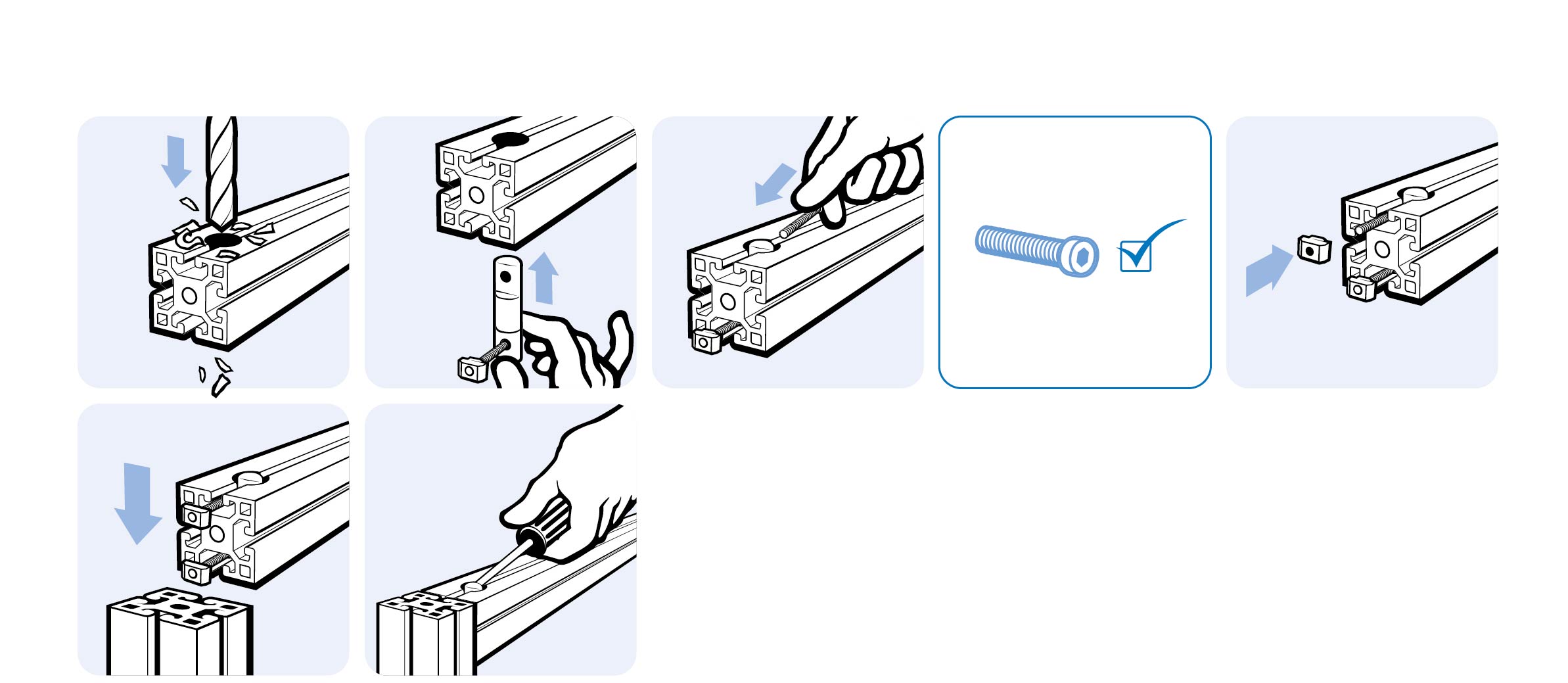

To connect two aluminum profiles at right angles; a 8.2 mm through-hole must be drilled through the side of one profile

Material:
Bolts and screws: Steel
Fixing bolts: Plastic PA, glass fiber reinforced
Screw cover: Plastic PA, glass fiber reinforced

Surface:
Bolts and screws: Zinc plated

Zolltarifnummer:
73269098900
Model: Slot 8
Pack Quantity: 10 pieces
Weight (g): 21.5

Variants

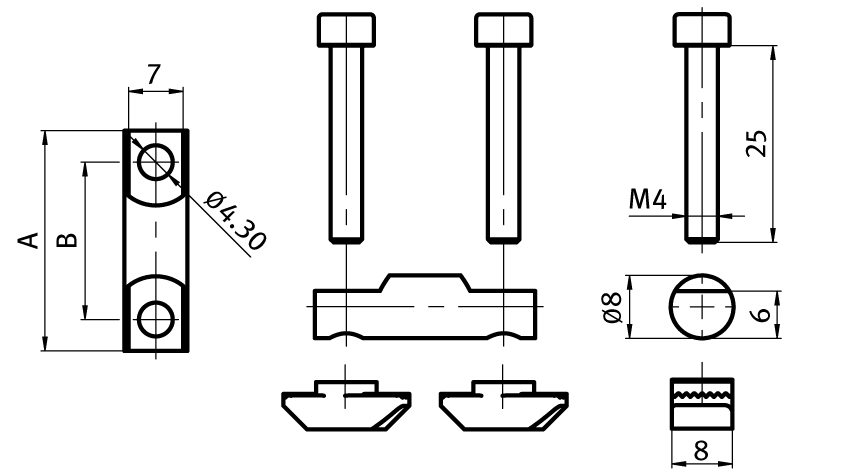

Product ID Profile A (mm) B (mm)
099C301 B 28.0 20.0

CAD Downloads

Certificates
