Bridge Handle 152

Product information "Bridge Handle 152"

Color:
Black, yellow

Delivery Countries:
Worldwide

Description:

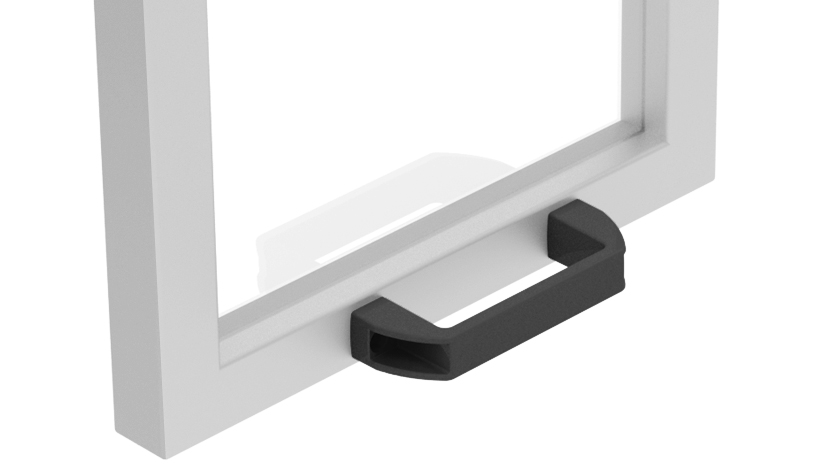

To mount on doors, flaps and aluminum profiles

Material:
Plastic PA, glass fiber reinforced

Specials:
Other colors on request
(ECLASS 6.0): 23010103
(ECLASS 7.0): 23010103
(ECLASS 8.0): 23010103
(ECLASS 9.0): 23010103
(ECLASS 10.0): 23010103
(ECLASS 11.0): 23010103
(ECLASS 12.0): 23010103
(ECLASS 13.0): 23010103
Customs Tariff Number Export: 39269097
Fastening: From the front, using socket head screws; from the back using inserted hexagon nuts or hexagon cap screws
Model: Plastic PA, 152 mm
Pack Quantity: 10 pieces
Weight (g): 75.9
Zolltarifnummer: 39269097900
pA Number: 100247

Variants

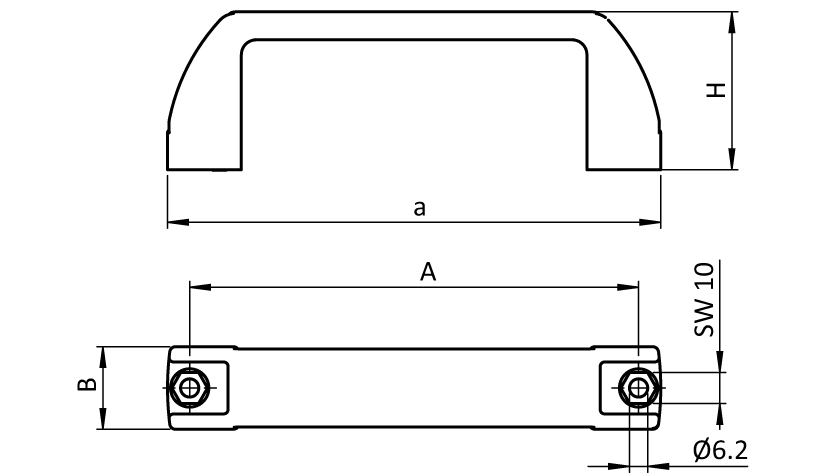

Product ID Color for Nut for Screw a (mm) A (mm) B (mm) H (mm) ESD
092002 Black SW10 (M6) M6 167.0 152.0 28.0 53.5
092002S03 Yellow ≈ RAL 1023 SW10 (M6) M6 167.0 152.0 28.0 53.5
092002S04 Black SW10 (M6) M6 167.0 152.0 28.0 53.5 ESD electrostatical discharging
