Bridge Handle AL

Description:

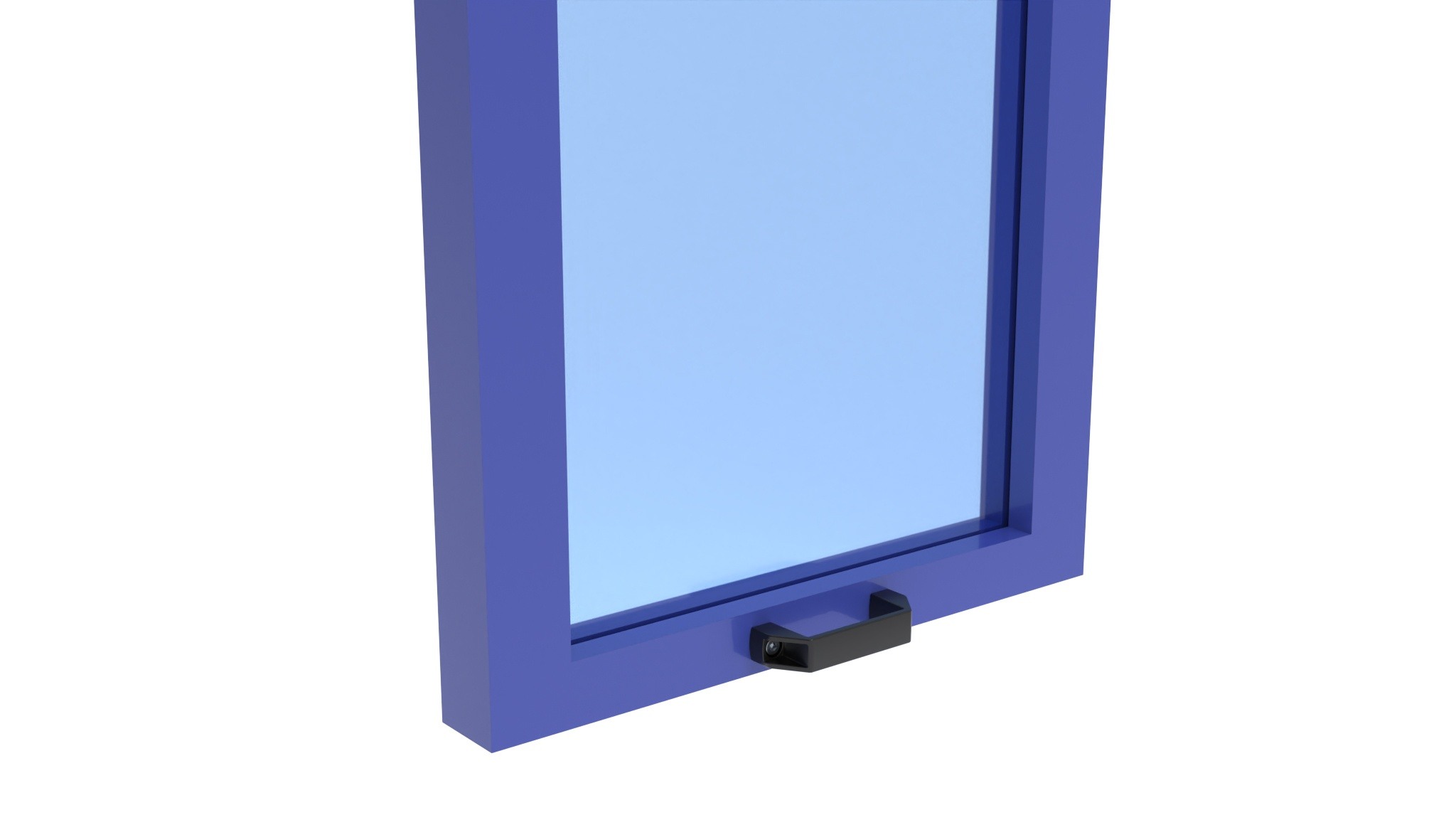

To mount on doors, flaps and aluminum profiles
Material:
Aluminum

Surface:
Powder coated

Color:
Black

Fastening:
From the front, using socket head screws; from the back using inserted hexagon nuts or hexagon cap screws

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Pack Quantity: 10 pieces
Weight (g): 92.5
ERP Number: 121938

Variants

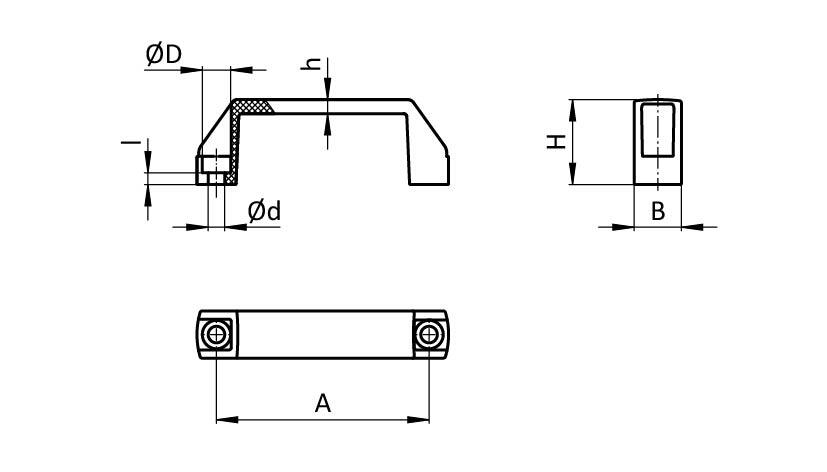

Part # H (mm) A (mm) B (mm) h (mm) Ød (mm) ØD (mm) for Screw l (mm) CAD
36.0 90.0 20.0 6.0 7.0 12.0 M6 5.0
40.0 120.0 26.0 7.0 8.3 15.0 M8 6.0
50.0 180.0 28.0 8.0 8.1 14.0 M8 9.0

Classifications

ECLASS 6.0
23010103
ECLASS 7.0
23010103
ECLASS 8.0
23010103
ECLASS 9.0
23010103
ECLASS 10.0
23010103
ECLASS 11.0
23010103
ECLASS 12.0
23010103
ECLASS 13.0
23010103
Zolltarifnummer
83024900990
Customs Tariff Number Export
83024900

Certificates

Tags

Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
