Bridge Handle B

Product information "Bridge Handle B"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:

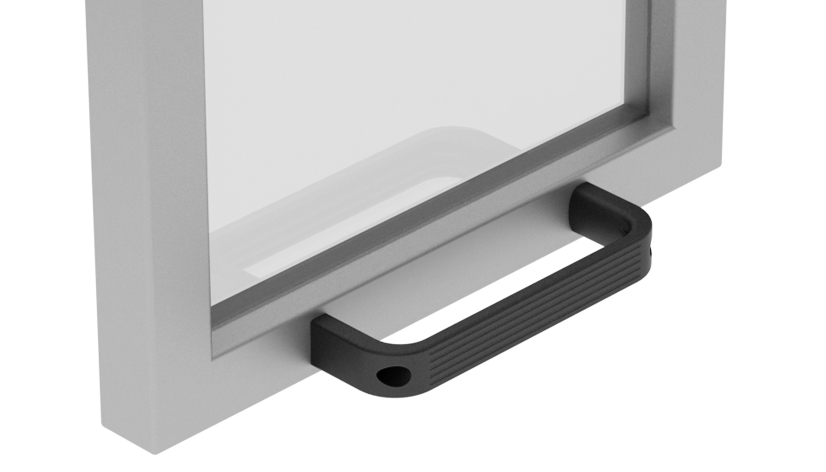

To mount on doors, flaps and aluminum profiles

Fastening:
From the front, using socket head screws

Material:
Plastic PA, glass fiber reinforced

Specials:
Other colors on request

Pack Quantity:	10 pieces
Model:	Plastic PA
Weight (g):	65.3
ERP Number:	127169

Global keywords / tags:

Profile Type	Profile Type B, Profile Type I
Product Feature	ESD
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering

Variants

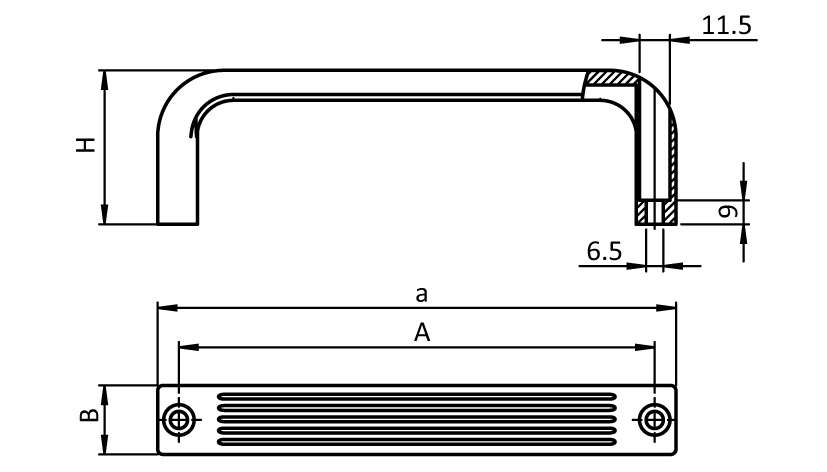

Part #	Version	H (mm)	A (mm)	B (mm)	ESD	Color	for Screw	a (mm)
092307	195	58.0	179.0	26.0	-	Black	M6	195.0
092307S01	195	58.0	179.0	26.0	ESD electrostatical discharging	Black	M6	195.0
092307S02	195	58.0	179.0	26.0	-	Gray ≈ RAL 7004	M6	195.0
092308	133	50.0	118.0	26.0	-	Black	M6	133.0
092308S01	133	50.0	118.0	26.0	ESD electrostatical discharging	Black	M6	133.0
092308S02	133	50.0	118.0	26.0	-	Gray ≈ RAL 7004	M6	133.0

CAD Downloads

Classifications

ECLASS 6.0: 23010103
ECLASS 7.0: 23010103
ECLASS 8.0: 23010103
ECLASS 9.0: 23010103
ECLASS 10.0: 23010103
ECLASS 11.0: 23010103
ECLASS 12.0: 23010103
ECLASS 13.0: 23010103
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates
