Brush Brake for Guiding Rail FIFO

Product information "Brush Brake for Guiding Rail FIFO"

Color:
Bristles: Black

Delivery Countries:
Worldwide

Description:

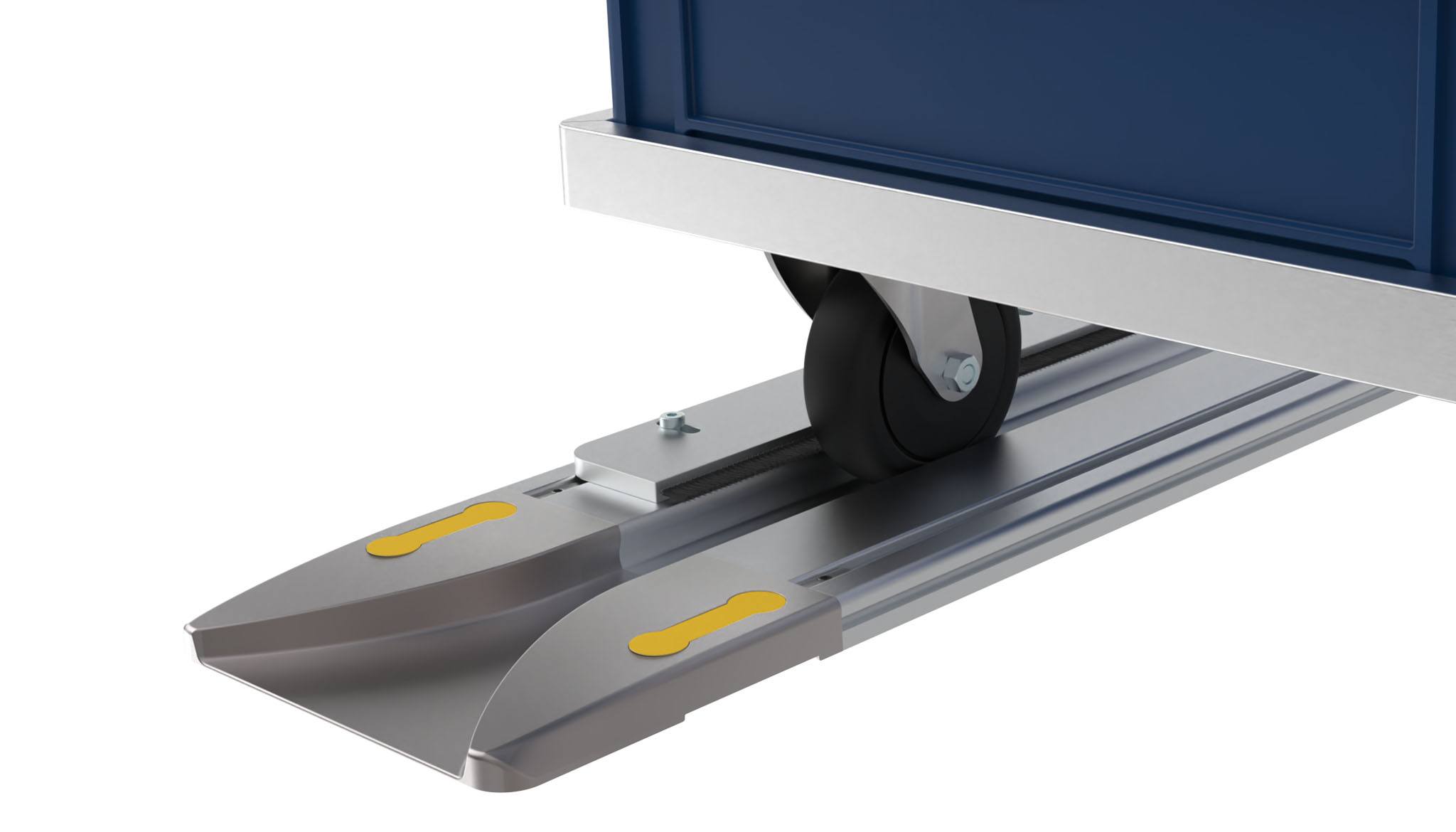

For braking and stopping dollies in guiding rails;
Variable fixable via slot of the guide rail FIFO

Material:
Body : Aluminum
Bristles: Plastics PA

Surface:
Body : Anodized

Tip:
Compatible Guiding Rail FIFO see 02082P.1200
(ECLASS 6.0): 21070390
(ECLASS 7.0): 21079290
(ECLASS 8.0): 21079290
(ECLASS 9.0): 21070392
(ECLASS 10.0): 21070392
(ECLASS 11.0): 21070492
(ECLASS 12.0): 21070492
(ECLASS 13.0): 21070492
Customs Tariff Number Export: 96035000

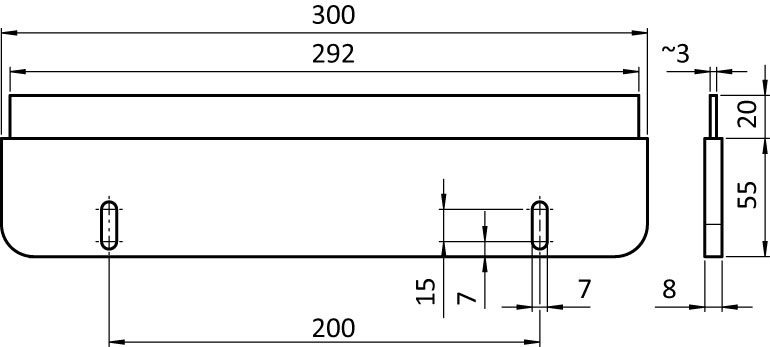

Dimensions: Total Length: 300 mm Length of the Bristles: 20 mm
Model: Aluminum, slot 8
Pack Quantity: 1 piece
Weight (g): 149.38
Zolltarifnummer: 96035000000
pA Number: 148083

Variants

Product ID
02082BB
