Clip Block 14, Gray

Product information "Clip Block 14, Gray"

Color:
Gray

Delivery Countries:
Worldwide

Description:

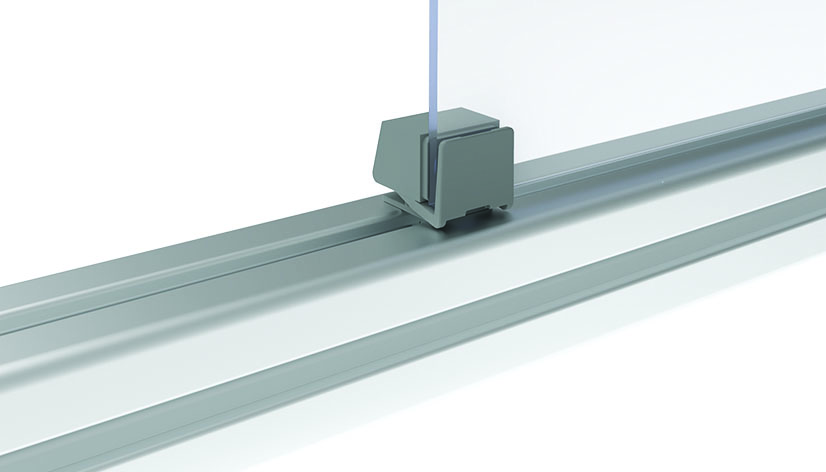

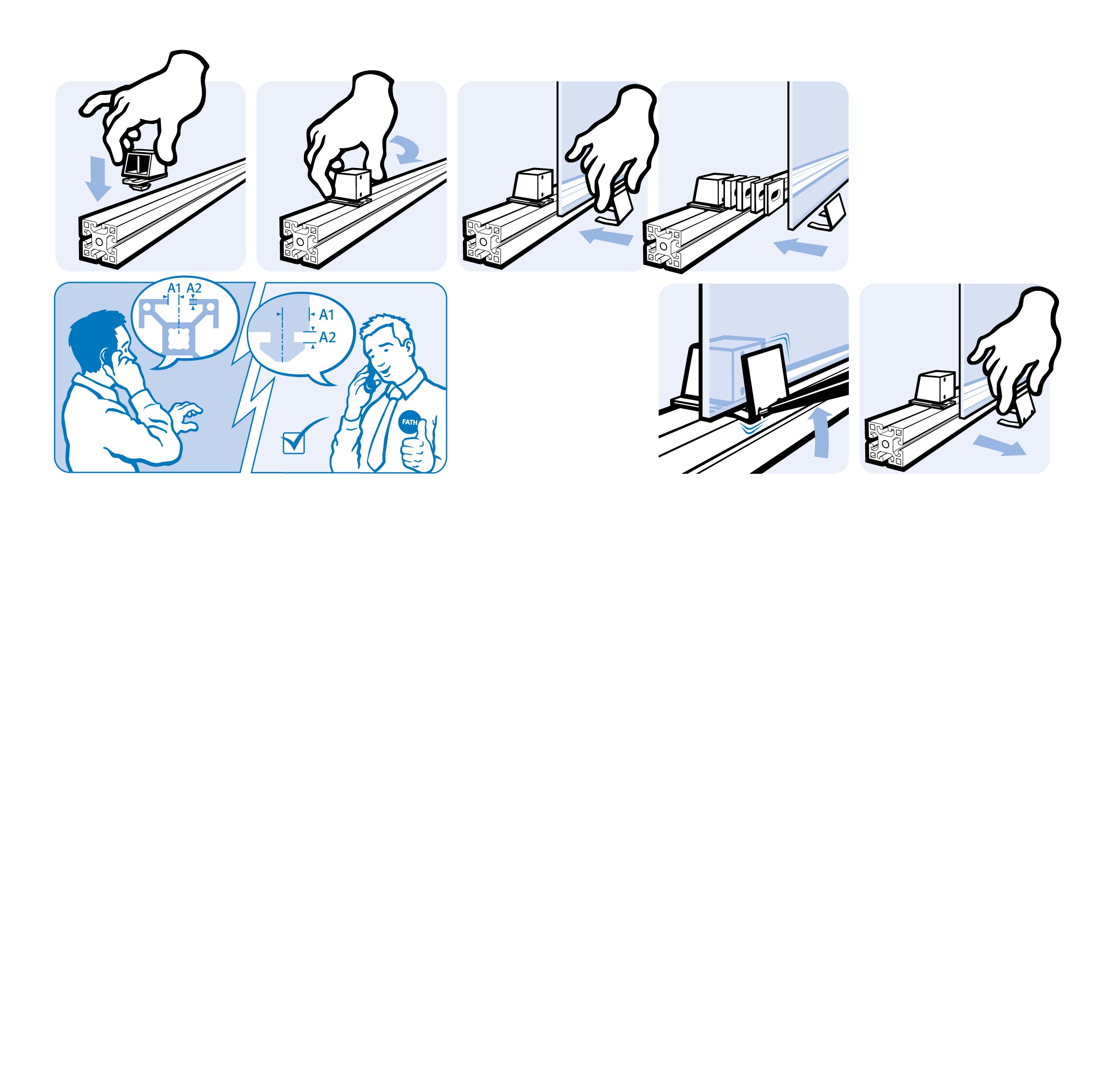

To attach panels to aluminum profiles without screws or tools

Material:
Plastic PA, glass fiber reinforced

Specials:
Customized hammer, other colors on request

Tip:
Compatible Spacer see 094102KS01
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Customs Tariff Number Export: 39269097
Fixation Span: Panel units with a thickness of 1 - 9 mm
Model: Plastic PA, Slot 8, 10
Pack Quantity: 100 pieces
Weight (g): 7.4
Zolltarifnummer: 39269097900
pA Number: 141318

Variants

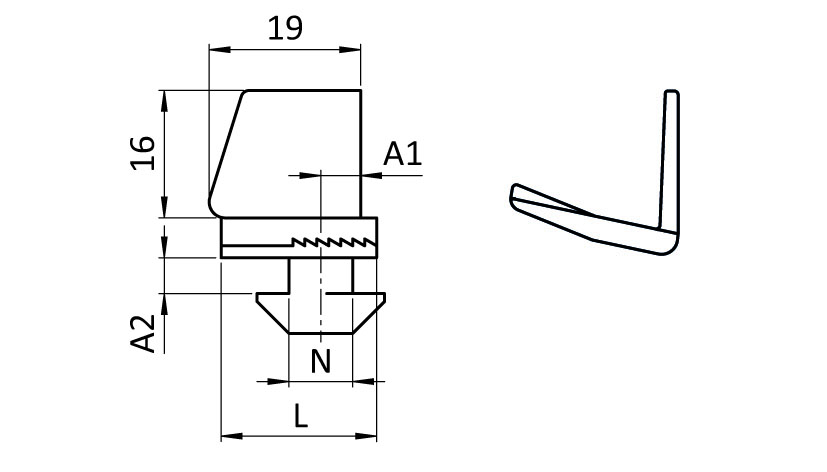

Product ID L (mm) Color Profile Fig. D (mm) Slot N (mm) A2 (Profile) (mm) A1 (mm)
094202S03 19.5 Gray ≈ RAL 7004 B 8 2.2 (2.2) 7.0
094203S05 26.0 Gray ≈ RAL 7042 I 8 4.5 (4.5) 11.5
094204S01 19.5 Gray ≈ RAL 7042 I 8 4.5 (4.5) 5.0
094205S04 26.0 Gray ≈ RAL 7004 B 10 5.8 (6.0) 14.0
