Clip Block 14 SL

Product information "Clip Block 14 SL"

Color:
Black

Delivery Countries:
Worldwide

Description:

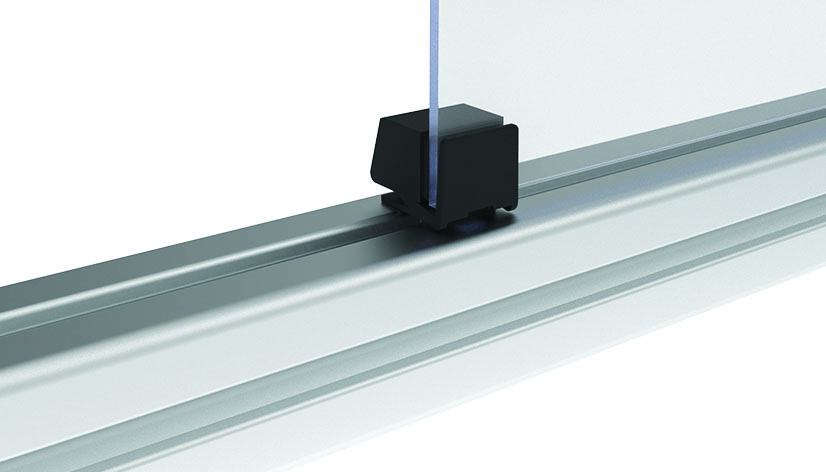

To attach panels easily to aluminum profiles without screws or tools; can only be opened with the special tool SL

Material:
Plastic PA, glass fiber reinforced

Specials:
Customized hammer, other colors on request

Tip:
Tool SL for Clip Block 14 SL see 0942SL

Tip 2:
Compatible Spacer see 094102K

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360492
(ECLASS 12.0): 23360492
(ECLASS 13.0): 23360492
Fixation Span: Panel units with a thickness of 1 - 9 mm
Model: Plastic PA, Slot 8, 10
Pack Quantity: 100 pieces
Weight (g): 7.0

Variants

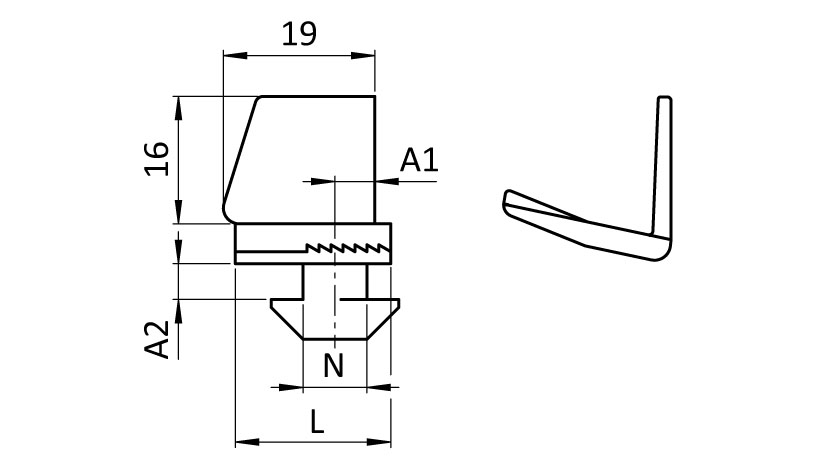

Product ID Color L (mm) A1 (mm) Profile Slot N (mm) A2 (Profile) (mm) D (mm)
094102K - 1 Black *2.0
094103K - 1 Black 3.0
094105K - 1 Black 5.0
094202SL 19.5 7.0 B 8 2.2 (2.2)
094203SL 26.0 11.5 I 8 4.5 (4.5)
094204SL 19.5 5.0 I 8 4.5 (4.5)
094205SL 26.0 14.0 B 10 5.8 (6.0)
