Clip Cable Binder - 2 chambers - with Hammer

Product information "Clip Cable Binder - 2 chambers - with Hammer"

Color:
Black, gray

Delivery Countries:
Worldwide

Description:

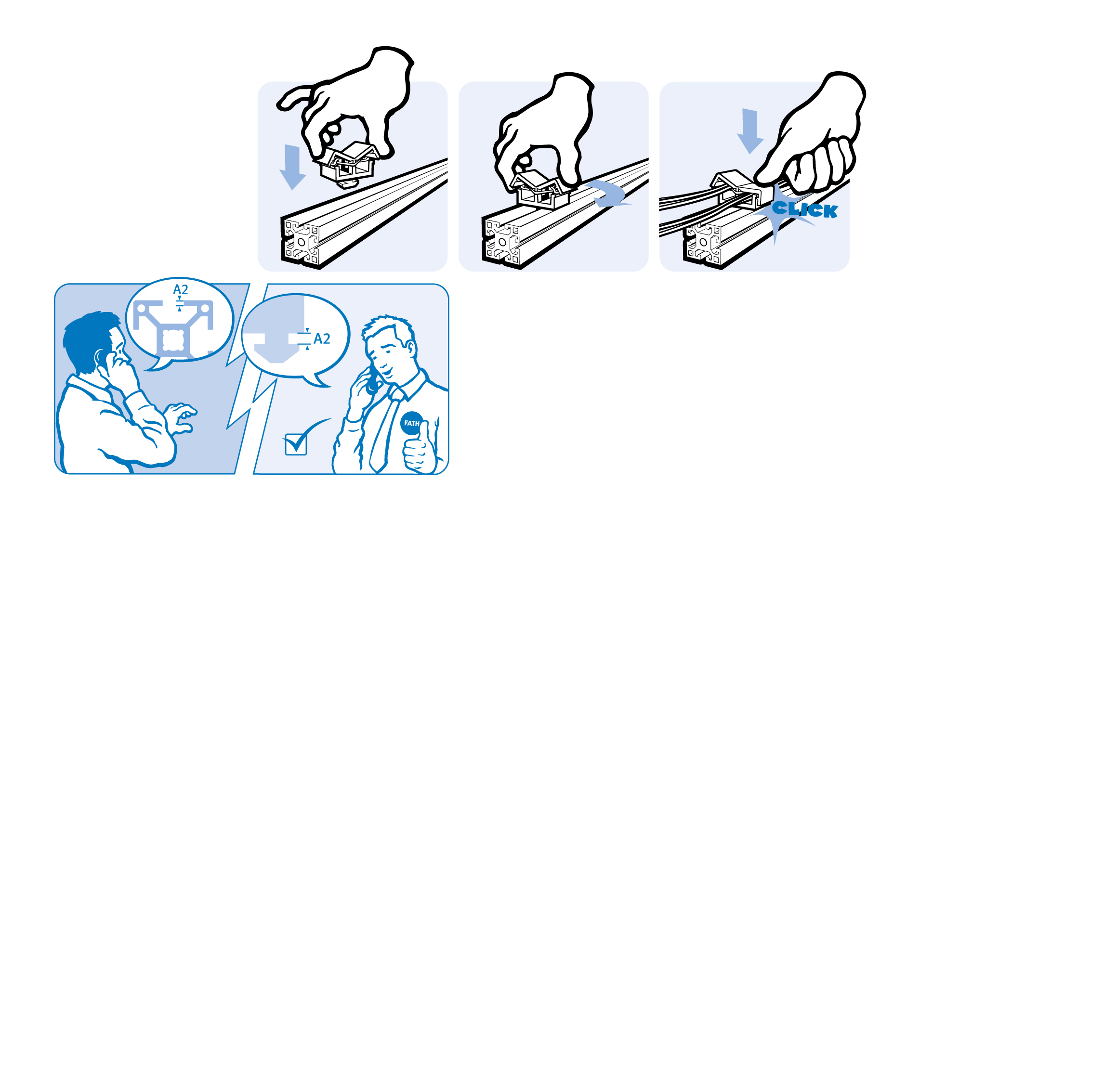

To fix cables without the need for cable ties, can be opened and closed again; can be mounted into the slot by a quarter turn

Material:
Clip: Plastic PA
Rubber: FPM 70

Specials:
Customized hammer, other colors on request

Zolltarifnummer:
39269097900
(ECLASS 6.0): 27140790
(ECLASS 7.0): 27140790
(ECLASS 8.0): 27140790
(ECLASS 9.0): 27140790
(ECLASS 10.0): 27140790
(ECLASS 11.0): 27140790
(ECLASS 12.0): 27140790
(ECLASS 13.0): 27140790

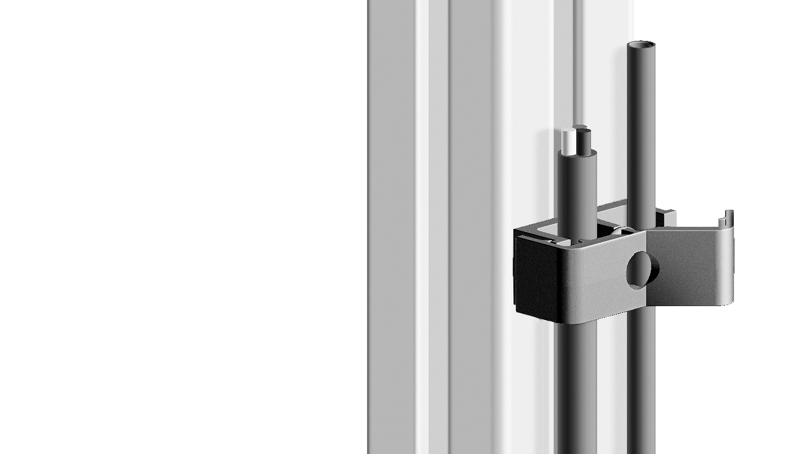

Model: 2 chamber fixation for cables and tubes
Pack Quantity: 10 pieces
Weight (g): 7.0

Variants

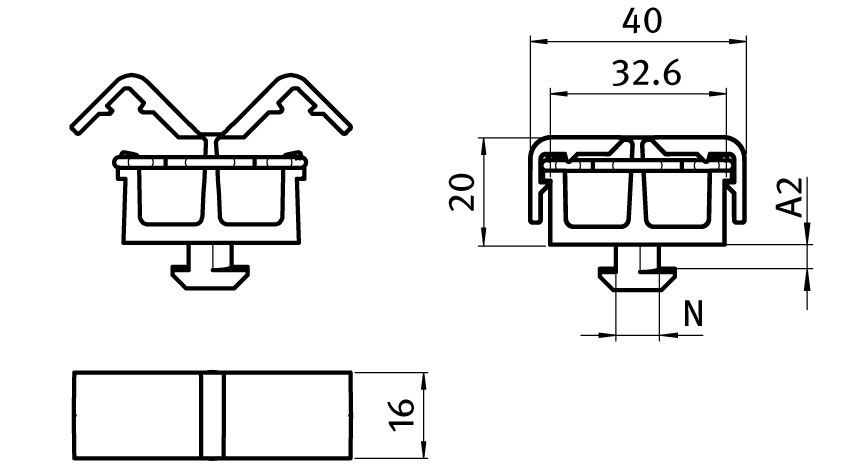

Product ID Color Slot N (mm) Profile A2 (Profile) (mm)
093402N08 Black 8 I 4.5 (4.5)
093402N08S02 Gray ≈ RAL 7042 8 I 4.5 (4.5)
093403N08 Black 8 B 2.0 (2.2)
093405N08 Black 8 4.0
093406N10 Black 10 B 5.9 (6.0)
093407N05 Black 5 I 1.8 (1.8)
093408N6,5 Black 6.5 (0.256“) 2.2
