Concealed Hinge Component

Description:
For panels and aluminum profiles, for individual assembly of concealed hinges

Material:
Aluminum

Surface:
Anodized

Fastening:

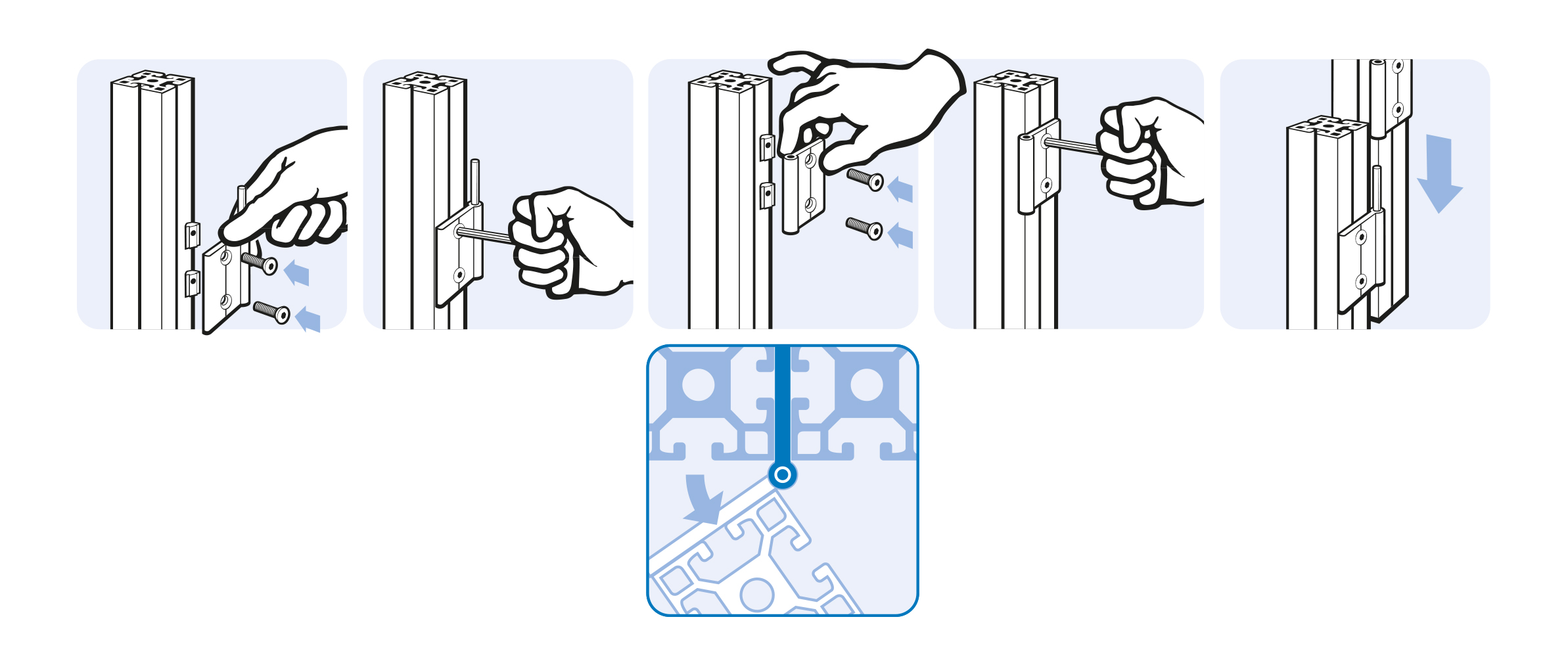

From the front, using countersunk screws

Tip:
Compatible Axle for Hinge Component see 095AIR01
Compatible Cover Cap for Hinge Component see 095AIA

Delivery Countries:
Worldwide / North America

Pack Quantity:	10 pieces
Model:	Aluminum, anodized
Weight (g):	18.0
ERP Number:	112598

Variants

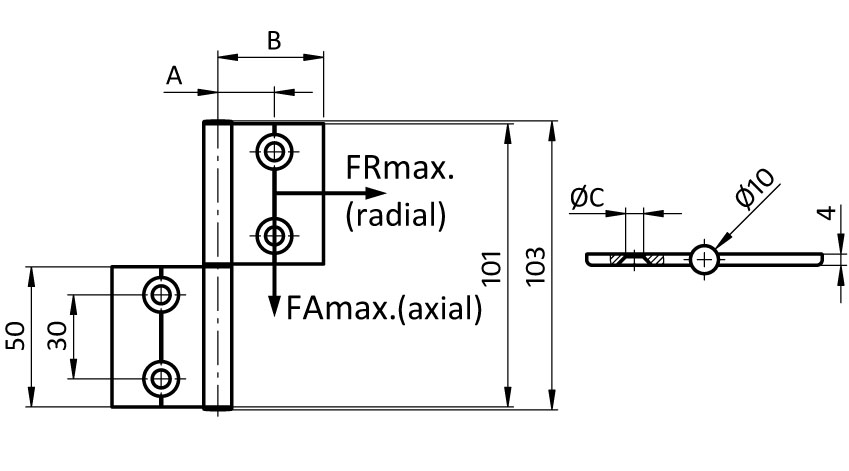

Part #	Version	A (mm)	B (mm)	C (mm)	FAmax (N)	FRmax (N)
095AI20	20	14.5	22.0	Ø 5.3	150	100
095AI25	25	17.5	28.0	Ø 6.4	150	100
095AI30	30	19.5	32.0	Ø 6.4	150	100
095AI40	40	25.0	42.0	Ø 6.4	150	100
095AI45	45	27.0	47.0	Ø 6.4	150	100
095AI50	50	29.5	52.0	Ø 6.4	150	100
095AI60	60	34.5	62.0	Ø 6.4	150	100
095AI38	38	21.1	40.1	Ø 6.4	150	100

Classifications

ECLASS 6.0: 23199090
ECLASS 7.0: 23199090
ECLASS 8.0: 23199090
ECLASS 9.0: 23199090
ECLASS 10.0: 23199090
ECLASS 11.0: 23211191
ECLASS 12.0: 23211191
ECLASS 13.0: 23211191
Zolltarifnummer: 83021000900
Customs Tariff Number Export: 83021000

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering
