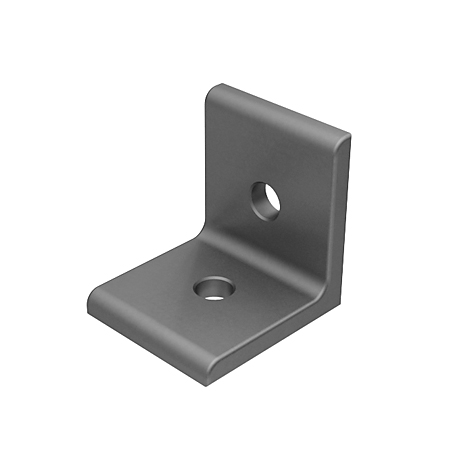

Connection Angle AL 2 Hole, 1 Slot Version

Product information "Connection Angle AL 2 Hole, 1 Slot Version"

Delivery Countries:
Worldwide

Description:

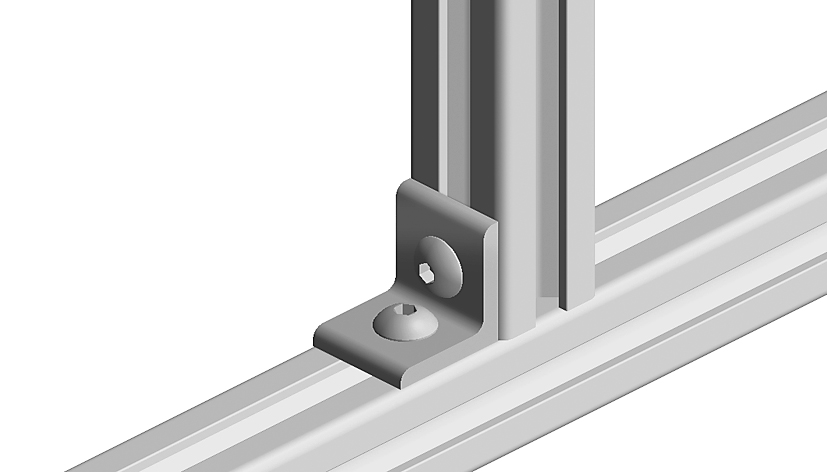

To connect two aluminum profiles at right angles

Material:
Aluminum

Surface:
Anodized

(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
Customs Tariff Number Export:	76169990
ERP Number:	119498
Model:	Aluminum
Pack Quantity:	10 pieces
Weight (g):	125.0
Zolltarifnummer:	76169990990

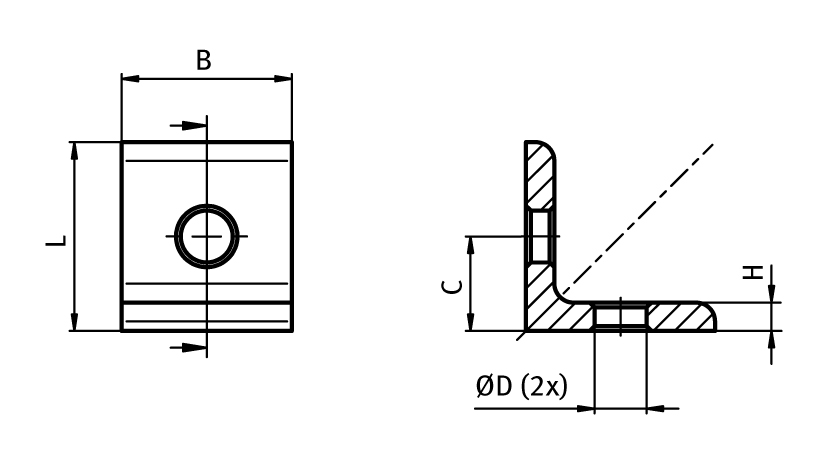

Product ID	C (mm)	H (mm)	ØD (mm)	Version	L (mm)	B (mm)
093WD20	10.0	3.0	5.5	20	20.0	18.0
093WD25	12.7 (0.5")	4.0	7.0	25.4 - (1")	25.4 (1")	25.4 (1")
093WD30	15.0	5.0	7.0	30	30.0	30.0
093WD38	19.0 (0.75")	6.0	9.0	38.1 - 1.5"	38.1 (1.5")	38.1 (1.5")
093WD40	20.0	6.0	9.0	40	40.0	36.0
093WD45	22.5	6.0	9.0	45	45.0	41.0
