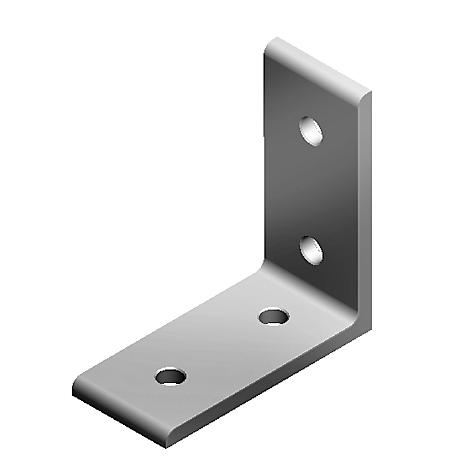

Connection Angle AL 4 Hole, 1 Slot Version

Product information "Connection Angle AL 4 Hole, 1 Slot Version"

Delivery Countries:
Worldwide / North America

Description:

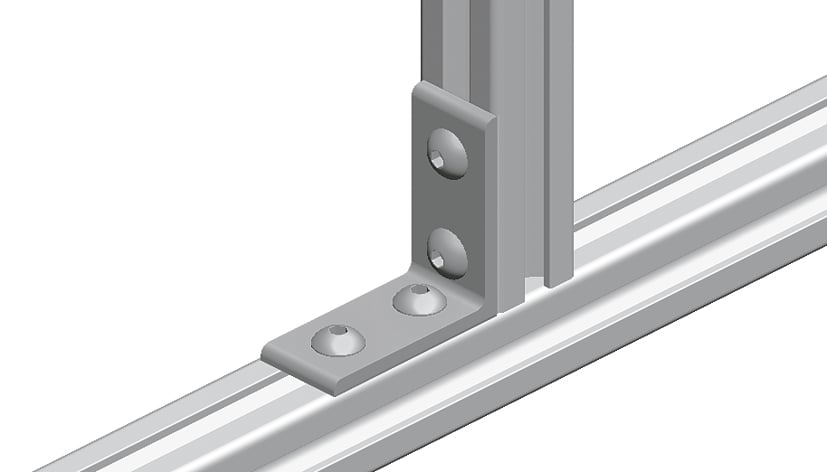

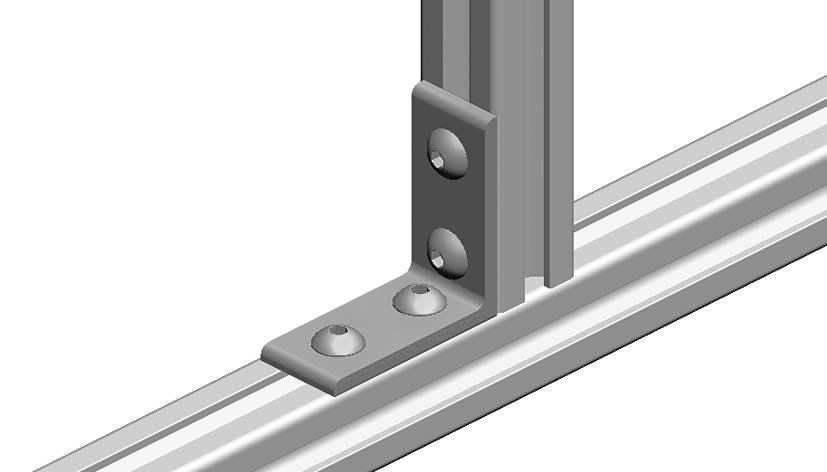

To connect two aluminum profiles at right angles

Material:
Aluminum

Surface:
Anodized

Profile Type:	Profile Type B, Profile Type I
Application Area:	Machinery & Plant Engineering
Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	85.0
ERP Number:	118304

Variants

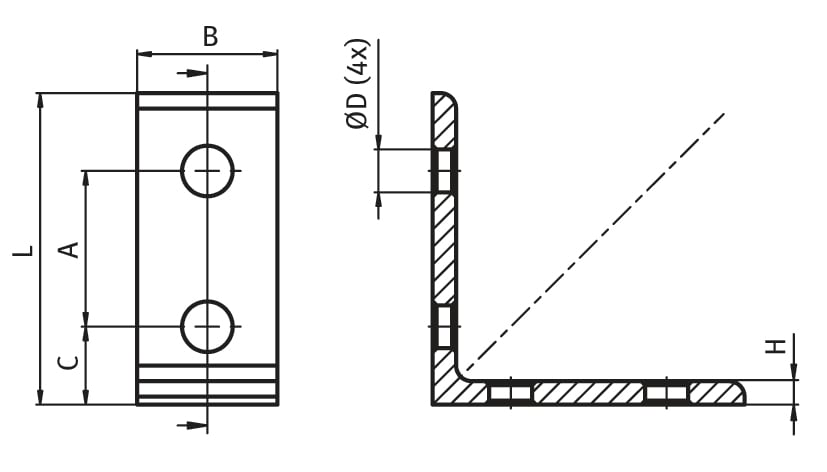

Part #	Version	H (mm)	A (mm)	B (mm)	C (mm)	L (mm)	ØD (mm)	Pack Quantity
093WD2040	20 / 40	3.0	20.0	18.0	10.0	40.0	5.5	50 pieces
093WD2551	25.4 x 50.8 - 1" x 2"	4.0	25.4 (1")	23.0 (0,91")	12.7 (0.5")	50.8 (2")	7.0	10 pieces
093WD3060	30 / 60	5.0	30.0	27.0	15.0	60.0	7.0	10 pieces
093WD3876	38 / 76 - 1.5" / 3"	6.0	38.1 (1.5")	34.0 (1.34")	19.0 (0.75")	76.2 (3")	9.0	10 pieces
093WD4080	40 / 80	6.0	40.0	36.0	20.0	80.0	9.0	10 pieces
093WD4590	45 / 90	6.0	45.0	41.0	22.5	90.0	9.0	10 pieces

CAD Downloads

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 76169990990
Customs Tariff Number Export: 76169990

Certificates

RoHS Certificate

REACH Certificate

POP Certificate

Conflict Minerals Certificate
