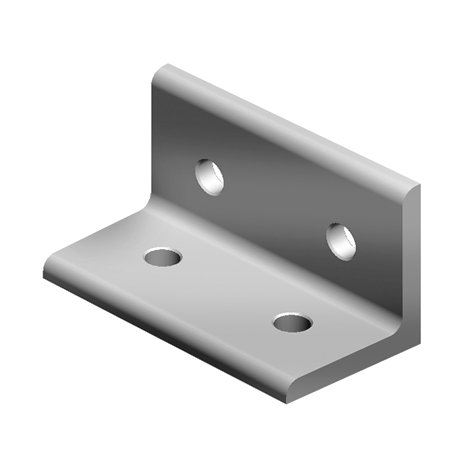

Connection Angle AL 4 Hole, 2 Slots Version

Product information "Connection Angle AL 4 Hole, 2 Slots Version"

Delivery Countries:
Worldwide / North America

Description:

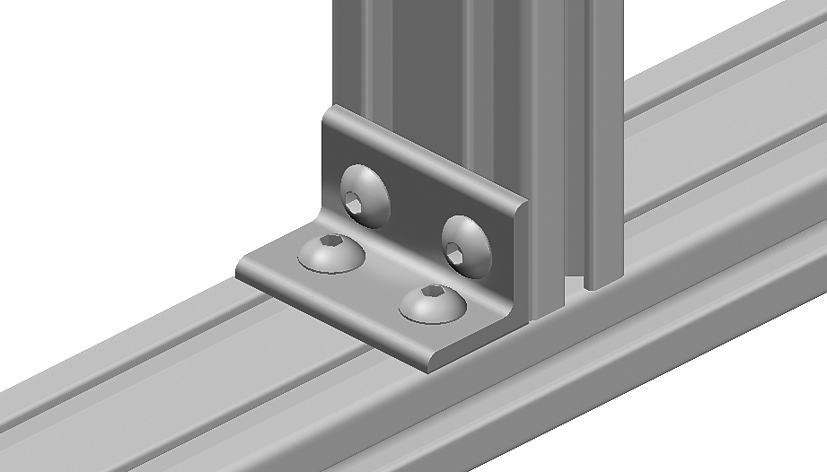

To connect two aluminum profiles at right angles

Material:
Aluminum

Surface:
Anodized

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	86.0
ECLASS 6.0:	23360290
ECLASS 7.0:	23360290
ECLASS 8.0:	23360290
ECLASS 9.0:	23360290
ECLASS 10.0:	23360290
ECLASS 11.0:	23360290
ECLASS 12.0:	23360290
ECLASS 13.0:	23360290
Zolltarifnummer:	76169990990
Customs Tariff Number Export:	76169990
ERP Number:	118402

Variants

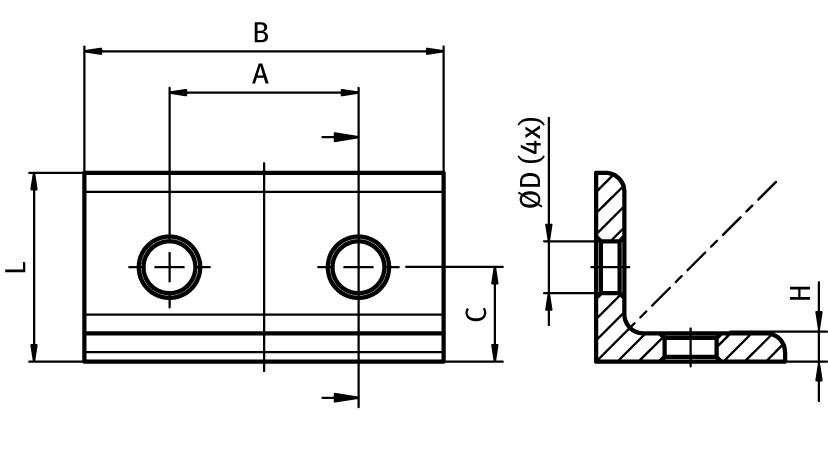

Part #	Version	H (mm)	A (mm)	B (mm)	C (mm)	L (mm)	ØD (mm)
093WD4020	40 / 20	3.0	20.0	38.0	10.0	20.0	5.5
093WD5125	50.8 / 25.4 - 2" / 1"	4.0	25.4 (1")	48.0 (1.89")	12.7 (0.5")	25.4 (1")	7.0
093WD6030	60 / 30	5.0	30.0	57.0	15.0	30.0	7.0
093WD7638	76.2 / 38.1 - 3" / 1.5"	6.0	38.1 (1.5")	72.0 (2.8")	19.0 (0.75"	38.1 (1.5")	9.0
093WD8040	80 / 40	6.0	40.0	76.0	20.0	40.0	9.0
093WD9045	90 / 45	6.0	45.0	86.0	22.5	45.0	9.0
