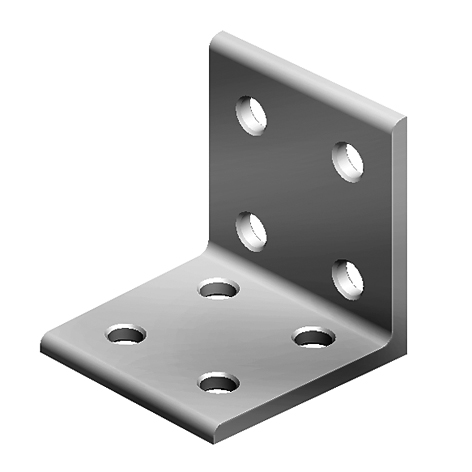

Connection Angle AL 8 Hole, 2 Slots Version

Product information "Connection Angle AL 8 Hole, 2 Slots Version"

Delivery Countries:
Worldwide / North America

Description:

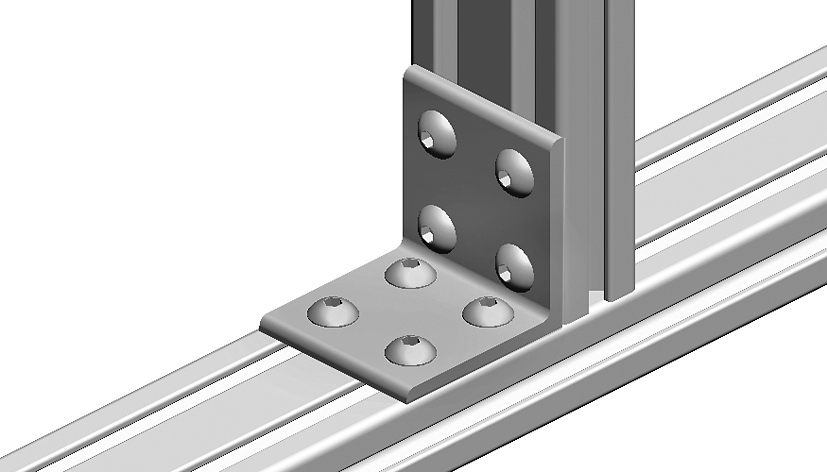

To connect two aluminum profiles at right angles

Material:
Aluminum

Surface:
Anodized

Profile Type:	Profile Type B, Profile Type I
Application Area:	Machinery & Plant Engineering
Pack Quantity:	10 / 50 pieces
Model:	Aluminum
Weight (g):	84.0
ERP Number:	119540

Variants

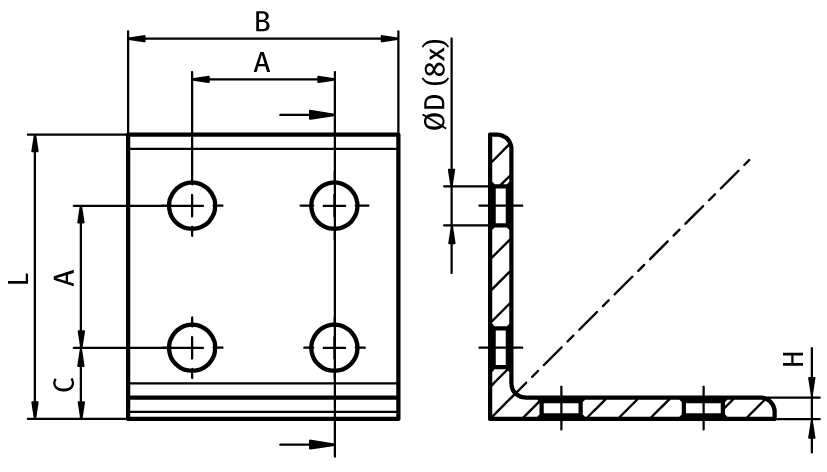

Part #	Version	H (mm)	A (mm)	B (mm)	C (mm)	L (mm)	ØD (mm)
093WD4040	40 / 40	3.0	20.0	38.0	10.0	40.0	5.5
093WD5151	50.8 / 50.8 - 2" / 2"	4.0	25.4 (1")	48.0 (1.89")	12.7 (0.5")	50.0 (1.97")	7.0
093WD6060	60 / 60	5.0	30.0	57.0	15.0	60.0	7.0
093WD7676	76.2 / 76.2 - 3" / 3"	6.0	38.1 (1.5")	72.0 (2.8")	19.0 (0.75")	76.2 (3")	9.0
093WD8080	80 / 80	6.0	40.0	76.0	20.0	80.0	9.0
093WD9090	90 / 90	6.0	45.0	86.0	22.5	90.0	9.0
