Connection Plate AL L 12 Hole, 2 Slots Version

Product information "Connection Plate AL L 12 Hole, 2 Slots Version"

Delivery Countries:
Worldwide

Description:

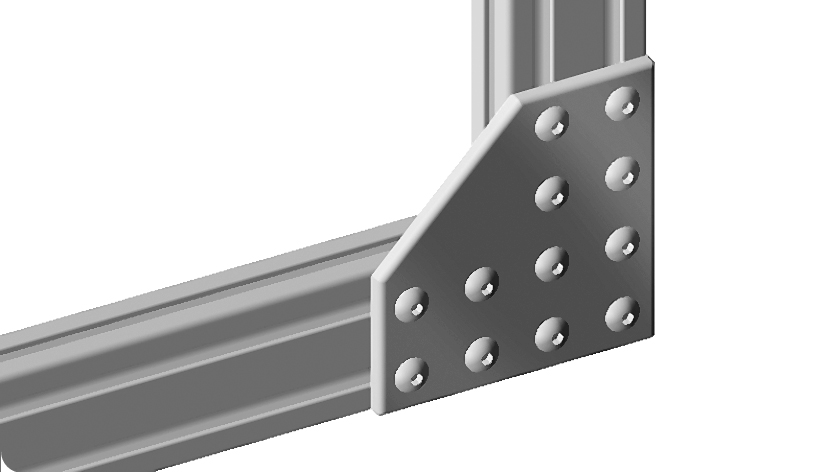

To connect two aluminum profiles at right angles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Zolltarifnummer:
76169990990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 158.0

Variants

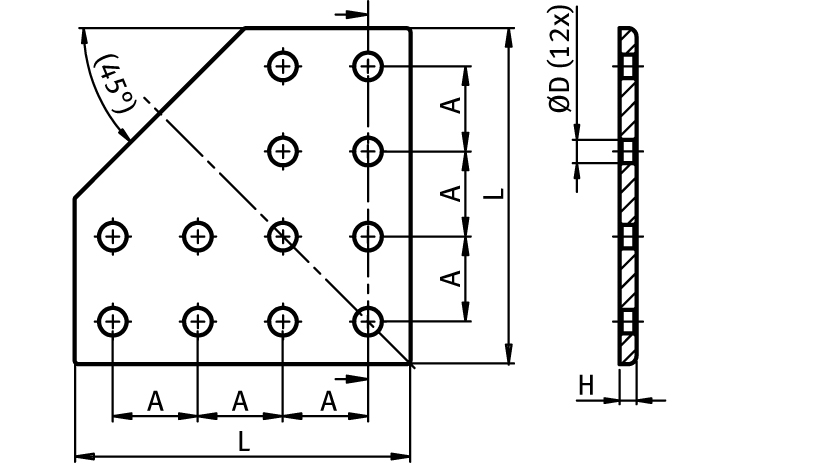

Product ID ØD (mm) H (mm) Version L (mm) A (mm)
093VL102102D 7.0 4.0 102 / 102 - 4" / 4" 99.0 (3.9") 25.4 (1")

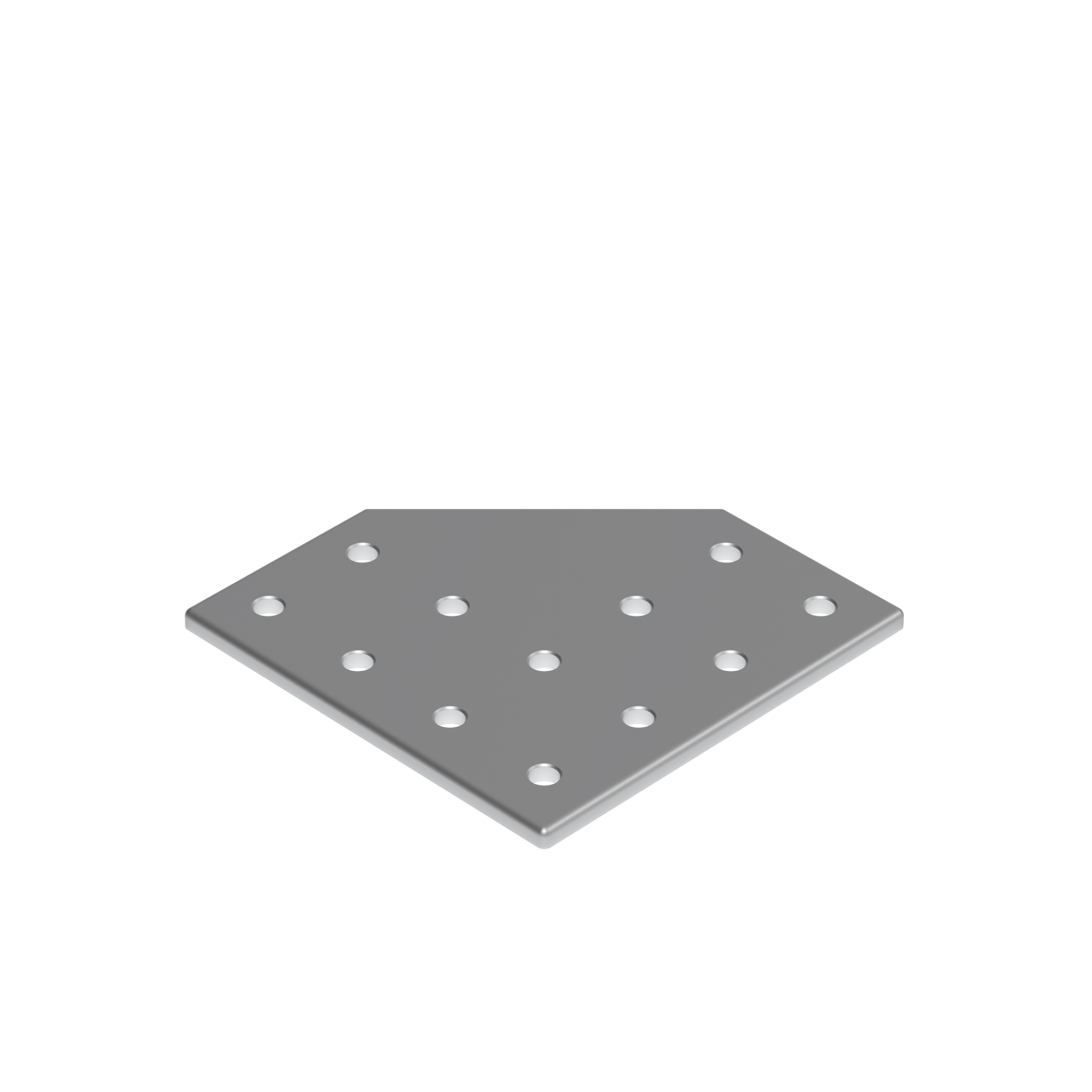

093VL120120D 7.0 5.0 120 / 120 118.5 30.0
093VL152152D 9.0 6.0 152 / 152 - 5.98" / 5.98" 150.0 (5.9") 38.1 (1.5")
093VL160160D 9.0 6.0 160 / 160 158.0 40.0
093VL180180D 9.0 6.0 180 / 180 178.0 45.0
093VL8080D 5.5 4.0 80 / 80 79.0 20.0
