Connection Plate AL L 5 Hole, 1 Slot Version

Product information "Connection Plate AL L 5 Hole, 1 Slot Version"

Delivery Countries:
Worldwide

Description:

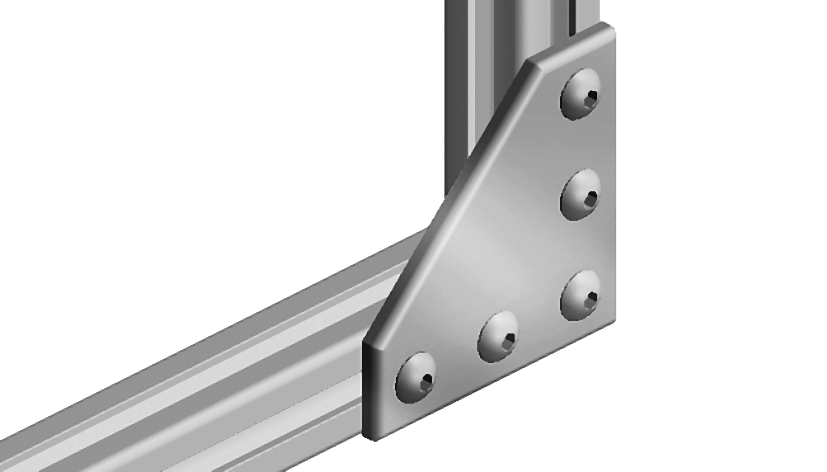

To connect two aluminum profiles at right angles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Zolltarifnummer:
76169990990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 78.0

Variants

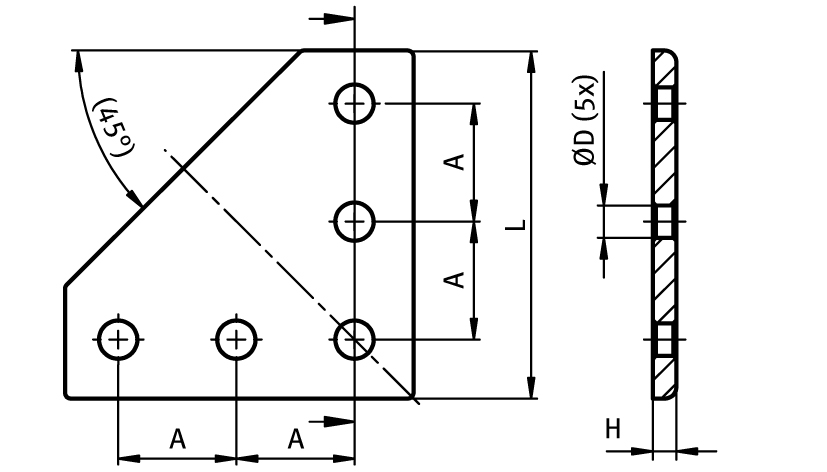

Product ID L (mm) H (mm) Version ØD (mm) A (mm)
093VL114114 112.0 (4.4") 6.0 114 / 114 - 4.4" / 4.4" 9.0 38.1 (1.5")
093VL120120 118.0 6.0 120 / 120 9.0 40.0
093VL135135 133.0 6.0 135 / 135 9.0 45.0
093VL6060 59.0 4.0 60 / 60 5.5 20.0
093VL7676 74.0 (2.9") 4.0 76.2 / 76.2 - 3" / 3" 7.0 25.4 (1")

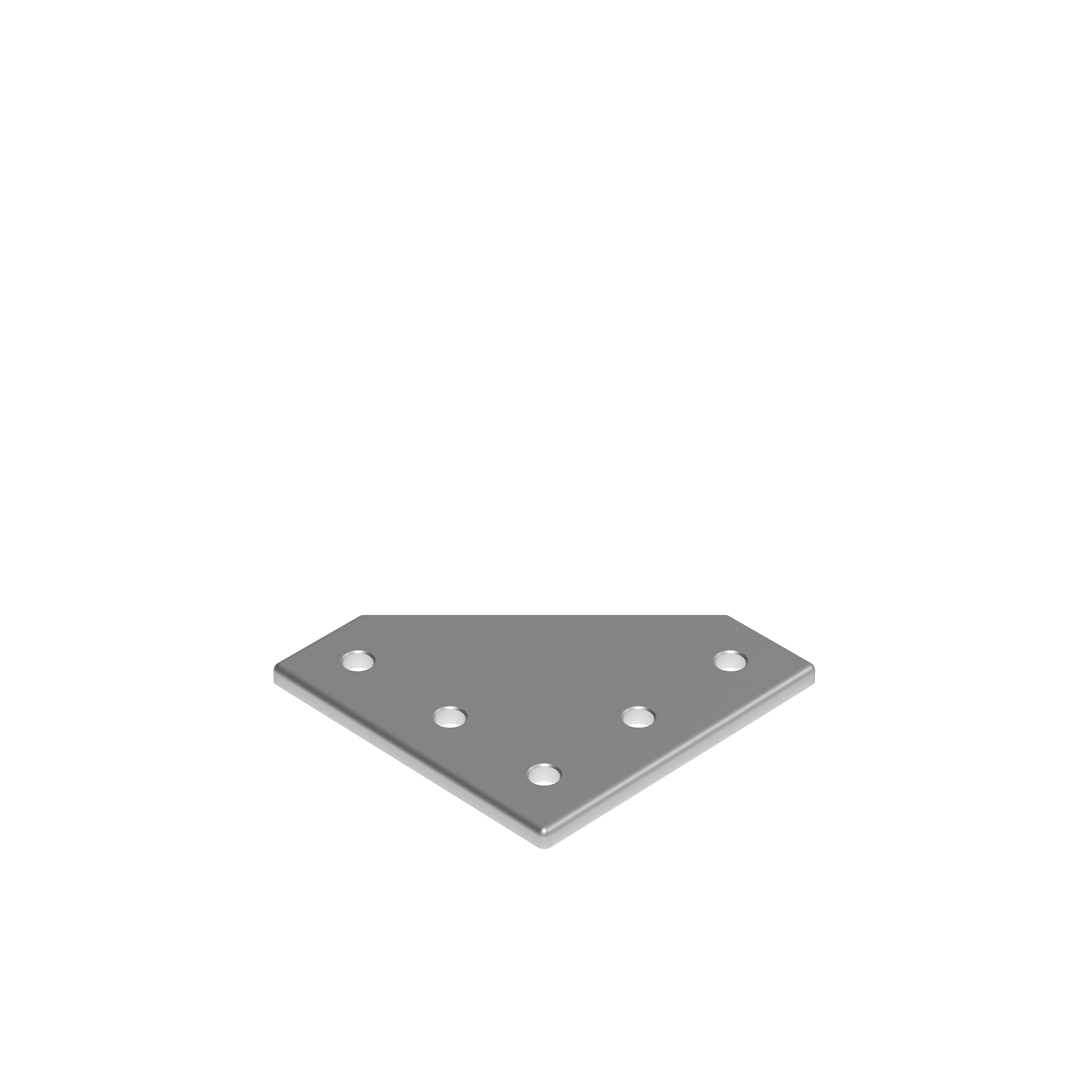

093VL9090 88.5 5.0 90 / 90 7.0 30.0
