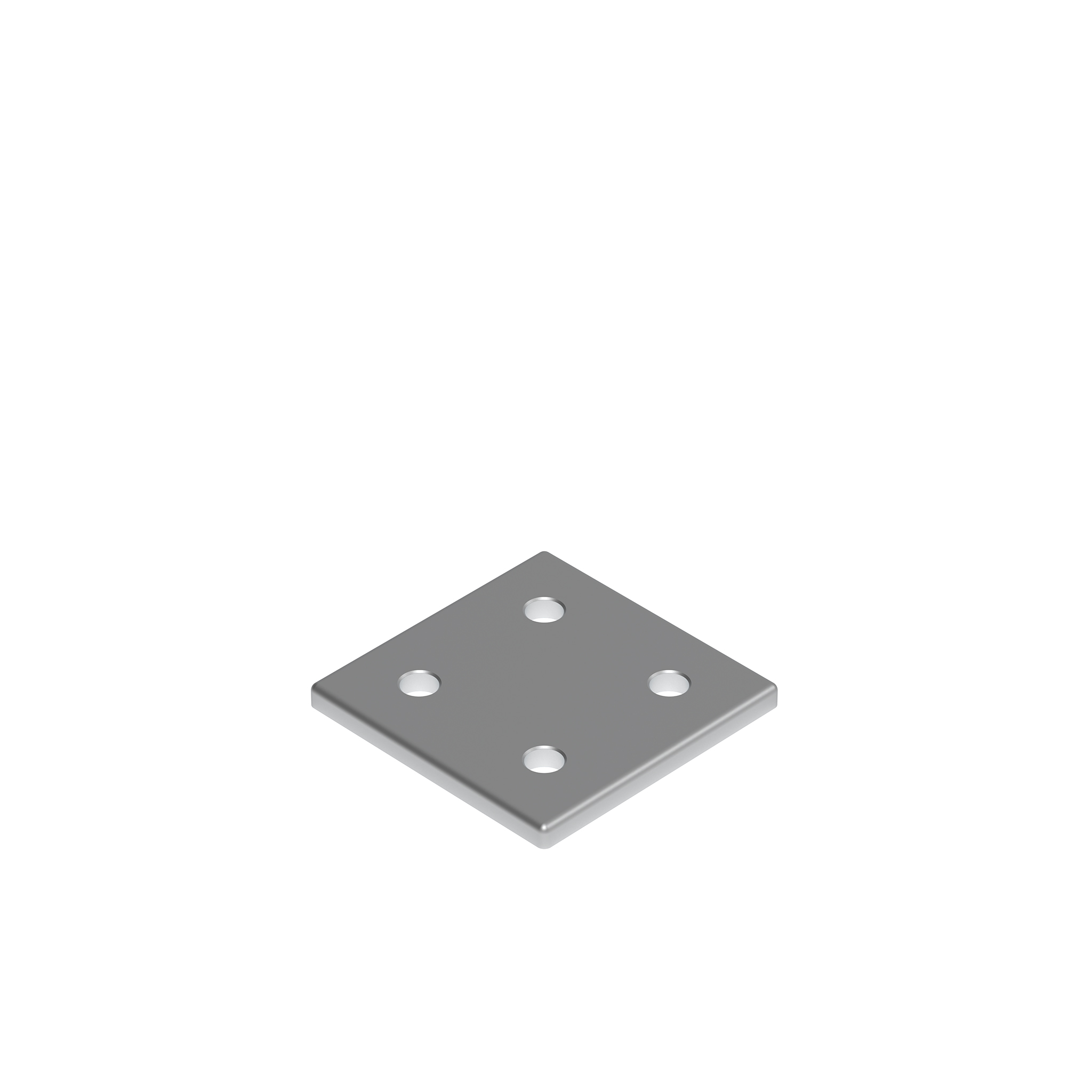

Connection Plate AL Quadrangular 4 Hole, 1 Slot Version

Product information "Connection Plate AL Quadrangular 4 Hole, 1 Slot Version"

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Zolltarifnummer:
76169990990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum
Pack Quantity: 10 pieces
Weight (g): 90.0

Variants

Product ID Version L (mm) H (mm) A (mm) ØD (mm)
093VA4040 40 / 40 38.0 4.0 20.0 5.5
093VA5151 50.8 / 50.8 - 2" / 2" 48.0 (1.89") 4.0 25.4 (1") 7.0
093VA6060 60 / 60 57.0 5.0 30.0 7.0
093VA7676 76.2 / 76.2 - 3" / 3" 72.0 (2.8") 6.0 38.1 (1.5") 9.0
093VA8080 80 / 80 76.0 6.0 40.0 9.0
093VA9090 90 / 90 86.0 6.0 45.0 9.0
