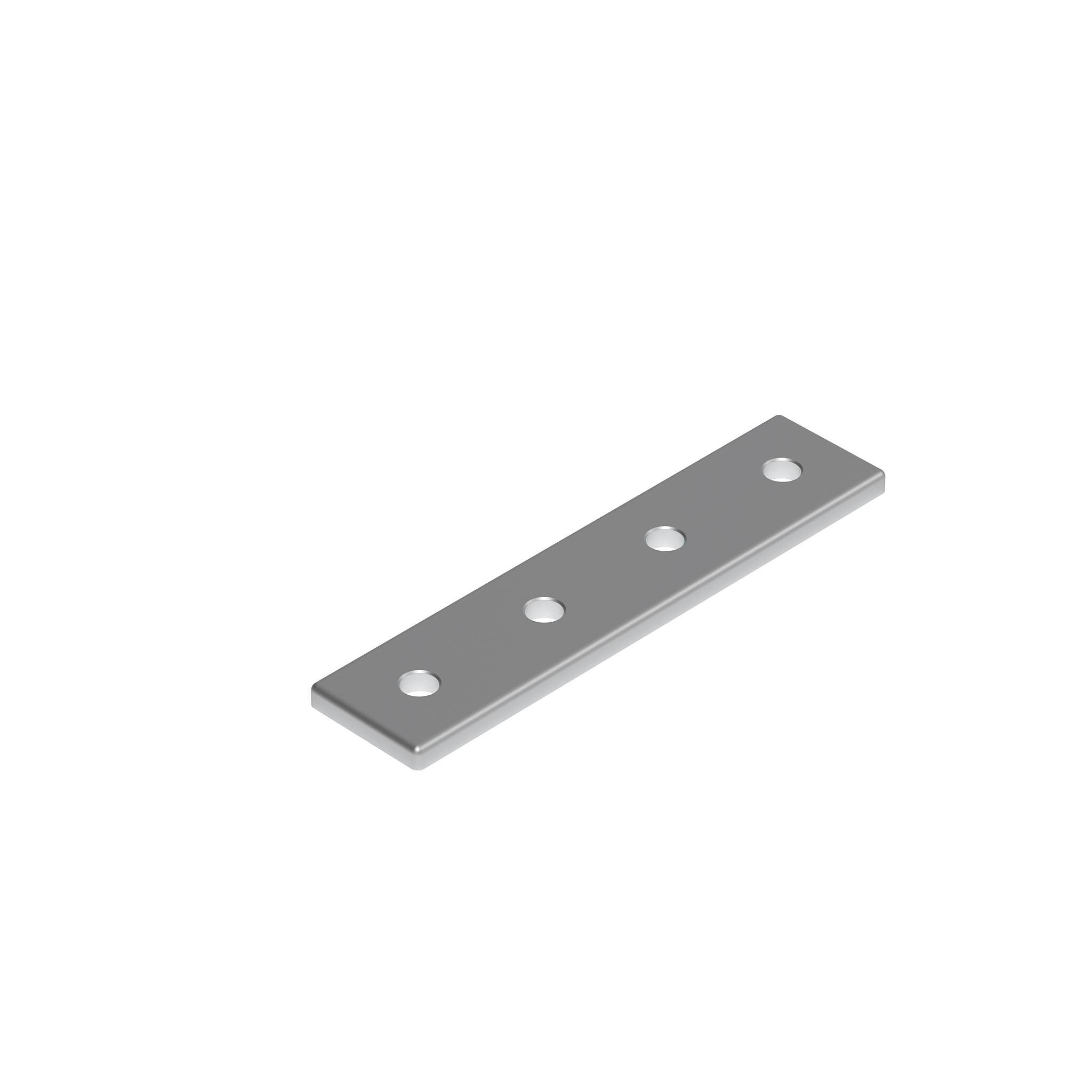

Connection Plate AL Rectangular 4 Hole, 1 Slot Version

Product information "Connection Plate AL Rectangular 4 Hole, 1 Slot Version"

Delivery Countries:
Worldwide / North America

Description:
To connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	86.0
ERP Number:	118295

Variants

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)
093VA2080	20 / 80	4.0	20.0	18.0	78.0	5.5
093VA30120	30 / 120	5.0	30.0	27.0	117.0	7.0
093VA38152	38 / 152 - 1.5" / 5.98"	6.0	38.1 (1.5")	34.0 (1.34")	148.0 (5.8")	9.0
093VA40160	40 / 160	6.0	40.0	36.0	156.0	9.0
093VA45180	45 / 180	6.0	45.0	41.0	176.0	9.0
093VA25102	25 / 102 - 1" / 4"	4.0	25.4 (1")	23.0 (0.9")	98.0 (3.858")	7.0
