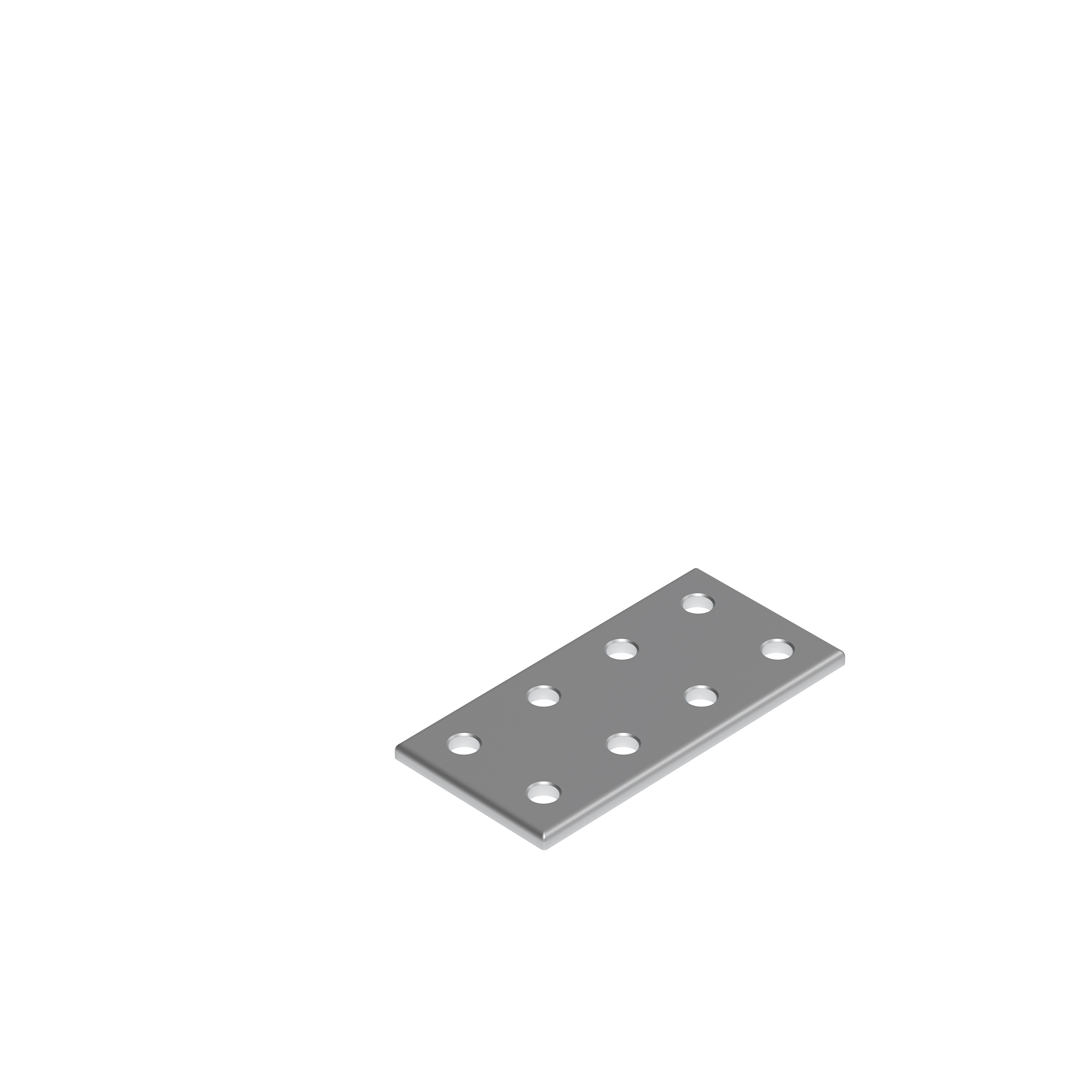

Connection Plate AL Rectangular 8 Hole, 2 Slots Version

Product information "Connection Plate AL Rectangular 8 Hole, 2 Slots Version"

Delivery Countries:
Worldwide / North America

Description:
To connect two aluminum profiles

Material:
Aluminum

Specials:
Other surfaces, other colors on request

Surface:
Anodized

Pack Quantity:	10 pieces
Model:	Aluminum
Weight (g):	47.0
ERP Number:	119493

Variants

Part #	Version	H (mm)	A (mm)	B (mm)	L (mm)	ØD (mm)
093VD4080	40 / 80	4.0	20.0	36.0	76.0	5.5
093VD51102	50.8 / 101.6 - 2" / 4"	4.0	25.4 (1")	48.0 (1.89")	98.0 (3.858")	7.0
093VD60120	60 / 120	5.0	30.0	57.0	117.0	7.0
093VD80160	80 / 160	6.0	40.0	76.0	156.0	9.0
093VD90180	90 / 180	6.0	45.0	86.0	176.0	9.0
093VD76152	76.2 / 152 - 3" / 5.98"	6.0	38.1 (1.5")	72.0	148.0 (5.8")	9.0
